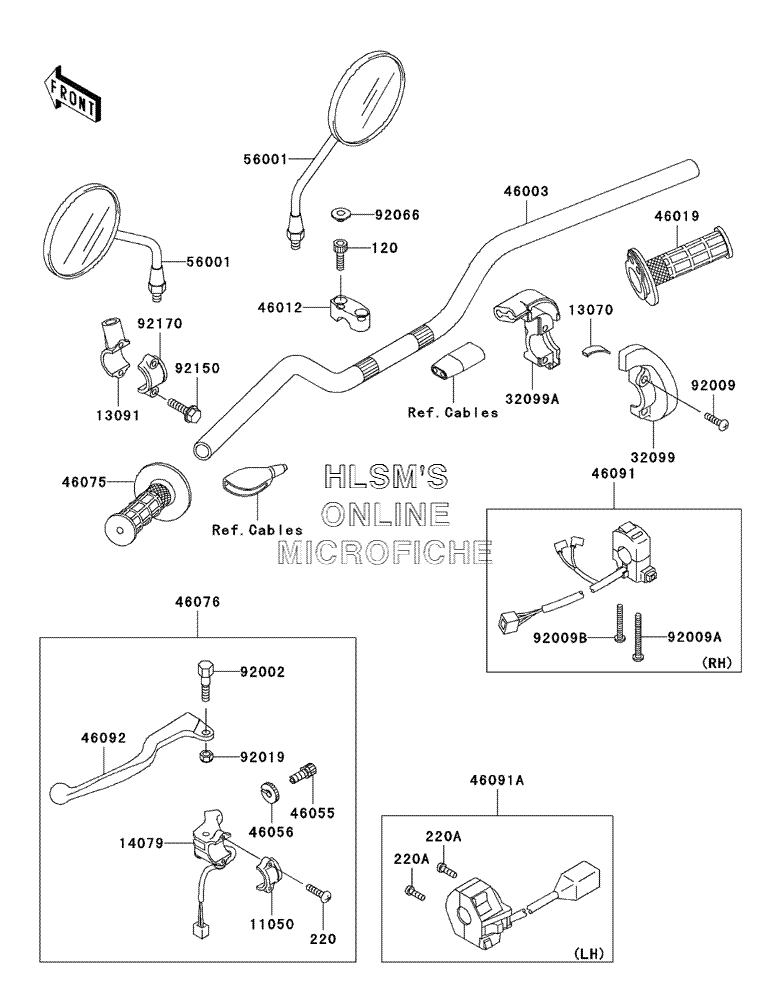

HANDLEBAR для Kawasaki Super Sherpa - 2000 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0830 BOLT, SOCKET, 8X30 (BLACK)
    BOLT, SOCKET, 8X30 (BLACK)
  • 220
    220B0514 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220C0530 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 11050
    11050-1310 BRACKET, LEVER HOLDER
    BRACKET, LEVER HOLDER
  • 13070
    13070-1274 GUIDE, THROTTLE CABLE
    GUIDE, THROTTLE CABLE
  • 13091
    13091-1995 HOLDER, MIRROR
    HOLDER, MIRROR
  • 14079
    14079-1122 HOLDER, ASSY, CLUTCH CABLE
    HOLDER, ASSY, CLUTCH CABLE
  • 32099
    32099-1146 CASE, THROTTLE, UPPER
    CASE, THROTTLE, UPPER
  • 32099A
    32099-1186 CASE, THROTTLE, LOWER
    CASE, THROTTLE, LOWER
  • 46003
    46003-1465 HANDLE
    HANDLE
  • 46012
    46012-1276 HOLDER, HANDLE, UPPER
    HOLDER, HANDLE, UPPER
  • 46019
    46019-1093 GRIP, ASSY, THROTTLE
    GRIP, ASSY, THROTTLE
  • 46055
    46055-009 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 46056
    46056-006 NUT, CABLE ADJUST
    NUT, CABLE ADJUST
  • 46075
    46075-1149 GRIP (LEFT)
    GRIP (LEFT)
  • 46076
    46076-1211 LEVER, ASSY, GRIP, CLUTCH
    LEVER, ASSY, GRIP, CLUTCH
  • 46091
    46091-1678 HOUSING, ASSY, CONTROL (RIGHT)
    HOUSING, ASSY, CONTROL (RIGHT)
  • 46091A
    46091-1690 HOUSING, ASSY, CONTROL (LEFT)
    HOUSING, ASSY, CONTROL (LEFT)
  • 46092
    46092-1159 LEVER, GRIP, CLUTCH
    LEVER, GRIP, CLUTCH
  • 56001
    56001-1339 MIRROR, ASSY
    MIRROR, ASSY
  • 92002
    92002-1150 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92009
    92009-1699 SCREW, 5X16
    SCREW, 5X16
  • 92009A
    92009-1803 SCREW, 4X45
    SCREW, 4X45
  • 92009B
    92009-1804 SCREW, 4X32
    SCREW, 4X32
  • 92019
    92019-008 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
  • 92066
    92066-1277 PLUG
    PLUG
  • 92150
    92150-1474 BOLT
    BOLT
  • 92170
    92170-1226 CLAMP, LEVER HOLDER
    CLAMP, LEVER HOLDER
