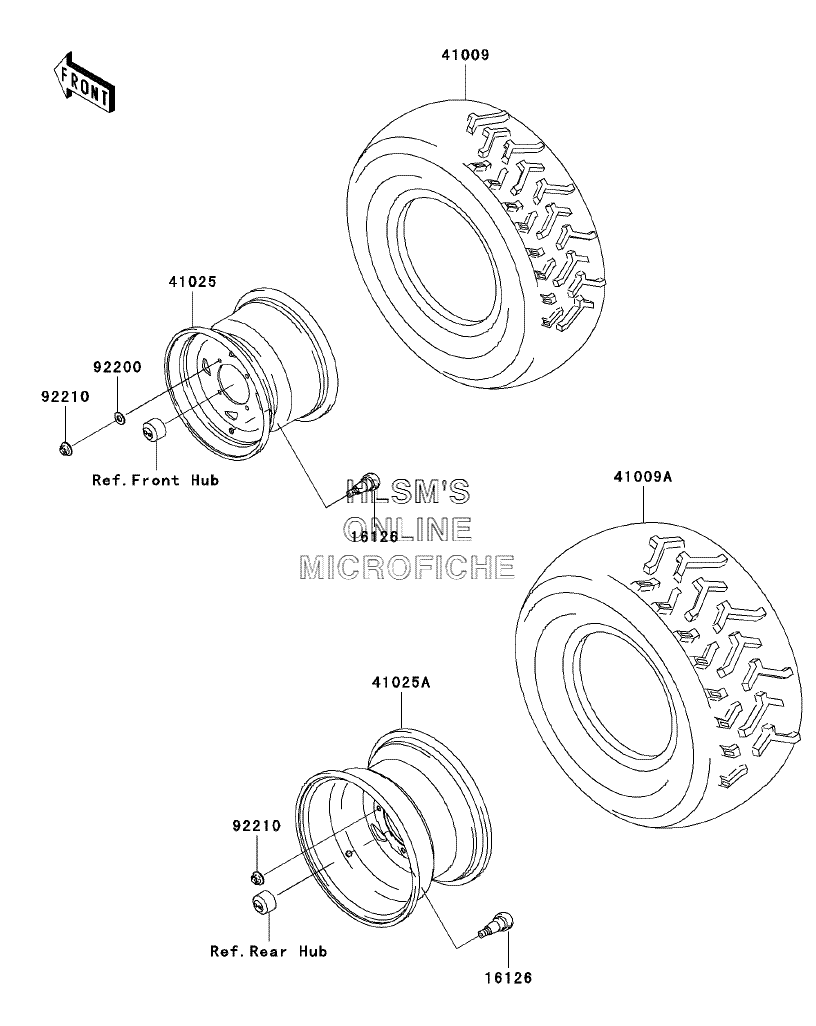

WHEELS/TIRES для Kawasaki Prairie 700 4x4 (KVF700A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1612616126-4001 VALVEVALVE
-
4100941009-1117 TIRE, FRONT AT25X8-12, KT121A(D)TIRE, FRONT AT25X8-12, KT121A(D)
-
41009A41009-1380 TIRE, REAR AT25X10-12, KT127ATIRE, REAR AT25X10-12, KT127A
-
4102541025-1375-379 RIM, FRONT 12X6.0 (M.GRAYSTONE)RIM, FRONT 12X6.0 (M.GRAYSTONE)
-
41025A41025-1426-379 RIM, REAR 12X7.5AT, (M.GRAYSTONE)RIM, REAR 12X7.5AT, (M.GRAYSTONE)
-
9220092200-1595 WASHER, 10.5X25X1.6WASHER, 10.5X25X1.6
-
9221092210-1325 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
