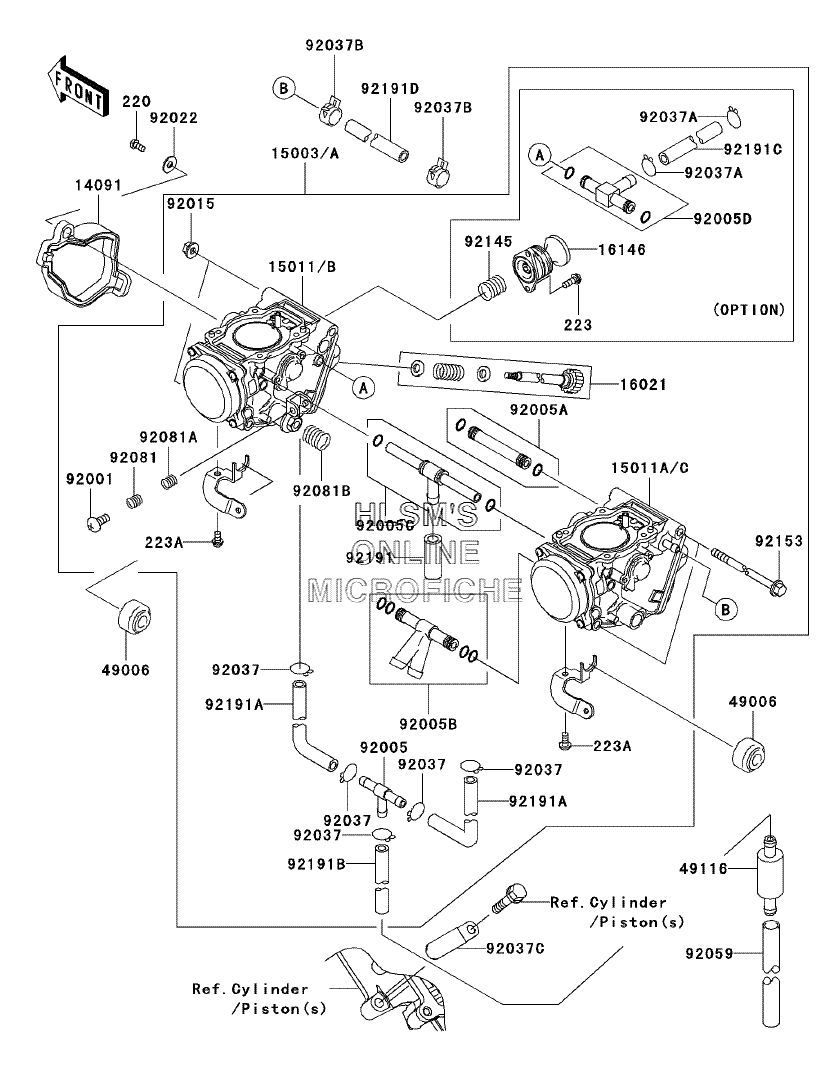

CARBURETOR (USA ONLY) для Kawasaki Prairie 700 4x4 (KVF700A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 14091
    14091-1196 COVER, THROTTLE CABLE
    COVER, THROTTLE CABLE
  • 15003
    15003-0007 CARBURETOR-ASSY, PRIMARY PUMP (OPTION)
    CARBURETOR-ASSY, PRIMARY PUMP (OPTION)
  • 15003A
    15003-0092 CARBURETOR-ASSY
    CARBURETOR-ASSY
  • 15011
    15011-0019 CARBURETOR, FRONT
    CARBURETOR, FRONT
  • 15011A
    15011-0020 CARBURETOR, REAR
    CARBURETOR, REAR
  • 15011B
    15011-0098 CARBURETOR, FRONT
    CARBURETOR, FRONT
  • 15011C
    15011-0099 CARBURETOR, REAR
    CARBURETOR, REAR
  • 16021
    16021-1238 SCREW-THROTTLE STOP
    SCREW-THROTTLE STOP
  • 16146
    16146-1225 COVER-ASSY, PRIMING (OPTION)
    COVER-ASSY, PRIMING (OPTION)
  • 49006
    49006-1353 BOOT, STARTER CABLE
    BOOT, STARTER CABLE
  • 49116
    49116-1126 VALVE-ASSY
    VALVE-ASSY
  • 92001
    92001-1998 BOLT, THROTTLE ADJUST
    BOLT, THROTTLE ADJUST
  • 92005
    92005-1112 FITTING, FUEL, T-TYPE
    FITTING, FUEL, T-TYPE
  • 92005A
    92005-1375 FITTING
    FITTING
  • 92005B
    92005-1376 FITTING
    FITTING
  • 92005C
    92005-1385 FITTING
    FITTING
  • 92005D
    92005-1393 FITTING (OPTION)
    FITTING (OPTION)
  • 92015
    92015-1259 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
  • 92022
    92022-1380 WASHER, 5.2X13X1
    WASHER, 5.2X13X1
  • 92037
    92037-1201 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-1201 CLAMP, TUBE (OPTION)
    CLAMP, TUBE (OPTION)
  • 220
    220B0408 SCREW-PAN-CROS, 4X8
    SCREW-PAN-CROS, 4X8
  • 223
    223C0412 SCREW-PAN-WS-CROS, 4X12 (OPTION)
    SCREW-PAN-WS-CROS, 4X12 (OPTION)
  • 223A
    223D0408 SCREW-PAN-WS-CROS, 4X8
    SCREW-PAN-WS-CROS, 4X8
  • 92037B
    92037-1505 CLAMP, TUBE
    CLAMP, TUBE
  • 92037C
    92037-1539 CLAMP, L=45
    CLAMP, L=45
  • 92059
    92059-1736 TUBE, 7X10X100
    TUBE, 7X10X100
  • 92081
    92081-1620 SPRING
    SPRING
  • 92081A
    92081-1621 SPRING, THROTTLE ADJUST LOWER
    SPRING, THROTTLE ADJUST LOWER
  • 92081B
    92081-1622 SPRING, THROTTLE ADJUST CENTER
    SPRING, THROTTLE ADJUST CENTER
  • 92145
    92145-1451 SPRING, PRIMING (OPTION)
    SPRING, PRIMING (OPTION)
  • 92153
    92153-1068 BOLT, 5X143
    BOLT, 5X143
  • 92191
    92191-1672 TUBE, 7X11X25
    TUBE, 7X11X25
  • 92191A
    92191-1673 TUBE, 4.5X8X65
    TUBE, 4.5X8X65
  • 92191B
    92191-1674 TUBE, 4.5X8X420
    TUBE, 4.5X8X420
  • 92191C
    92191-1676 TUBE, 4.5X8.5X35 (OPTION)
    TUBE, 4.5X8.5X35 (OPTION)
  • 92191D
    92191-1694 TUBE, 5.3X10.3X200
    TUBE, 5.3X10.3X200
