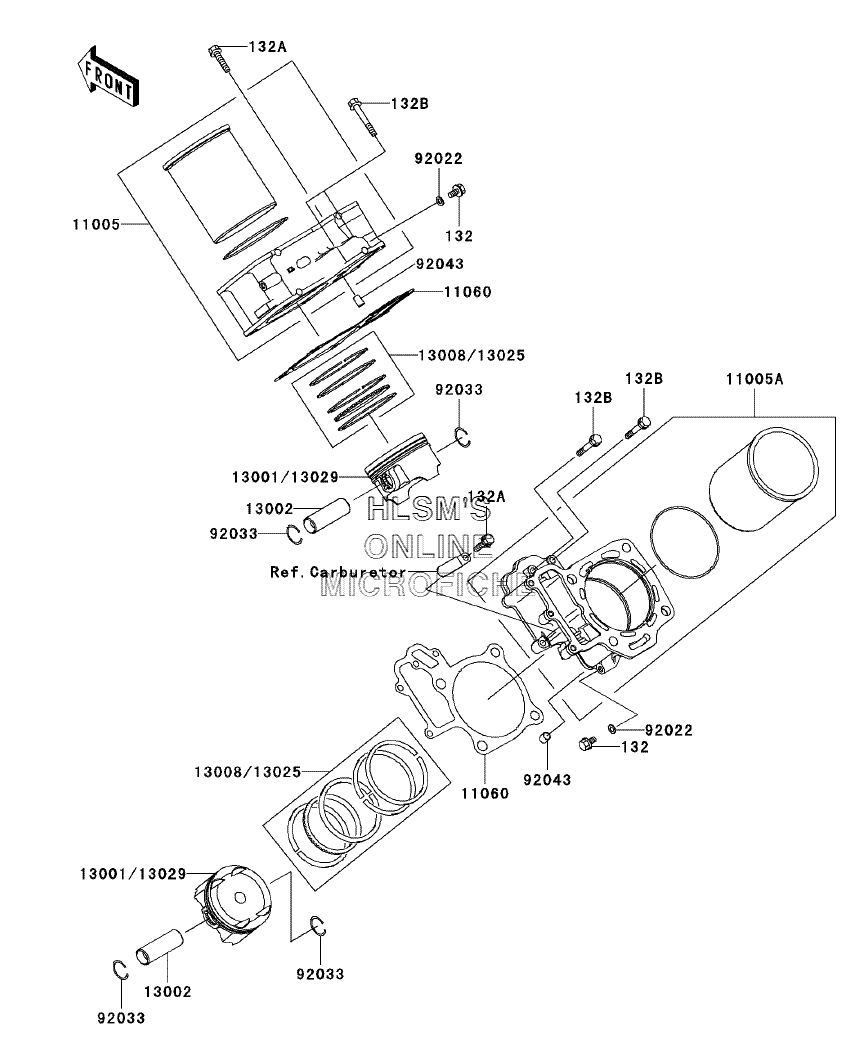

CYLINDER/PISTON(S) для Kawasaki Prairie 700 4x4 (KVF700A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132Y0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 132A
    132Y0630 BOLT-FLANGED-SMALL, 6X30
    BOLT-FLANGED-SMALL, 6X30
  • 132B
    132Y0640 BOLT-FLANGED-SMALL, 6X40
    BOLT-FLANGED-SMALL, 6X40
  • 11005
    11005-1990 CYLINDER-ENGINE, FRONT
    CYLINDER-ENGINE, FRONT
  • 11005A
    11005-1992 CYLINDER-ENGINE, REAR
    CYLINDER-ENGINE, REAR
  • 11060
    11060-1965 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 13001
    13001-1658 PISTON-ENGINE (STD)
    PISTON-ENGINE (STD)
  • 13002
    13002-1060 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-1215 RING-SET-PISTON (STD)
    RING-SET-PISTON (STD)
  • 13025
    13025-0005 RING-SET-PISTON (O/S 0.50)
    RING-SET-PISTON (O/S 0.50)
  • 13029
    13029-0007 PISTON-ENGINE (O/S 0.50)
    PISTON-ENGINE (O/S 0.50)
  • 92022
    92022-304 WASHER, 6.2X11X1
    WASHER, 6.2X11X1
  • 92033
    92033-1207 RING-SNAP
    RING-SNAP
  • 92043
    92043-4009 PIN, 10.1X12X14
    PIN, 10.1X12X14
