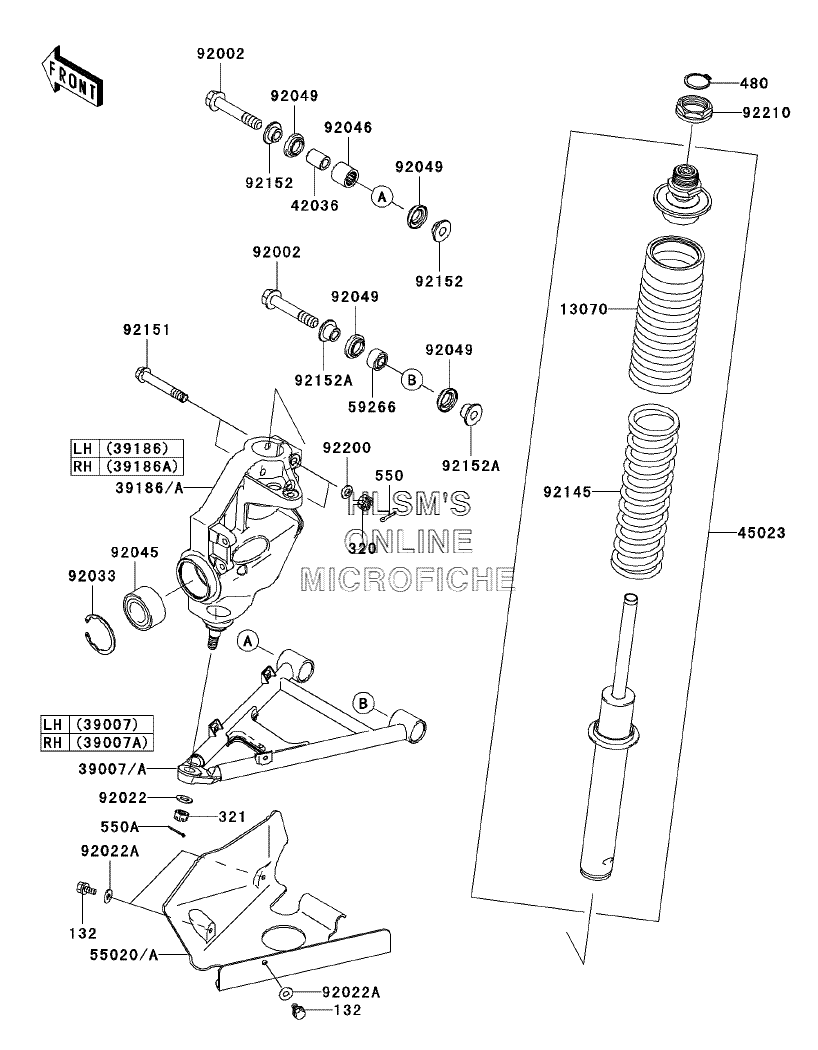

SUSPENSION для Kawasaki Prairie 700 4x4 (KVF700A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 320
    320H1000 NUT-CASTLE
    NUT-CASTLE
  • 321
    321H1200 NUT-CASTLE, 12MM
    NUT-CASTLE, 12MM
  • 480
    480J3200 CIRCLIP-TYPE-C, 32MM
    CIRCLIP-TYPE-C, 32MM
  • 550
    550D2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 550A
    550D3025 PIN-COTTER, 3.0X25
    PIN-COTTER, 3.0X25
  • 13070
    13070-1383 GUIDE, STRUT
    GUIDE, STRUT
  • 39007
    39007-0058 ARM-SUSPENSION (LEFT)
    ARM-SUSPENSION (LEFT)
  • 39007A
    39007-0059 ARM-SUSPENSION (RIGHT)
    ARM-SUSPENSION (RIGHT)
  • 39186
    39186-0041 KNUCKLE (LEFT)
    KNUCKLE (LEFT)
  • 39186A
    39186-0042 KNUCKLE (RIGHT)
    KNUCKLE (RIGHT)
  • 42036
    42036-1365 SLEEVE, 12X20X26.7
    SLEEVE, 12X20X26.7
  • 45023
    45023-0004 STRUT
    STRUT
  • 55020
    55020-1768 GUARD, FRONT AXLE (LEFT)
    GUARD, FRONT AXLE (LEFT)
  • 55020A
    55020-1769 GUARD, FRONT AXLE (RIGHT)
    GUARD, FRONT AXLE (RIGHT)
  • 59266
    59266-1118 JOINT-BALL
    JOINT-BALL
  • 92002
    92002-1861 BOLT, FLANGED, 12X67
    BOLT, FLANGED, 12X67
  • 92022
    92022-1065 WASHER, 12.3X22X1.6
    WASHER, 12.3X22X1.6
  • 92022A
    92022-1344 WASHER, 7X16X1.2
    WASHER, 7X16X1.2
  • 92033
    92033-1274 RING-SNAP, 55MM
    RING-SNAP, 55MM
  • 92045
    92045-1448 BEARING-BALL, 30BWD08A
    BEARING-BALL, 30BWD08A
  • 92046
    92046-1290 BEARING-NEEDLE, TA202725ZE
    BEARING-NEEDLE, TA202725ZE
  • 92049
    92049-1539 SEAL-OIL, MF020N3
    SEAL-OIL, MF020N3
  • 92145
    92145-0009 SPRING, STRUT, K=1.1
    SPRING, STRUT, K=1.1
  • 92151
    92151-1709 BOLT, FLANGED, 10X65
    BOLT, FLANGED, 10X65
  • 92152
    92152-1295 COLLAR
    COLLAR
  • 92152A
    92152-1296 COLLAR
    COLLAR
  • 92200
    92200-1042 WASHER, 10.5X19X2.3
    WASHER, 10.5X19X2.3
  • 92210
    92210-1226 NUT, FLANGED, 35MM
    NUT, FLANGED, 35MM
