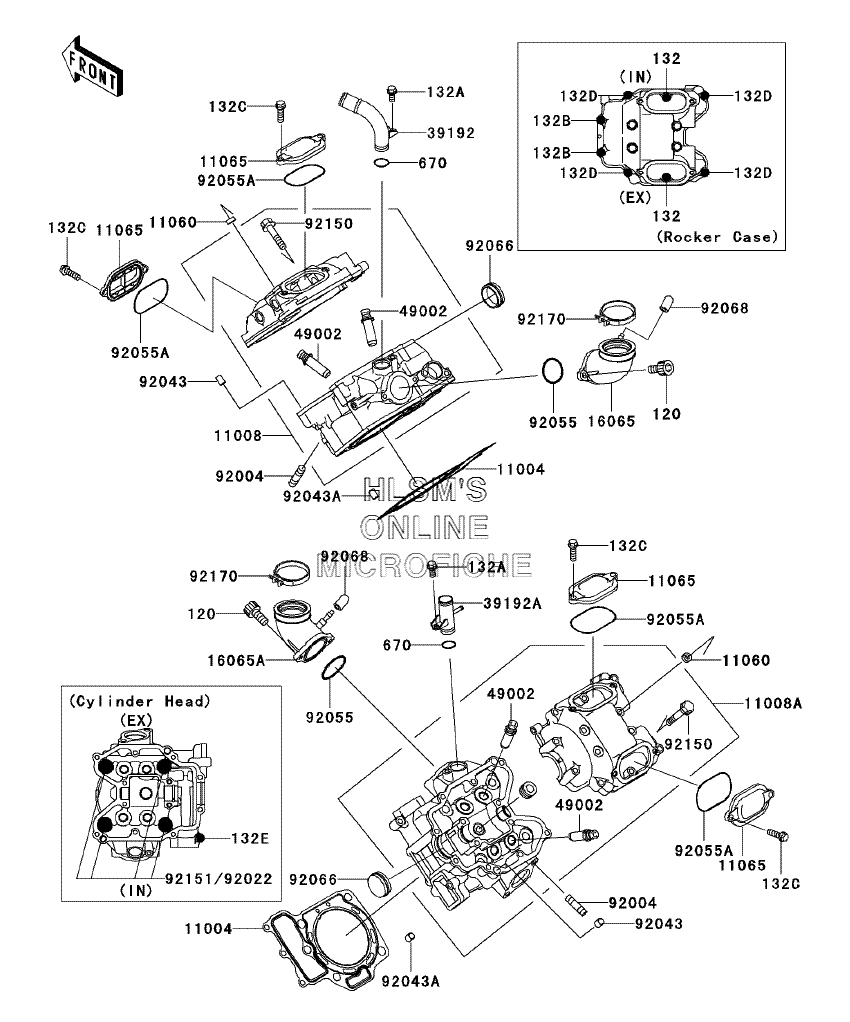

CYLINDER HEAD для Kawasaki Prairie 700 4x4 (KVF700A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 120
    120Z0620 BOLT-SOCKET, 6X20
    BOLT-SOCKET, 6X20
  • 132
    132H0625 BOLT-FLANGED-SMALL, 6X25
    BOLT-FLANGED-SMALL, 6X25
  • 132A
    132Y0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 132B
    132Y06130 BOLT-FLANGED-SMALL, 6X130
    BOLT-FLANGED-SMALL, 6X130
  • 132C
    132Y0620 BOLT-FLANGED-SMALL, 6X20
    BOLT-FLANGED-SMALL, 6X20
  • 132D
    132Y0630 BOLT-FLANGED-SMALL, 6X30
    BOLT-FLANGED-SMALL, 6X30
  • 132E
    132Y0695 BOLT-FLANGED-SMALL, 6X95
    BOLT-FLANGED-SMALL, 6X95
  • 670
    670B2016 O RING, 16MM
    O RING, 16MM
  • 11004
    11004-1384 GASKET-HEAD
    GASKET-HEAD
  • 11008
    11008-0030 HEAD-COMP-CYLINDER, FRONT
    HEAD-COMP-CYLINDER, FRONT
  • 11008A
    11008-0031 HEAD-COMP-CYLINDER, REAR
    HEAD-COMP-CYLINDER, REAR
  • 11060
    11060-1994 GASKET, 6.2X12X0.3
    GASKET, 6.2X12X0.3
  • 11065
    11065-1152 CAP, ROCKER CASE
    CAP, ROCKER CASE
  • 16065
    16065-1370 HOLDER-CARBURETOR
    HOLDER-CARBURETOR
  • 16065A
    16065-1371 HOLDER-CARBURETOR, REAR
    HOLDER-CARBURETOR, REAR
  • 39192
    39192-1132 PIPE-WATER
    PIPE-WATER
  • 39192A
    39192-1133 PIPE-WATER
    PIPE-WATER
  • 49002
    49002-1097 GUIDE-VALVE
    GUIDE-VALVE
  • 92004
    92004-1217 STUD, 8X22
    STUD, 8X22
  • 92022
    92022-1720 WASHER, 11.5X20.5X1.6
    WASHER, 11.5X20.5X1.6
  • 92043
    92043-1263 PIN, 6.2X8X14
    PIN, 6.2X8X14
  • 92043A
    92043-4009 PIN, 10.1X12X14
    PIN, 10.1X12X14
  • 92055
    92055-1295 RING-O, 38X1.9
    RING-O, 38X1.9
  • 92055A
    92055-1644 RING-O, 55.6X2.4
    RING-O, 55.6X2.4
  • 92066
    92066-1289 PLUG
    PLUG
  • 92068
    92068-006 PLUG, 12X25
    PLUG, 12X25
  • 92150
    92150-1302 BOLT, FLANGED, M6X55
    BOLT, FLANGED, M6X55
  • 92151
    92151-1917 BOLT, FLANGED, M10X150
    BOLT, FLANGED, M10X150
  • 92170
    92170-1722 CLAMP
    CLAMP
