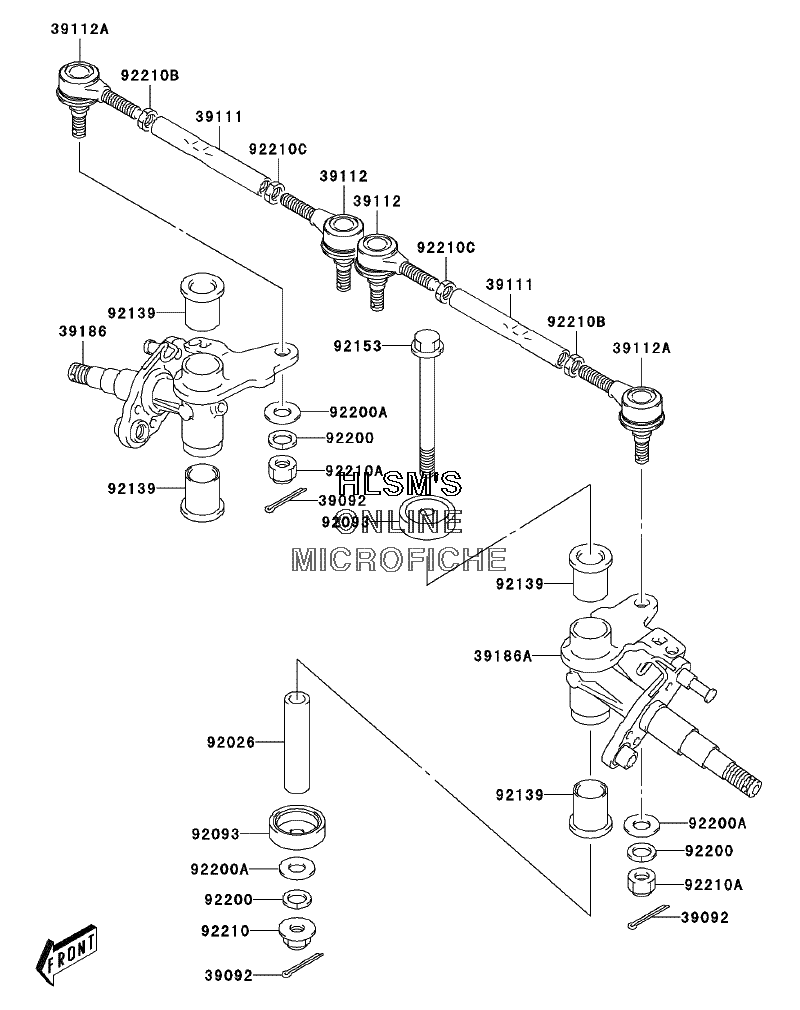

KNUCKLE ARM для Kawasaki KFX50 (KSF50A6F) - 2006 года выпуска`
-
№АртикулНазвание
-
3909239092-S005 PIN, HAIR, COTTERPIN, HAIR, COTTER
-
3911139111-S002 ROD, TIE, STEERINGROD, TIE, STEERING
-
3911239112-S001 RODEND, TIE (RIGHT)RODEND, TIE (RIGHT)
-
39112A39112-S002 RODEND, TIE (LEFT)RODEND, TIE (LEFT)
-
3918639186-S001 KNUCKLE (RIGHT)KNUCKLE (RIGHT)
-
39186A39186-S002 KNUCKLE (LEFT)KNUCKLE (LEFT)
-
9202692026-S060 SPACERSPACER
-
9209392093-S017 SEAL, KNUCKLE ARM DUSTSEAL, KNUCKLE ARM DUST
-
9213992139-S013 BUSHINGBUSHING
-
9215392153-S202 BOLT, KNUCKLE ARMBOLT, KNUCKLE ARM
-
9220092200-S096 WASHER, STEERING SHAFT (LOWER)WASHER, STEERING SHAFT (LOWER)
-
92200A92200-S097 WASHER, ROD, ENDWASHER, ROD, END
-
9221092210-S036 NUTNUT
-
92210A92210-S071 NUT, STEERING SHAFTNUT, STEERING SHAFT
-
92210B92210-S072 NUT, TIE, RODNUT, TIE, ROD
-
92210C92210-S073 NUT, TIE, RODNUT, TIE, ROD
