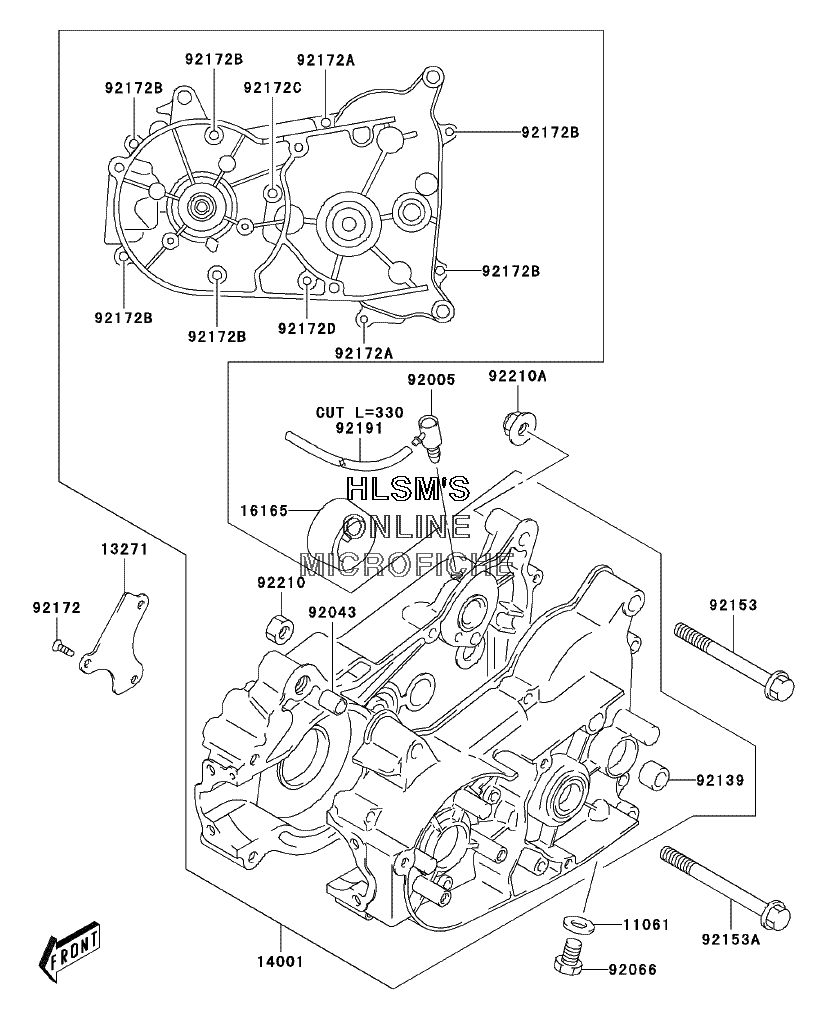

CRANKCASE для Kawasaki KFX50 (KSF50A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1106111061-S021 GASKET, 10X14X3.6GASKET, 10X14X3.6
-
1327113271-S025 PLATE, OIL RESERVOIRPLATE, OIL RESERVOIR
-
1400114001-S010 SET, CRANKCASESET, CRANKCASE
-
1616516165-S006 SEPARATOR, BREATHERSEPARATOR, BREATHER
-
9200592005-S003 FITTING, BREATHERFITTING, BREATHER
-
9204392043-S024 PIN, CRANKCASEPIN, CRANKCASE
-
9206692066-S020 PLUG, OIL DRAINPLUG, OIL DRAIN
-
9213992139-S009 BUSHING, COUNTER SHAFTBUSHING, COUNTER SHAFT
-
9215392153-S190 BOLT, L=70BOLT, L=70
-
92153A92153-S191 BOLT, L=75BOLT, L=75
-
9217292172-S098 SCREWSCREW
-
92172A92172-S117 SCREWSCREW
-
92172B92172-S118 SCREWSCREW
-
92172C92172-S119 SCREW, CRANKCASESCREW, CRANKCASE
-
92172D92172-S120 SCREW, CRANKCASESCREW, CRANKCASE
-
9219192191-S039 TUBE, BREATHERTUBE, BREATHER
-
9221092210-S001 NUTNUT
-
92210A92210-S029 NUTNUT
