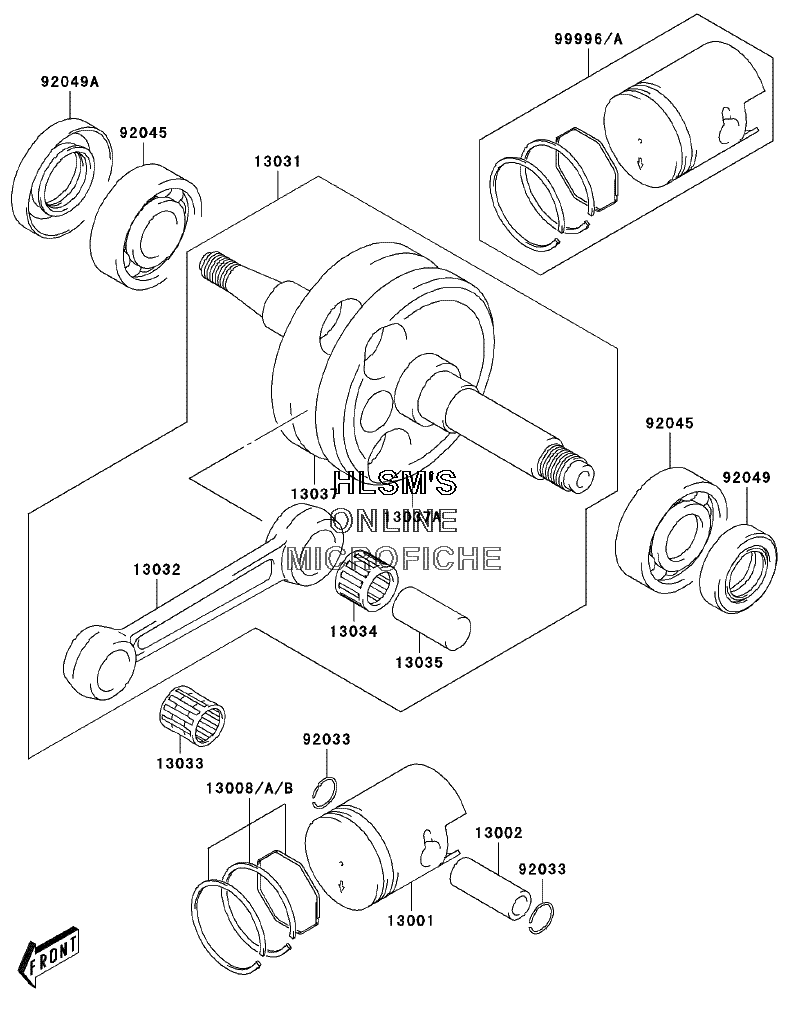

CRANKSHAFT для Kawasaki KFX50 (KSF50A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1300113001-S004 PISTON, ENGINEPISTON, ENGINE
-
1300213002-S004 PIN, PISTON, PISTONPIN, PISTON, PISTON
-
1300813008-S004 RING, SET, PISTON, STDRING, SET, PISTON, STD
-
13008A13008-S009 RING, SET, PISTON, O/S 0.50 (OPTION)RING, SET, PISTON, O/S 0.50 (OPTION)
-
13008B13008-S010 RING, SET, PISTON, O/S 1.00 (OPTION)RING, SET, PISTON, O/S 1.00 (OPTION)
-
1303113031-S004 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-S004 ROD, CONNECTINGROD, CONNECTING
-
1303313033-S001 BEARING, SMALL ENDBEARING, SMALL END
-
1303413034-S004 BEARING, BIG ENDBEARING, BIG END
-
1303513035-S004 PIN, CRANK, CRANKPIN, CRANK, CRANK
-
1303713037-S007 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
13037A13037-S008 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
9203392033-S024 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
-
9204592045-S035 BEARING, BALL, 17X40X12BEARING, BALL, 17X40X12
-
9204992049-S028 SEAL, OIL, CRANKSHAFT OIL (LEFT)SEAL, OIL, CRANKSHAFT OIL (LEFT)
-
92049A92049-S029 SEAL, OIL, CRANKSHAFT OIL (RIGHT)SEAL, OIL, CRANKSHAFT OIL (RIGHT)
-
9999699996-S008 PISTON, O/S 0.50 (OPTION)PISTON, O/S 0.50 (OPTION)
-
99996A99996-S009 PISTON, O/S 1.00 (OPTION)PISTON, O/S 1.00 (OPTION)
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- CARBURETOR
- CLUTCH
- CRANKCASE
- • CRANKSHAFT
- CYLINDER HEAD
- ENGINE COVER(S)
- FENDERS
- FRAME
- FRONT HUB
- FUEL FILTER
- FUEL TANK
- GASKET KIT
- GENERATOR
- HANDLE LEVER
- HANDLEBAR
- IGNITION SYSTEM
- KNUCKLE ARM
- LABELS
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OIL TANK
- PUBLICATIONS
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- STARTER - RECOIL
- STEERING SHAFT
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TRANSMISSION
