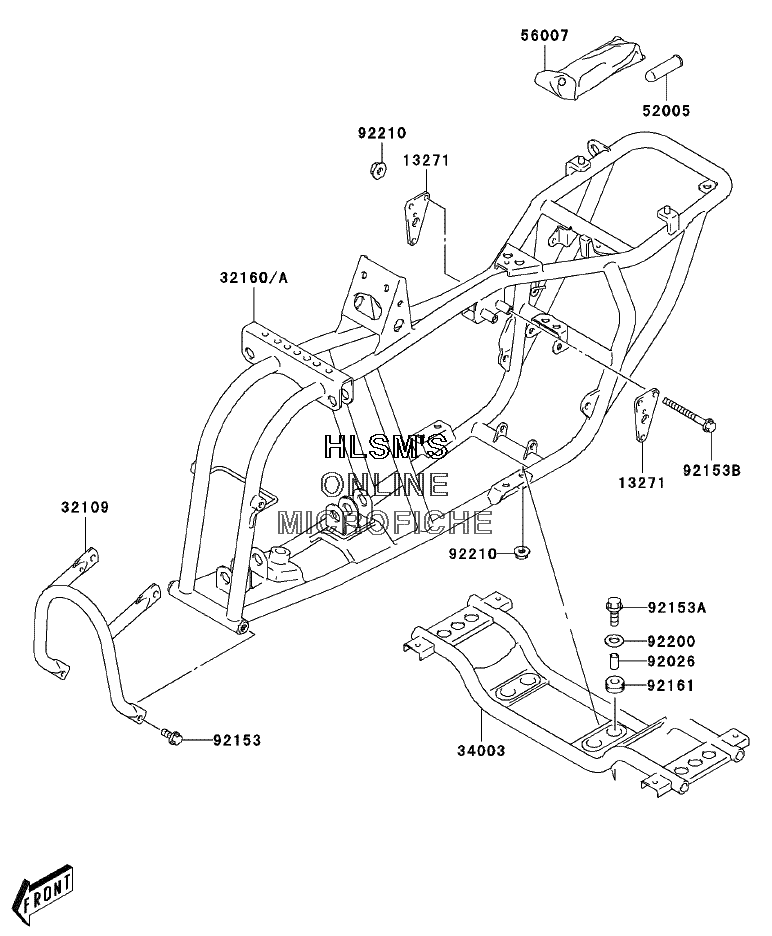

FRAME для Kawasaki KFX50 (KSF50A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1327113271-S030 PLATE, ENGINE MOUNTING (RIGHT)PLATE, ENGINE MOUNTING (RIGHT)
-
3210932109-S003 GRIP , FRAME (FRONT)GRIP , FRAME (FRONT)
-
3216032160-S004-503 FRAME, COMP (BLACK) (US ONLY)FRAME, COMP (BLACK) (US ONLY)
-
32160A32160-S007-503 FRAME, COMP (BLACK) (CANADA ONLY)FRAME, COMP (BLACK) (CANADA ONLY)
-
3400334003-S002 HOLDER, STEPHOLDER, STEP
-
5200552005-S005 GAUGE, AIRGAUGE, AIR
-
5600756007-S003 TOOL, KITTOOL, KIT
-
9202692026-S057 SPACER, FOOTRESTSPACER, FOOTREST
-
9215392153-S015 BOLTBOLT
-
92153A92153-S016 BOLTBOLT
-
92153B92153-S190 BOLT, L=70BOLT, L=70
-
9216192161-S066 DAMPER, FOOTRESTDAMPER, FOOTREST
-
9220092200-S093 WASHER, FOOTRESTWASHER, FOOTREST
-
9221092210-S029 NUTNUT
