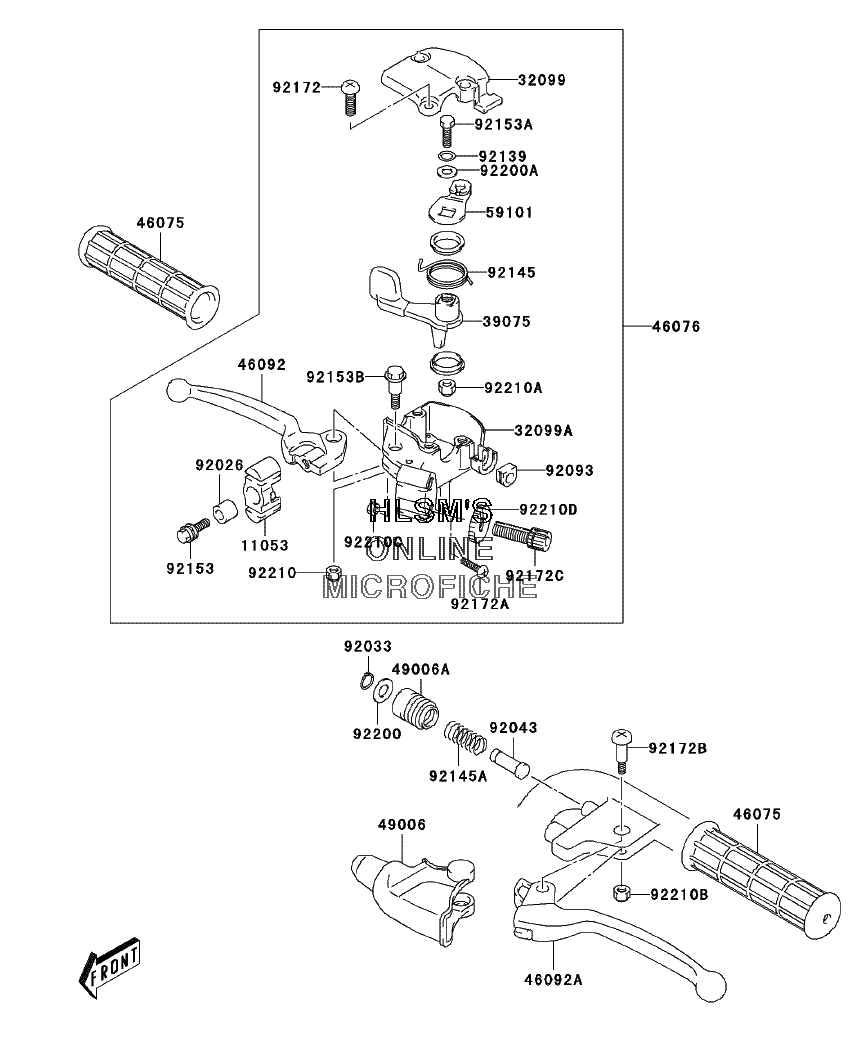

HANDLE LEVER для Kawasaki KFX50 (KSF50A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1105311053-S079 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
3209932099-S002 CASE (UPPER)CASE (UPPER)
-
32099A32099-S003 CASE (LOWER)CASE (LOWER)
-
3907539075-S001 LEVER, THROTTLELEVER, THROTTLE
-
4607546075-S004 GRIPGRIP
-
4607646076-S005 LEVER ASSY., GRIP, FRONT BRAKELEVER ASSY., GRIP, FRONT BRAKE
-
4609246092-S007 LEVER, GRIP, FRONT BRAKELEVER, GRIP, FRONT BRAKE
-
46092A46092-S008 LEVER, GRIP, BRAKELEVER, GRIP, BRAKE
-
4900649006-S014 BOOT, BRAKE LEVERBOOT, BRAKE LEVER
-
49006A49006-S015 BOOT, BRAKE LEVER STOPBOOT, BRAKE LEVER STOP
-
5910159101-S002 REEL, THROTTLE LEVERREEL, THROTTLE LEVER
-
9202692026-S059 SPACERSPACER
-
9203392033-S028 RING, SNAP, BRAKE LEVER STOPRING, SNAP, BRAKE LEVER STOP
-
9204392043-S028 PIN, BRAKE LEVER STOPPIN, BRAKE LEVER STOP
-
9209392093-S015 SEAL, THROTTLE CABLE DUSTSEAL, THROTTLE CABLE DUST
-
9213992139-S010 BUSHINGBUSHING
-
9214592145-S063 SPRING, RETURNSPRING, RETURN
-
92145A92145-S064 SPRING, BRAKE LEVERSPRING, BRAKE LEVER
-
9215392153-S012 BOLTBOLT
-
92153A92153-S127 BOLTBOLT
-
92153B92153-S455 BOLTBOLT
-
9217292172-S132 SCREWSCREW
-
92172A92172-S133 SCREWSCREW
-
92172B92172-S135 SCREW, BRAKE LEVERSCREW, BRAKE LEVER
-
92172C92172-S273 SCREWSCREW
-
9220092200-S003 WASHERWASHER
-
92200A92200-S004 WASHER, 6.5X18X1WASHER, 6.5X18X1
-
9221092210-S024 NUTNUT
-
92210A92210-S053 NUTNUT
-
92210B92210-S063 NUTNUT
-
92210C92210-S065 NUTNUT
-
92210D92210-S173 NUT, CABLE ADJUSTER LOCKNUT, CABLE ADJUSTER LOCK
