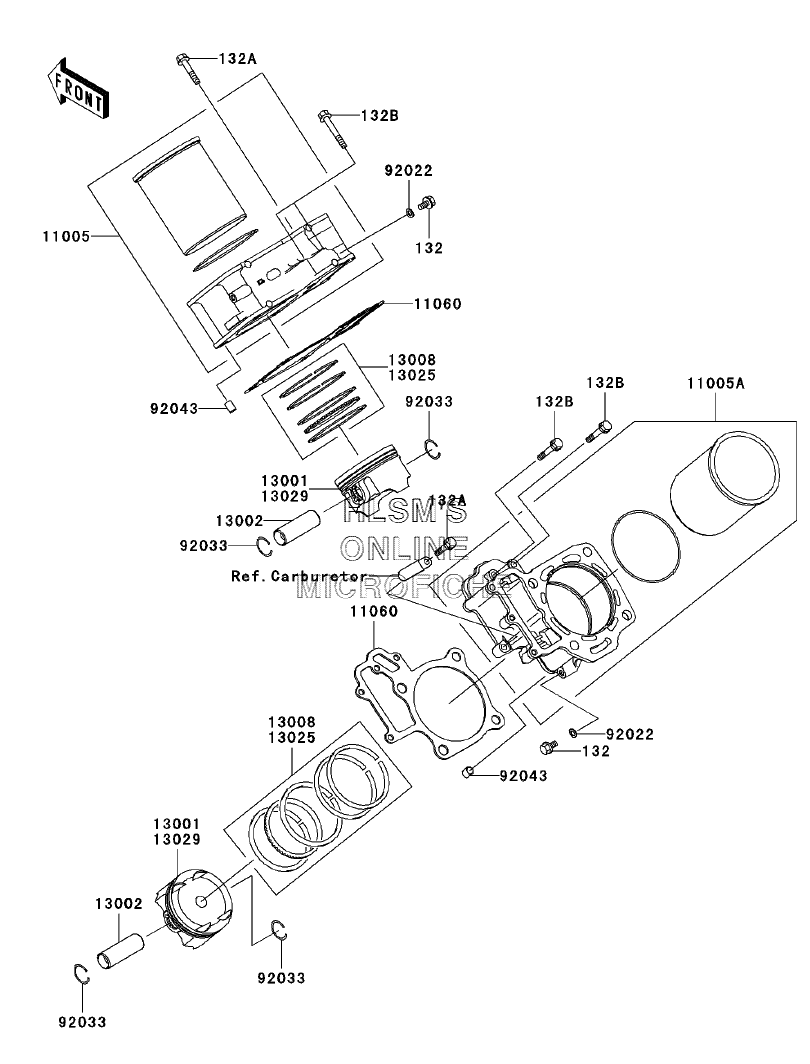

CYLINDER/PISTON(S) для Kawasaki KFX700 (Red / Silver) (KSV700-B2) - 2005 года выпуска`
-
№АртикулНазвание
-
132132Y0612 BOLT, FLANGED (SMALL)BOLT, FLANGED (SMALL)
-
132A132Y0630 BOLT, FLANGED (SMALL)BOLT, FLANGED (SMALL)
-
132B132Y0640 BOLT, FLANGED (SMALL)BOLT, FLANGED (SMALL)
-
1100511005-1990 CYLINDER ENGINE, FRONTCYLINDER ENGINE, FRONT
-
11005A11005-1992 CYLINDER ENGINE, REARCYLINDER ENGINE, REAR
-
1106011060-1965 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1658 PISTON ENGINE (STD)PISTON ENGINE (STD)
-
1300213002-1060 PIN PISTONPIN PISTON
-
1300813008-1215 RING SET PISTON (STD)RING SET PISTON (STD)
-
1302513025-0005 RING SET PISTON (O/S 0.50)RING SET PISTON (O/S 0.50)
-
1302913029-0007 PISTON ENGINE (O/S 0.50)PISTON ENGINE (O/S 0.50)
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-1207 RING SNAPRING SNAP
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
