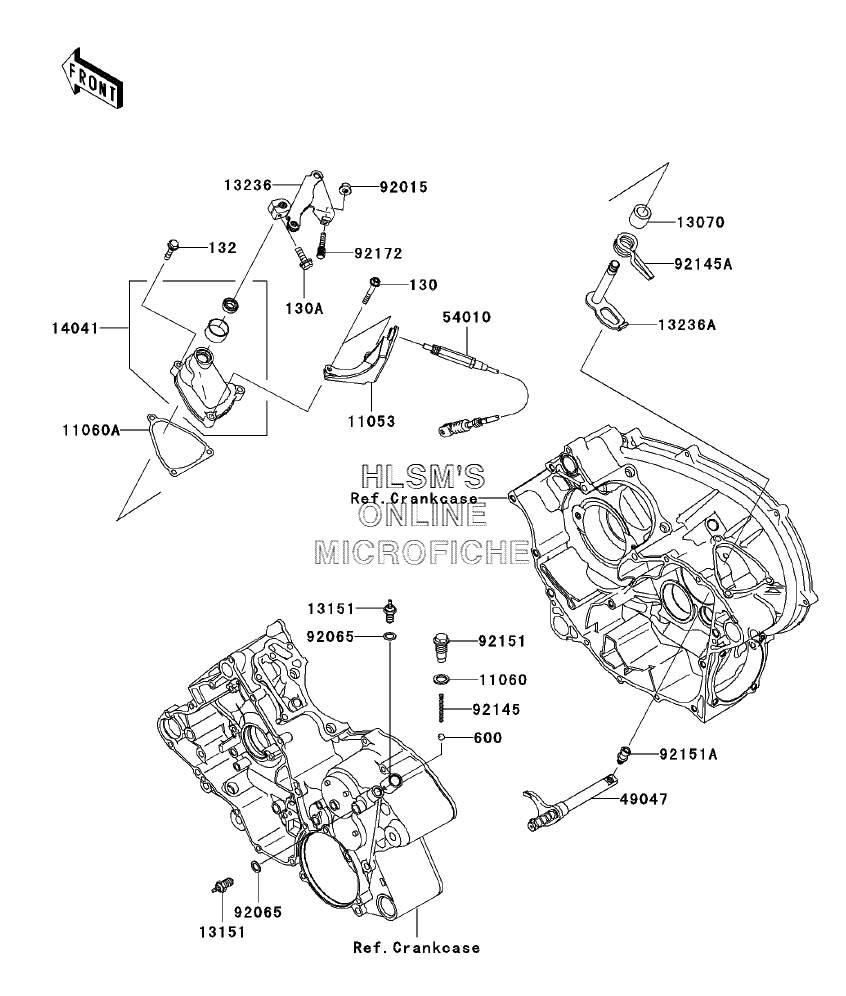

GEAR CHANGE MECHANISM для Kawasaki KFX700 (Red / Silver) (KSV700-B2) - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130Y0635 BOLT, FLANGED
    BOLT, FLANGED
  • 130A
    130Z0620 BOLT, FLANGED
    BOLT, FLANGED
  • 132
    132Y0630 BOLT, FLANGED (SMALL)
    BOLT, FLANGED (SMALL)
  • 600
    600A1000 BALL STEEL, 5/16"
    BALL STEEL, 5/16"
  • 11053
    11053-0104 BRACKET, REVERSE CABLE
    BRACKET, REVERSE CABLE
  • 11060
    11060-1287 GASKET, ROCKER SHAFT
    GASKET, ROCKER SHAFT
  • 11060A
    11060-1956 GASKET, CHANGE LEVER COVER
    GASKET, CHANGE LEVER COVER
  • 13070
    13070-1352 GUIDE
    GUIDE
  • 13151
    13151-1080 SWITCH COMP, NEUTRAL
    SWITCH COMP, NEUTRAL
  • 13236
    13236-0031 LEVER COMP, CHANGE SHIFT
    LEVER COMP, CHANGE SHIFT
  • 13236A
    13236-1377 LEVER COMP, CHANGE
    LEVER COMP, CHANGE
  • 14041
    14041-1136 COVER COMP, CHANGE LEVER
    COVER COMP, CHANGE LEVER
  • 49047
    49047-1104 ROD, SHIFT
    ROD, SHIFT
  • 54010
    54010-0005 CABLE, REVERSE LOCK
    CABLE, REVERSE LOCK
  • 92015
    92015-1193 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92145
    92145-1297 SPRING, CHANGE POSITION
    SPRING, CHANGE POSITION
  • 92145A
    92145-1299 SPRING, CHANGE LEVER
    SPRING, CHANGE LEVER
  • 92151
    92151-1687 BOLT, CHANGE POSITION
    BOLT, CHANGE POSITION
  • 92151A
    92151-1699 BOLT, SHIFT ROD
    BOLT, SHIFT ROD
  • 92172
    92172-0058 SCREW, 6X25
    SCREW, 6X25
