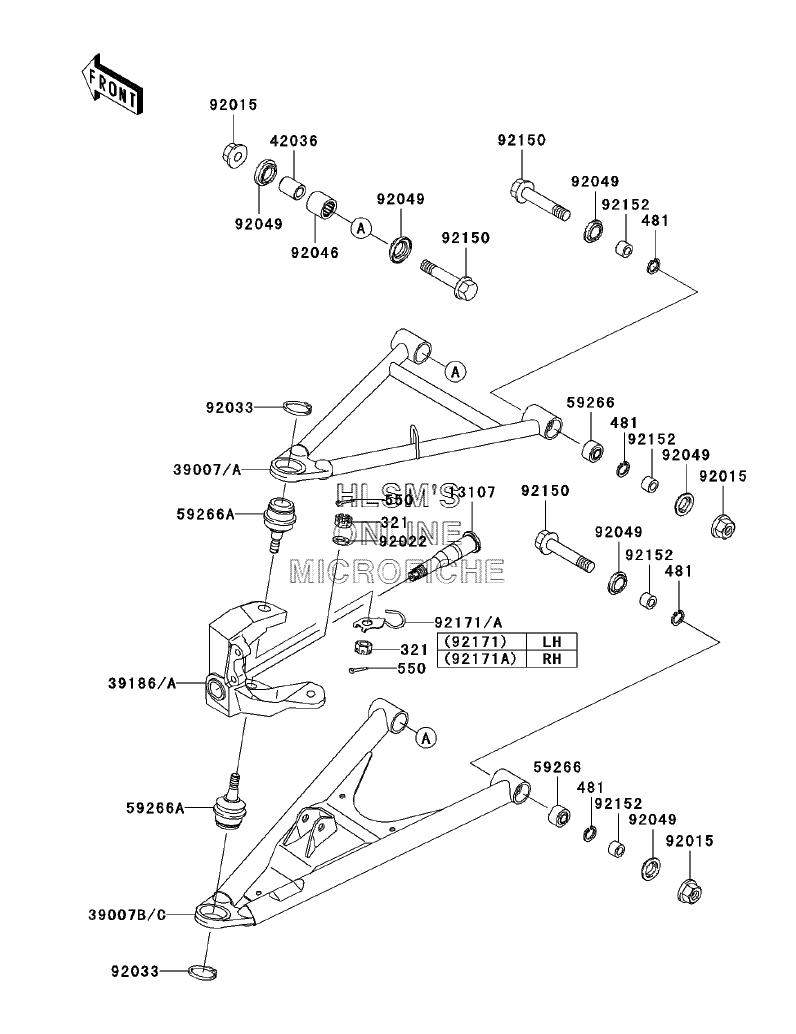

SUSPENSION для Kawasaki KFX700 (Red / Silver) (KSV700-B2) - 2005 года выпуска

  • №
    Артикул
    Название
  • 321
    321H1200 NUT CASTLE, 12MM
    NUT CASTLE, 12MM
  • 481
    481J2400 CIRCLIP
    CIRCLIP
  • 550
    550D3025 PIN COTTER, 3.0X25
    PIN COTTER, 3.0X25
  • 13107
    13107-1507 SHAFT, KNUCKLE
    SHAFT, KNUCKLE
  • 39007
    39007-1307-HN ARM SUSPENSION (LEFT/UPPER/G.GRAY)
    ARM SUSPENSION (LEFT/UPPER/G.GRAY)
  • 39007A
    39007-1309-HN ARM SUSPENSION (RIGHT/UPPER/G.GRAY)
    ARM SUSPENSION (RIGHT/UPPER/G.GRAY)
  • 39007B
    39007-1311-HN ARM SUSPENSION (LEFT/LOWER/G.GRAY)
    ARM SUSPENSION (LEFT/LOWER/G.GRAY)
  • 39007C
    39007-1312-HN ARM SUSPENSION (RIGHT/LOWER/G.GRAY)
    ARM SUSPENSION (RIGHT/LOWER/G.GRAY)
  • 39186
    39186-0003 KNUCKLE (LEFT)
    KNUCKLE (LEFT)
  • 39186A
    39186-0004 KNUCKLE (RIGHT)
    KNUCKLE (RIGHT)
  • 42036
    42036-1376 SLEEVE
    SLEEVE
  • 59266
    59266-1011 JOINT BALL
    JOINT BALL
  • 59266A
    59266-1139 JOINT BALL
    JOINT BALL
  • 92015
    92015-1428 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92022
    92022-1065 WASHER, 12.3X22X1.6
    WASHER, 12.3X22X1.6
  • 92033
    92033-1262 RING SNAP, C TYPE, 32MM
    RING SNAP, C TYPE, 32MM
  • 92046
    92046-1046 BEARING NEEDLE
    BEARING NEEDLE
  • 92049
    92049-1223 SEAL OIL, MHA17245.7F
    SEAL OIL, MHA17245.7F
  • 92150
    92150-1384 BOLT, FLANGED, 10X63
    BOLT, FLANGED, 10X63
  • 92152
    92152-1455 COLLAR, 10X17X14.5
    COLLAR, 10X17X14.5
  • 92171
    92171-0094 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92171A
    92171-0095 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
