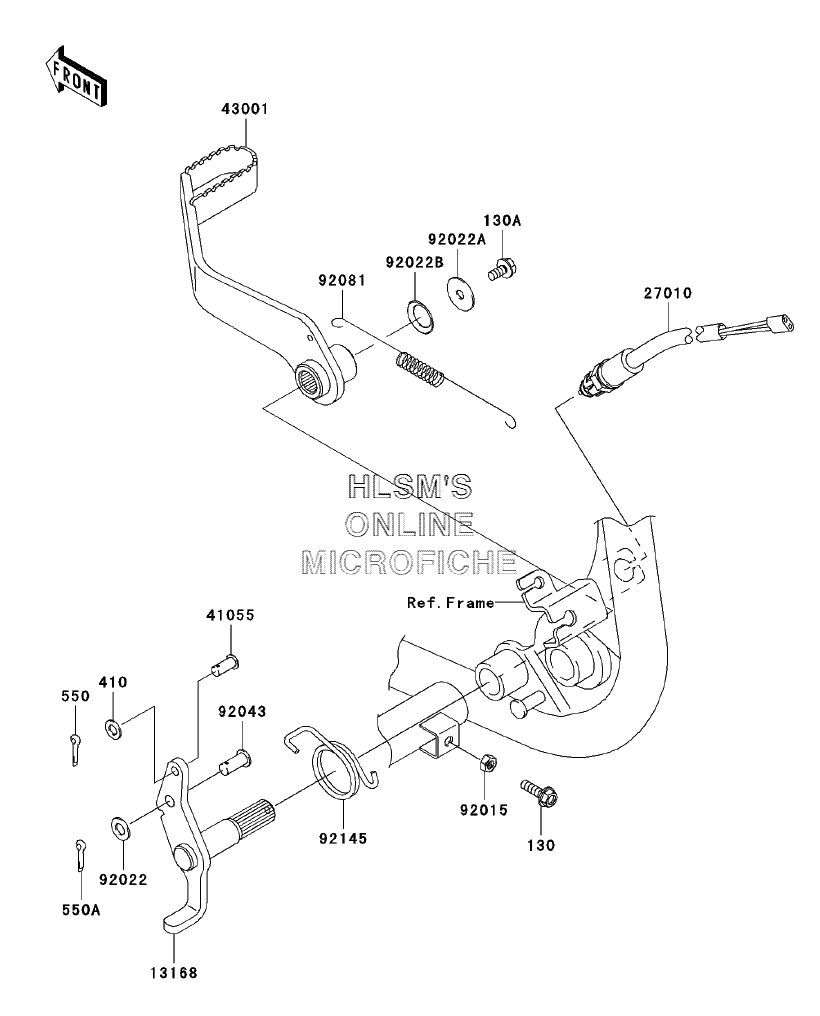

BRAKE PEDAL для Kawasaki KFX700 (Red / Silver) (KSV700-B2) - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0620 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 130A
    130J0612 BOLT, FLANGED
    BOLT, FLANGED
  • 410
    410B0600 WASHER PLAIN SMALL, 6MM
    WASHER PLAIN SMALL, 6MM
  • 550
    550D1210 PIN COTTER, 1.2X10
    PIN COTTER, 1.2X10
  • 550A
    550D2015 PIN COTTER, 2.0X15
    PIN COTTER, 2.0X15
  • 13168
    13168-0014 LEVER
    LEVER
  • 27010
    27010-1494 SWITCH, BRAKE
    SWITCH, BRAKE
  • 41055
    41055-003 PIN
    PIN
  • 43001
    43001-0011-HN LEVER BRAKE, PEDAL (G.GRAY)
    LEVER BRAKE, PEDAL (G.GRAY)
  • 92015
    92015-1410 NUT, 6MM
    NUT, 6MM
  • 92022
    92022-1582 WASHER, 8.5X16X1.2
    WASHER, 8.5X16X1.2
  • 92022A
    92022-1690 WASHER, 6.5X24X2
    WASHER, 6.5X24X2
  • 92022B
    92022-1943 WASHER, SPRING, T=0.3
    WASHER, SPRING, T=0.3
  • 92043
    92043-1013 PIN, 8X16
    PIN, 8X16
  • 92081
    92081-1565 SPRING, BRAKE SWITCH
    SPRING, BRAKE SWITCH
  • 92145
    92145-1534 SPRING, BRAKE PEDAL RETURN
    SPRING, BRAKE PEDAL RETURN
