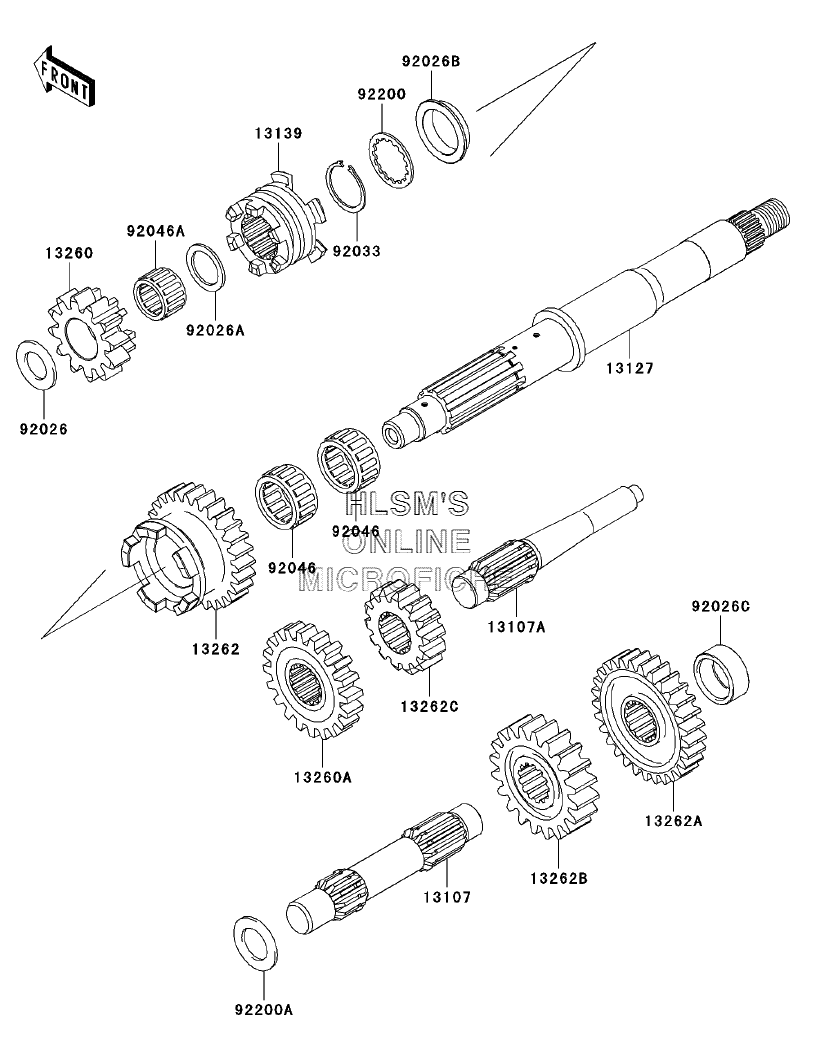

TRANSMISSION для Kawasaki KFX700 (Red / Silver) (KSV700-B2) - 2005 года выпуска

  • №
    Артикул
    Название
  • 13107
    13107-1436 SHAFT, COUNTER
    SHAFT, COUNTER
  • 13107A
    13107-1437 SHAFT, REVERSE, IDLE
    SHAFT, REVERSE, IDLE
  • 13127
    13127-1282 SHAFT TRANSMISSION INPUT
    SHAFT TRANSMISSION INPUT
  • 13139
    13139-1096 SHIFTER
    SHIFTER
  • 13260
    13260-1868 GEAR, INPUT REVERSE (12 TEETH)
    GEAR, INPUT REVERSE (12 TEETH)
  • 13260A
    13260-1873 GEAR, DRIVEN REVERSE (16 TEETH)
    GEAR, DRIVEN REVERSE (16 TEETH)
  • 13262
    13262-0002 GEAR, INPUT HIGH (27 TEETH)
    GEAR, INPUT HIGH (27 TEETH)
  • 13262A
    13262-0015 GEAR, DRIVEN HIGH (29 TEETH)
    GEAR, DRIVEN HIGH (29 TEETH)
  • 13262B
    13262-1052 GEAR, OUTPUT DRIVE (20 TEETH)
    GEAR, OUTPUT DRIVE (20 TEETH)
  • 13262C
    13262-1053 GEAR, OUTPUT REVERSE (14 TEETH)
    GEAR, OUTPUT REVERSE (14 TEETH)
  • 92026
    92026-1415 SPACER, 17.3X30X2.0
    SPACER, 17.3X30X2.0
  • 92026A
    92026-1568 SPACER, 21.2X29X1.6
    SPACER, 21.2X29X1.6
  • 92026B
    92026-1629 SPACER, 28X39X8
    SPACER, 28X39X8
  • 92026C
    92026-1630 SPACER, 25X32X13
    SPACER, 25X32X13
  • 92033
    92033-1037 RING SNAP, T=1.2
    RING SNAP, T=1.2
  • 92046
    92046-1278 BEARING NEEDLE, LOW GEAR
    BEARING NEEDLE, LOW GEAR
  • 92046A
    92046-1279 BEARING NEEDLE, REVERSE GEAR
    BEARING NEEDLE, REVERSE GEAR
  • 92200
    92200-1240 WASHER, T=1.5
    WASHER, T=1.5
  • 92200A
    92200-1351 WASHER, 20.3X33X2.0
    WASHER, 20.3X33X2.0
