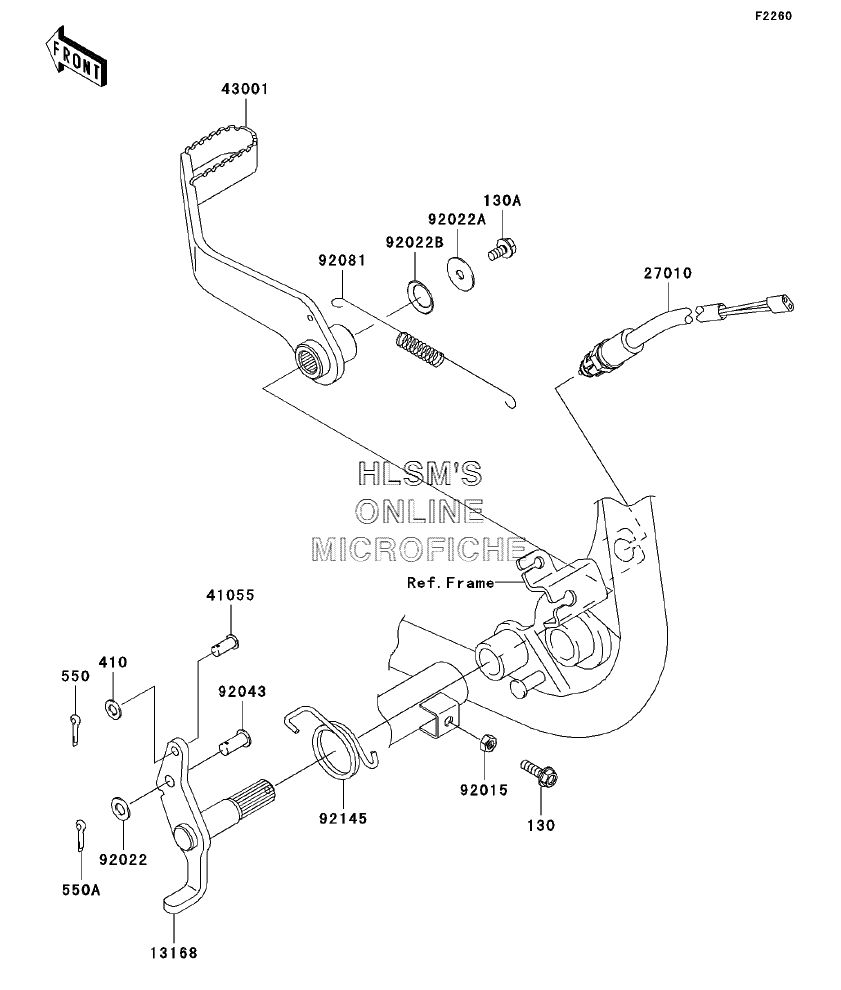

BRAKE PEDAL для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска`
-
№АртикулНазвание
-
130130G0620 BOLT FLANGED, 6X20BOLT FLANGED, 6X20
-
130A130J0612 BOLT FLANGEDBOLT FLANGED
-
410410B0600 WASHER PLAIN SMALL, 6MMWASHER PLAIN SMALL, 6MM
-
550550D1210 PIN COTTER, 1.2X10PIN COTTER, 1.2X10
-
550A550D2015 PIN COTTER, 2.0X15PIN COTTER, 2.0X15
-
1316813168-0014 LEVERLEVER
-
2701027010-1494 SWITCH, BRAKESWITCH, BRAKE
-
4105541055-003 PINPIN
-
4300143001-0011-HN LEVER BRAKE, PEDAL (G.GRAY)LEVER BRAKE, PEDAL (G.GRAY)
-
9201592015-1410 NUT, 6MMNUT, 6MM
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
92022A92022-1690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
92022B92022-1943 WASHER, SPRING, T=0.3WASHER, SPRING, T=0.3
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9208192081-1565 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
9214592145-1534 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
