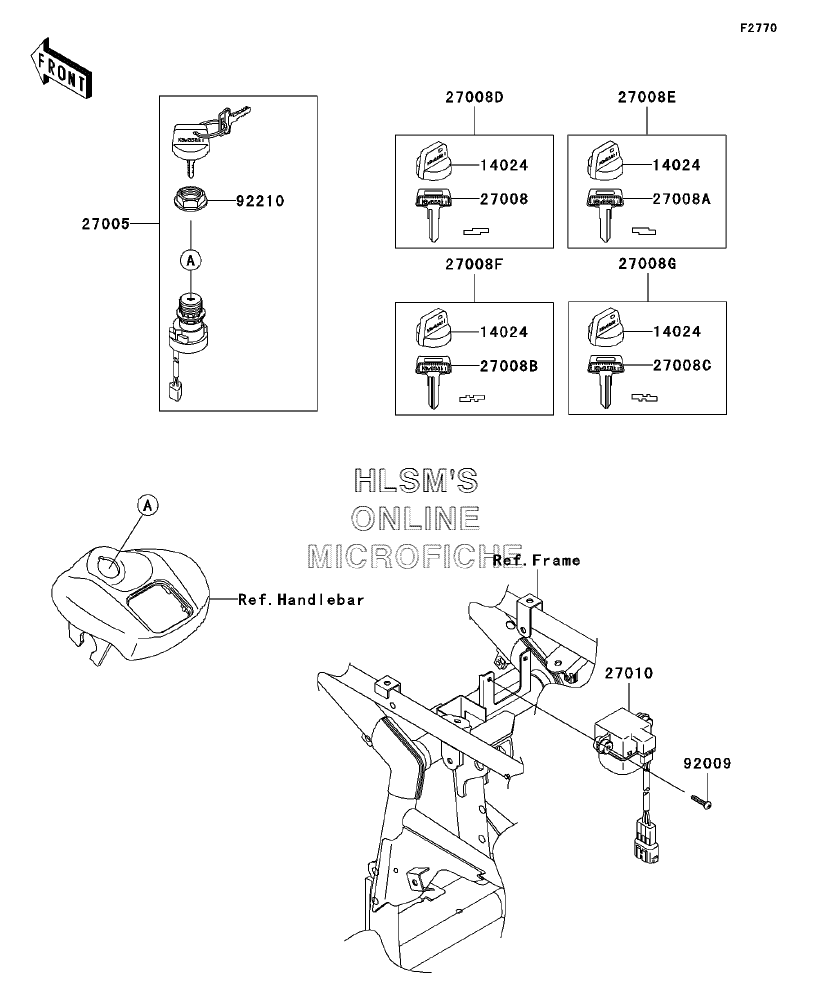

IGNITION SWITCH для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска

  • №
    Артикул
    Название
  • 14024
    14024-1551 COVER, KEY (OPTION)
    COVER, KEY (OPTION)
  • 27005
    27005-1267 SWITCH ASSY IGNITION
    SWITCH ASSY IGNITION
  • 27008
    27008-1041 KEY LOCK, BLANK (OPTION)
    KEY LOCK, BLANK (OPTION)
  • 27008A
    27008-1042 KEY LOCK, BLANK (OPTION)
    KEY LOCK, BLANK (OPTION)
  • 27008B
    27008-1043 KEY LOCK, BLANK (OPTION)
    KEY LOCK, BLANK (OPTION)
  • 27008C
    27008-1044 KEY LOCK, BLANK (OPTION)
    KEY LOCK, BLANK (OPTION)
  • 27008D
    27008-1132 KEY LOCK, BLANK (OPTION)
    KEY LOCK, BLANK (OPTION)
  • 27008E
    27008-1133 KEY LOCK, BLANK (OPTION)
    KEY LOCK, BLANK (OPTION)
  • 27008F
    27008-1134 KEY LOCK, BLANK (OPTION)
    KEY LOCK, BLANK (OPTION)
  • 27008G
    27008-1135 KEY LOCK, BLANK (OPTION)
    KEY LOCK, BLANK (OPTION)
  • 27010
    27010-1421 SWITCH, INVERT SENSOR
    SWITCH, INVERT SENSOR
  • 92009
    92009-1897 SCREW, 4X20
    SCREW, 4X20
  • 92210
    92210-1109 NUT, IGNITION SWITCH
    NUT, IGNITION SWITCH
