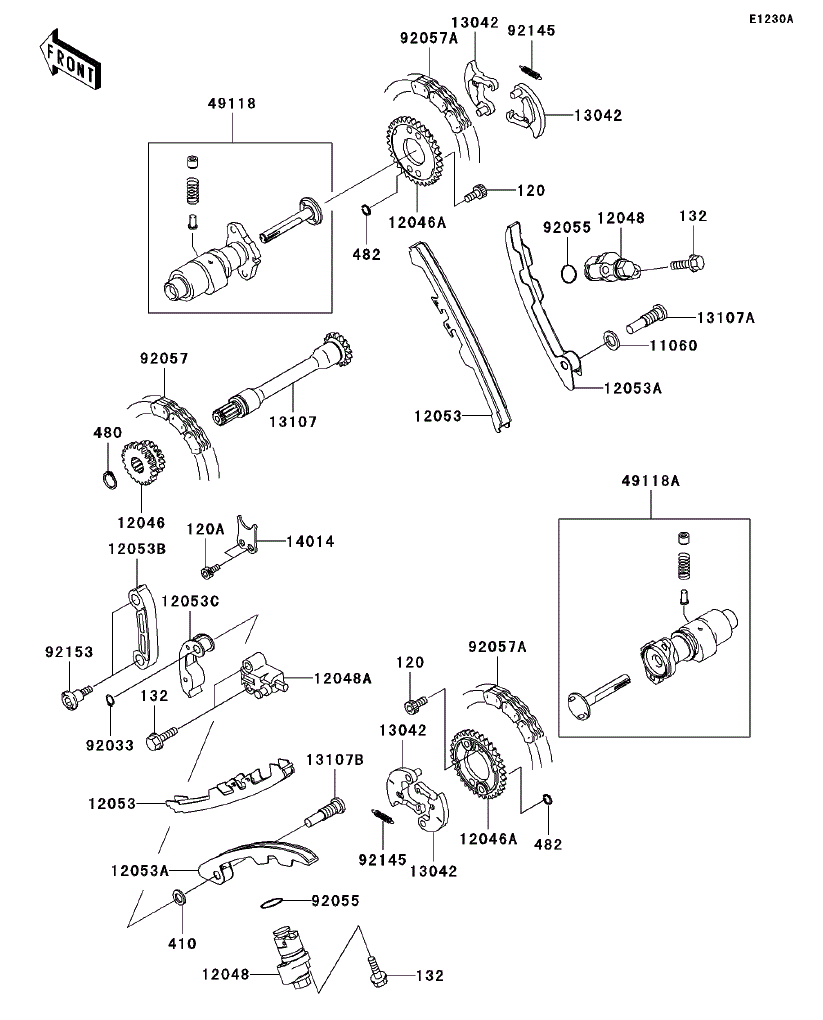

CAMSHAFT(S)/TENSIONER для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска

  • №
    Артикул
    Название
  • 120
    120P0610 BOLT SOCKET, 6X10
    BOLT SOCKET, 6X10
  • 120A
    120S0614 BOLT SOCKET, 6X14 (BLACK)
    BOLT SOCKET, 6X14 (BLACK)
  • 132
    132Y0630 BOLT FLANGED SMALL
    BOLT FLANGED SMALL
  • 410
    410B0800 WASHER PLAIN SMALL, 8MM
    WASHER PLAIN SMALL, 8MM
  • 480
    480J1400 CIRCLIP TYPE C, 14MM
    CIRCLIP TYPE C, 14MM
  • 482
    482J5000 CIRCLIP TYPE E
    CIRCLIP TYPE E
  • 11060
    11060-1966 GASKET
    GASKET
  • 12046
    12046-0021 SPROCKET, 21T & 17T
    SPROCKET, 21T & 17T
  • 12046A
    12046-1203 SPROCKET, CAMSHAFT, 34T
    SPROCKET, CAMSHAFT, 34T
  • 12048
    12048-1176 TENSIONER ASSY, CAM
    TENSIONER ASSY, CAM
  • 12048A
    12048-1177 TENSIONER ASSY, SECONDARY
    TENSIONER ASSY, SECONDARY
  • 12053
    12053-1441 GUIDE CHAIN, CAMSHAFT, TENSION
    GUIDE CHAIN, CAMSHAFT, TENSION
  • 12053A
    12053-1442 GUIDE CHAIN, CAMSHAFT, SLACK
    GUIDE CHAIN, CAMSHAFT, SLACK
  • 12053B
    12053-1443 GUIDE CHAIN, TENSION
    GUIDE CHAIN, TENSION
  • 12053C
    12053-1444 GUIDE CHAIN, SLACK
    GUIDE CHAIN, SLACK
  • 13042
    13042-1141 WEIGHT, DECOMP
    WEIGHT, DECOMP
  • 13107
    13107-0029 SHAFT
    SHAFT
  • 13107A
    13107-1443 SHAFT, CHAIN GUIDE (FRONT)
    SHAFT, CHAIN GUIDE (FRONT)
  • 13107B
    13107-1444 SHAFT, CHAIN GUIDE (REAR)
    SHAFT, CHAIN GUIDE (REAR)
  • 14014
    14014-1148 PLATE POSITION, DRIVE
    PLATE POSITION, DRIVE
  • 49118
    49118-0001 CAMSHAFT COMP (FRONT)
    CAMSHAFT COMP (FRONT)
  • 49118A
    49118-0002 CAMSHAFT COMP (REAR)
    CAMSHAFT COMP (REAR)
  • 92033
    92033-1039 RING SNAP, 8MM
    RING SNAP, 8MM
  • 92055
    92055-086 RING O
    RING O
  • 92057
    92057-1536 CHAIN, SECONDARY SHAFT
    CHAIN, SECONDARY SHAFT
  • 92057A
    92057-1537 CHAIN, CAM SHAFT
    CHAIN, CAM SHAFT
  • 92145
    92145-1303 SPRING, DECOMP
    SPRING, DECOMP
  • 92153
    92153-1200 BOLT
    BOLT
