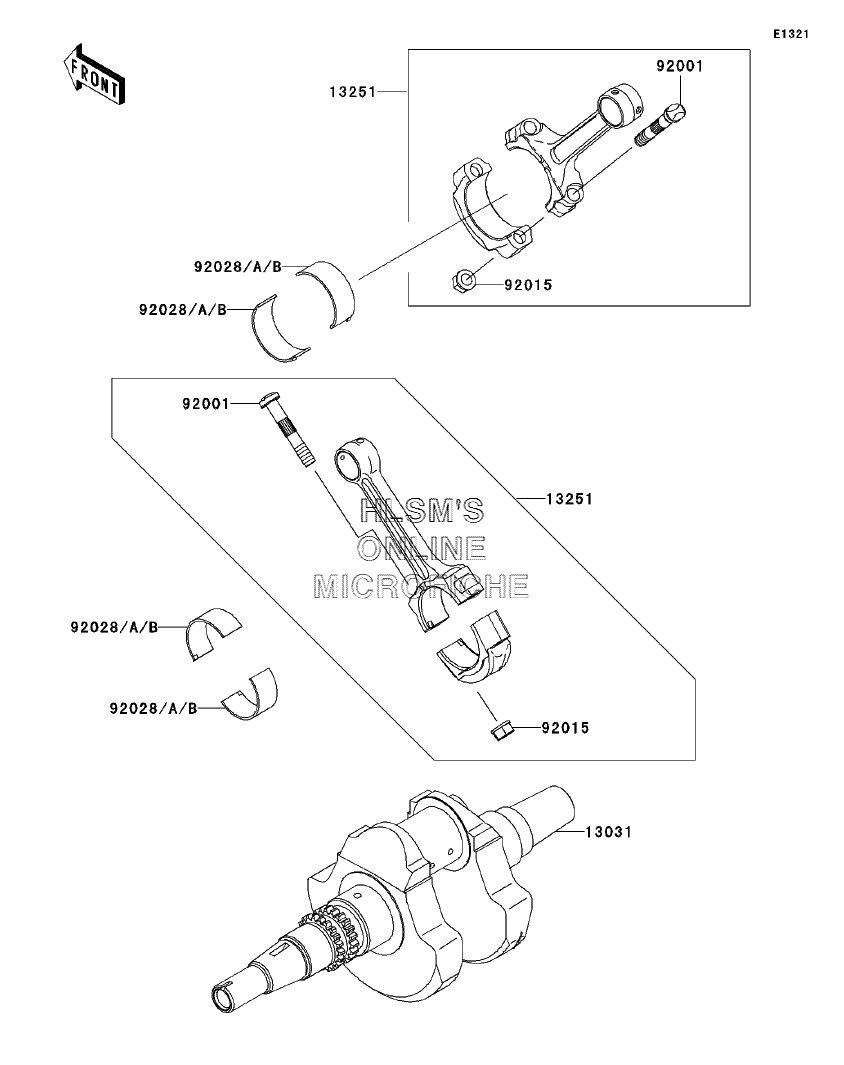

CRANKSHAFT для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
1303113031-1504 CRANKSHAFT COMPCRANKSHAFT COMP
-
1325113251-1143 ROD ASSY CONNECTINGROD ASSY CONNECTING
-
9200192001-1980 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
9201592015-1311 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202892028-1961 BUSHING, CONNECTING ROD (GREEN)BUSHING, CONNECTING ROD (GREEN)
-
92028A92028-1962 BUSHING, CONNECTING ROD (YELLOW)BUSHING, CONNECTING ROD (YELLOW)
-
92028B92028-1963 BUSHING, CONNECTING ROD (BROWN)BUSHING, CONNECTING ROD (BROWN)
