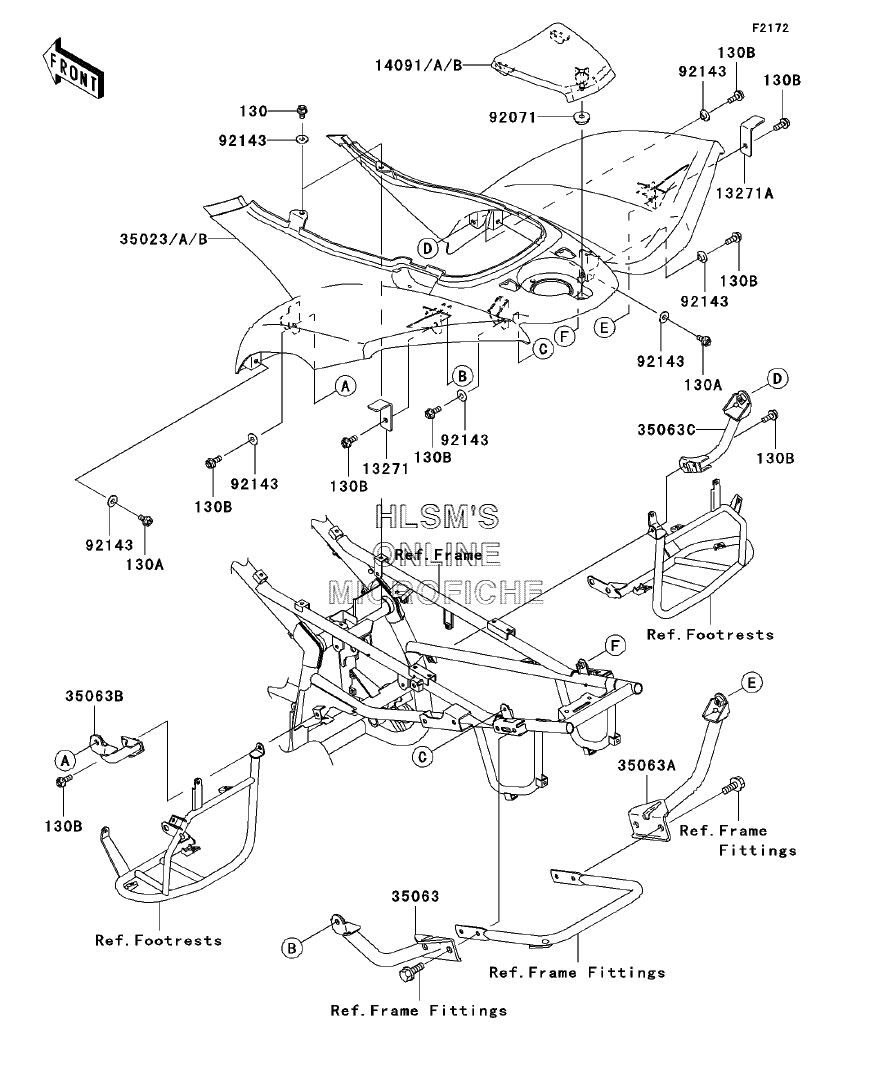

FENDER - REAR для Kawasaki KFX700 (Orange / Green) (KSV700-A2) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT FLANGEDBOLT FLANGED
-
130A130J0612 BOLT FLANGEDBOLT FLANGED
-
130B130J0616 BOLT FLANGED, 6X16 (BLACK)BOLT FLANGED, 6X16 (BLACK)
-
1327113271-0126 PLATE, RR FENDER (LEFT)PLATE, RR FENDER (LEFT)
-
13271A13271-0127 PLATE, RR FENDER (RIGHT)PLATE, RR FENDER (RIGHT)
-
1409114091-0096-268 COVER, TANK CAP, B.(ORANGE)COVER, TANK CAP, B.(ORANGE)
-
14091A14091-0096-290 COVER, TANK CAP, L.(GREEN)COVER, TANK CAP, L.(GREEN)
-
3502335023-0010-268 FENDER REAR, B.(ORANGE)FENDER REAR, B.(ORANGE)
-
35023A35023-0010-290 FENDER REAR, L.(GREEN)FENDER REAR, L.(GREEN)
-
3506335063-0042 STAY, REAR FENDER (LEFT)STAY, REAR FENDER (LEFT)
-
35063A35063-0043 STAY, REAR FENDER (RIGHT)STAY, REAR FENDER (RIGHT)
-
35063B35063-0044 STAY, REAR FENDER (LEFT)STAY, REAR FENDER (LEFT)
-
35063C35063-0045 STAY, REAR FENDER (RIGHT)STAY, REAR FENDER (RIGHT)
-
9207192071-0008 GROMMETGROMMET
-
9214392143-1087 COLLARCOLLAR
