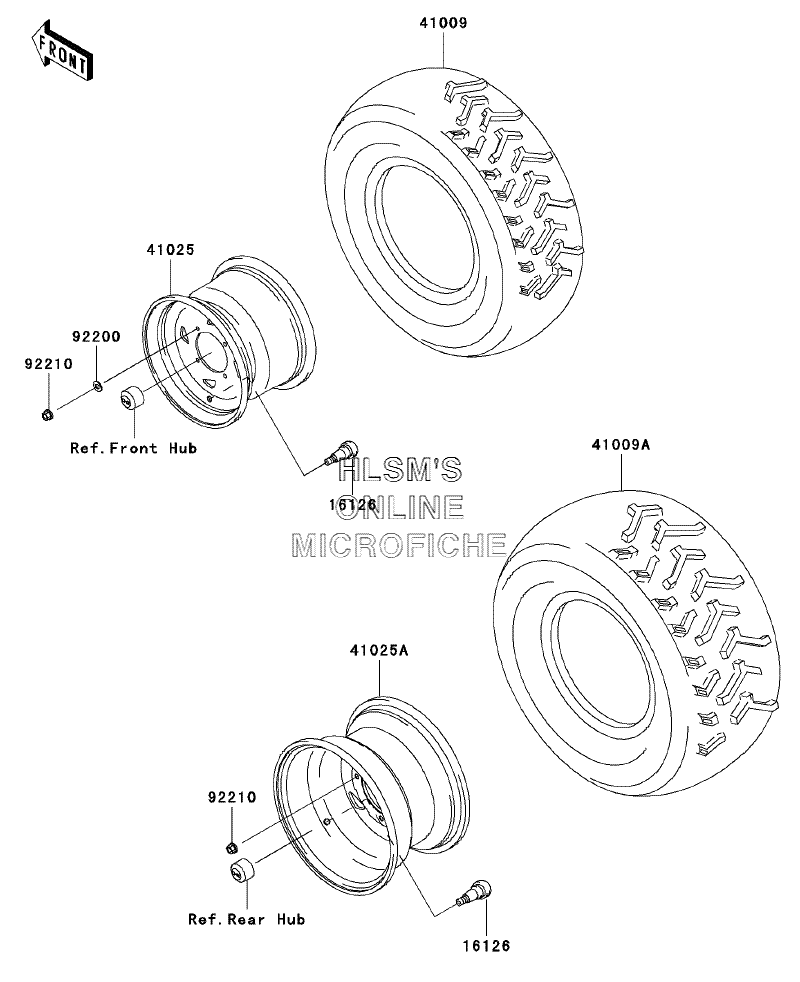

WHEELS/TIRES для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
1612616126-4001 VALVEVALVE
-
4100941009-1117 TIRE,FR,AT25X8-12,KT121A(D)TIRE,FR,AT25X8-12,KT121A(D)
-
41009A41009-1380 TIRE,RR,AT25X10-12,KT127ATIRE,RR,AT25X10-12,KT127A
-
4102541025-1375-UF RIM,FR,12X6.0,S.GOLDRIM,FR,12X6.0,S.GOLD
-
41025A41025-1426-UF RIM,RR,12X7.5AT,S.GOLDRIM,RR,12X7.5AT,S.GOLD
-
9220092200-1595 WASHER,10.5X25X1.6WASHER,10.5X25X1.6
-
9221092210-1325 NUT,FLANGED,10MMNUT,FLANGED,10MM
