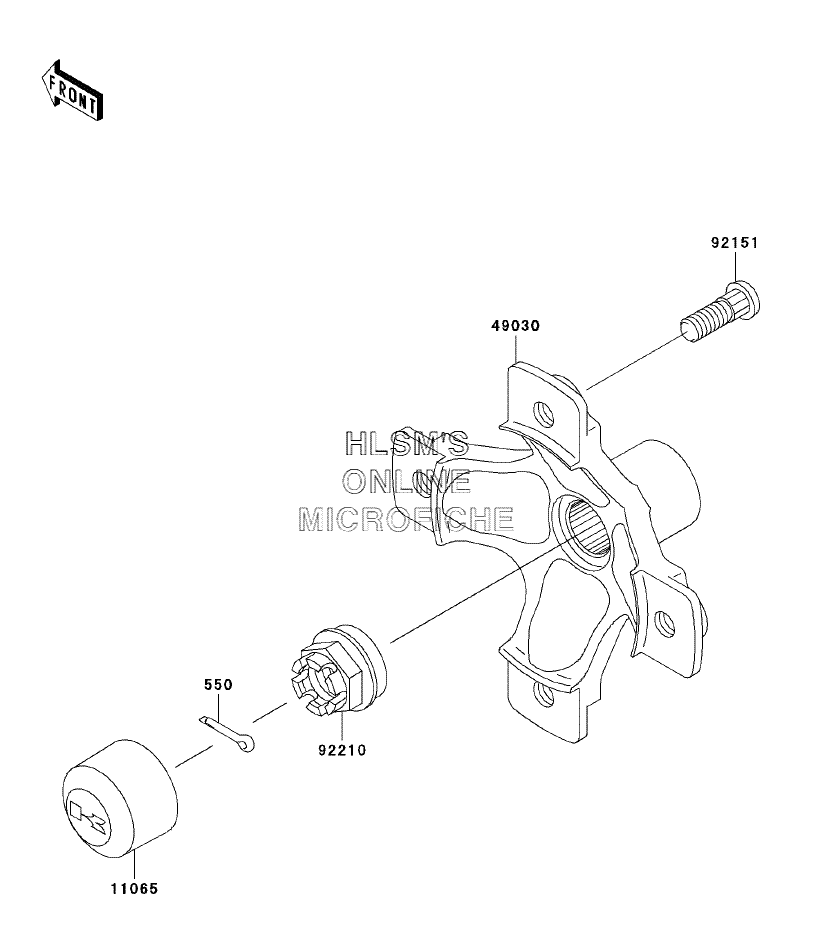

REAR HUB (JKAVFEA1 3B539293 AND ABOVE) для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
550550D4025 PIN-COTTER,4.0X25PIN-COTTER,4.0X25
-
1106511065-1153 CAP,WHEELCAP,WHEEL
-
4903049030-1140 HUB,RRHUB,RR
-
9215192151-1392 BOLT,10X29.5BOLT,10X29.5
-
9221092210-1381 NUT,CASTLE,20MMNUT,CASTLE,20MM
