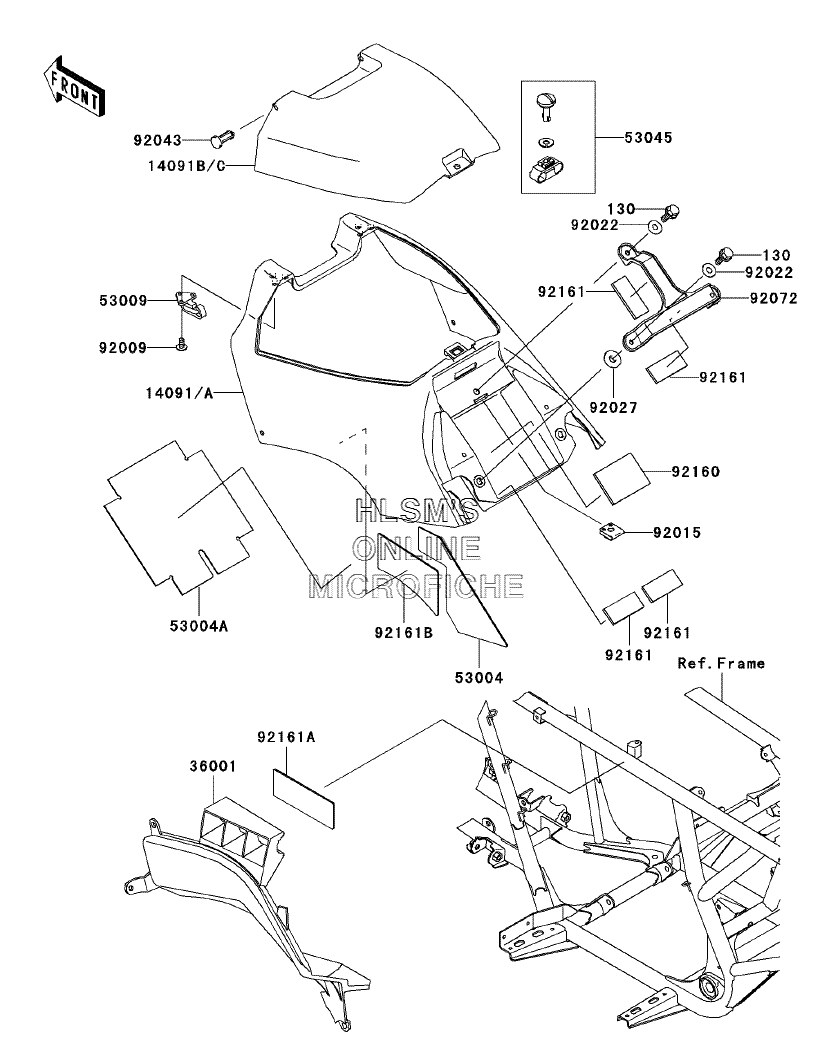

SIDE COVERS для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска`
-
№АртикулНазвание
-
130130J0618 BOLT-FLANGED,6X18BOLT-FLANGED,6X18
-
1409114091-1423-260 COVER,FUEL TANK,A.REDCOVER,FUEL TANK,A.RED
-
14091A14091-1423-6A COVER,FUEL TANK,H.GREENCOVER,FUEL TANK,H.GREEN
-
14091B14091-1424-260 COVER,FUEL TANK,UPP,A.REDCOVER,FUEL TANK,UPP,A.RED
-
14091C14091-1424-6A COVER,FUEL TANK,UPP,H.GREENCOVER,FUEL TANK,UPP,H.GREEN
-
3600136001-1647 COVER-SIDECOVER-SIDE
-
5300453004-1148 MAT,FUEL TANK COVERMAT,FUEL TANK COVER
-
53004A53004-1172 MAT,BATTERY CASEMAT,BATTERY CASE
-
5300953009-1110 HINGE,FUEL TANK COVER,FRHINGE,FUEL TANK COVER,FR
-
5304553045-1070 HOOK-ASSY,FUEL TANK COVER,RRHOOK-ASSY,FUEL TANK COVER,RR
-
9200992009-1332 SCREW,TAPPING,5X10SCREW,TAPPING,5X10
-
9201592015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9202292022-1093 WASHER,6.5X16X1.0WASHER,6.5X16X1.0
-
9202792027-1964 COLLAR,L=4.7COLLAR,L=4.7
-
9204392043-1623 PIN,HINGEPIN,HINGE
-
9207292072-1406 BAND,BATTERYBAND,BATTERY
-
9216092160-1897 DAMPER,BATTERYDAMPER,BATTERY
-
9216192161-1127 DAMPER,BATTERYDAMPER,BATTERY
-
92161A92161-1201 DAMPER,SIDE COVERDAMPER,SIDE COVER
-
92161B92161-1202 DAMPER,FUEL TANK COVERDAMPER,FUEL TANK COVER
