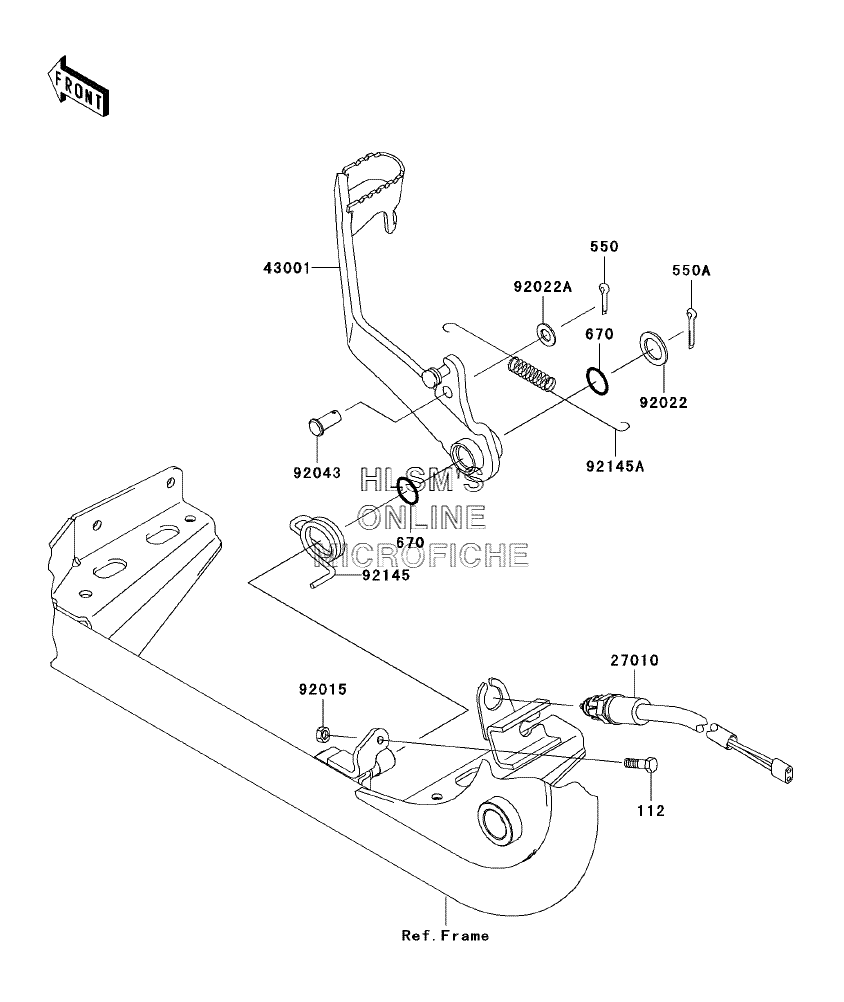

BRAKE PEDAL для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
112112G0620 BOLT-UPSETBOLT-UPSET
-
550550D2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
550A550D2022 PIN-COTTER,2.0X22PIN-COTTER,2.0X22
-
670670B2015 O RING,15MMO RING,15MM
-
2701027010-1301 SWITCH,BRAKE LAMPSWITCH,BRAKE LAMP
-
4300143001-1441 LEVER-BRAKE,PEDALLEVER-BRAKE,PEDAL
-
9201592015-1410 NUT,6MMNUT,6MM
-
9202292022-1049 WASHER,15.5X24X1.6WASHER,15.5X24X1.6
-
92022A92022-1582 WASHER,8.5X16X1.2WASHER,8.5X16X1.2
-
9204392043-1013 PIN,8X16PIN,8X16
-
9214592145-1421 SPRING,BRAKE PEDAL RETURNSPRING,BRAKE PEDAL RETURN
-
92145A92145-1422 SPRING,BRAKE SWITCHSPRING,BRAKE SWITCH
