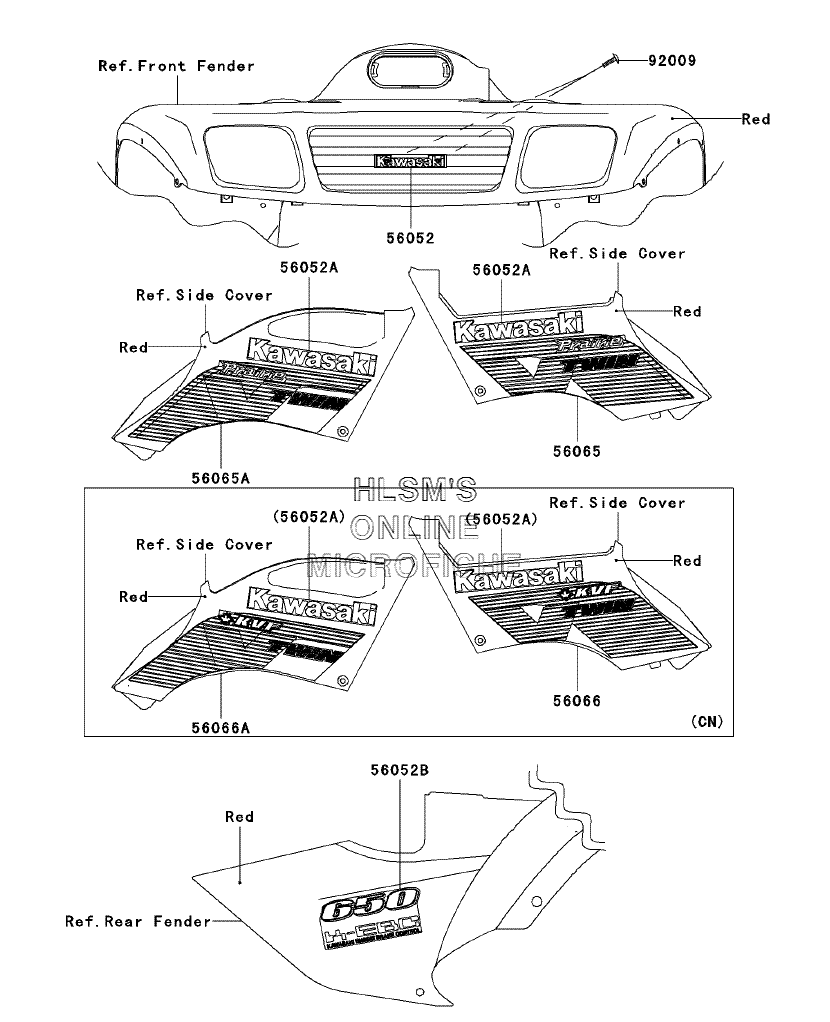

DECALS (RED) для Kawasaki Prairie 650 4x4 (KVF650-A2) - 2003 года выпуска
-
№АртикулНазвание
-
5605256052-1201 MARK,FR FENDER,KAWASAKIMARK,FR FENDER,KAWASAKI
-
56052A56052-1746 MARK,FUEL TANK COVER,KAWASAKIMARK,FUEL TANK COVER,KAWASAKI
-
56052B56052-1747 MARK,RR FENDER,650 K-EBCMARK,RR FENDER,650 K-EBC
-
5606556065-1996 PATTERN,FUEL TANK COVER,LHPATTERN,FUEL TANK COVER,LH
-
56065A56065-1997 PATTERN,FUEL TANK COVER,RHPATTERN,FUEL TANK COVER,RH
-
5606656066-1226 PATTERN,FUEL TANK COVER,LH (CANADA ONLY)PATTERN,FUEL TANK COVER,LH (CANADA ONLY)
-
56066A56066-1227 PATTERN,FUEL TANK COVER,RH (CANADA ONLY)PATTERN,FUEL TANK COVER,RH (CANADA ONLY)
-
9200992009-1444 SCREW,TAPPING,4X12SCREW,TAPPING,4X12
