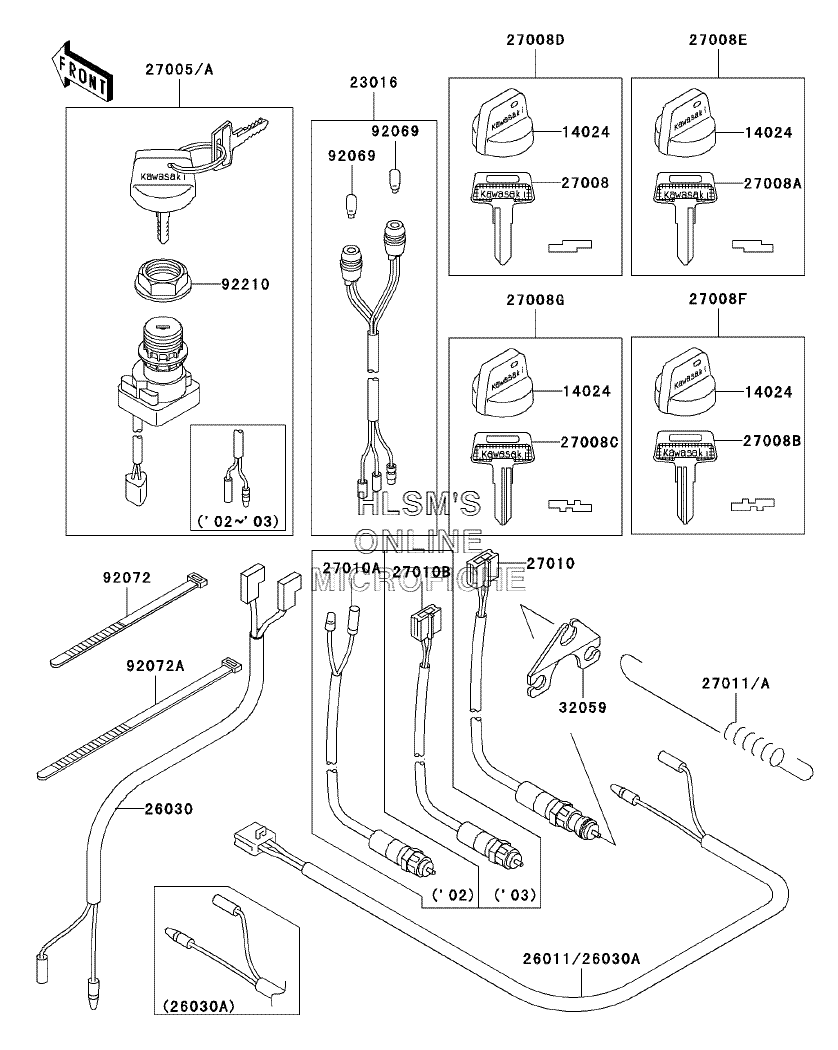

IGNITION SWITCH для Kawasaki Bayou 300 (KLF300-B16) - 2003 года выпуска

  • №
    Артикул
    Название
  • 14024
    14024-1551 COVER, KEY (OPT)
    COVER, KEY (OPT)
  • 23016
    23016-1083 LAMP-ASSY, NEUTRAL AND REVERSE
    LAMP-ASSY, NEUTRAL AND REVERSE
  • 26011
    26011-1838 WIRE-LEAD, REAR BRAKE
    WIRE-LEAD, REAR BRAKE
  • 26030
    26030-1058 HARNESS
    HARNESS
  • 27005
    27005-1201 SWITCH-ASSY-IGNITION
    SWITCH-ASSY-IGNITION
  • 27008
    27008-1041 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008A
    27008-1042 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008B
    27008-1043 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008C
    27008-1044 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008D
    27008-1132 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008E
    27008-1133 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008F
    27008-1134 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27008G
    27008-1135 KEY-LOCK, BLANK (OPT)
    KEY-LOCK, BLANK (OPT)
  • 27010B
    27010-1473 SWITCH, REAR BRKAE
    SWITCH, REAR BRKAE
  • 27011A
    27011-014 SPRING, SWITCH
    SPRING, SWITCH
  • 32059
    32059-1107 BRACKET-SWITCH, REAR BRAKE
    BRACKET-SWITCH, REAR BRAKE
  • 92069
    92069-1020 BULB, 12V 3W, T7
    BULB, 12V 3W, T7
  • 92072
    92072-030 BAND, L=123
    BAND, L=123
  • 92072A
    92072-1239 BAND, L=188
    BAND, L=188
  • 92210
    92210-1109 NUT, IGNITION SWITCH
    NUT, IGNITION SWITCH
