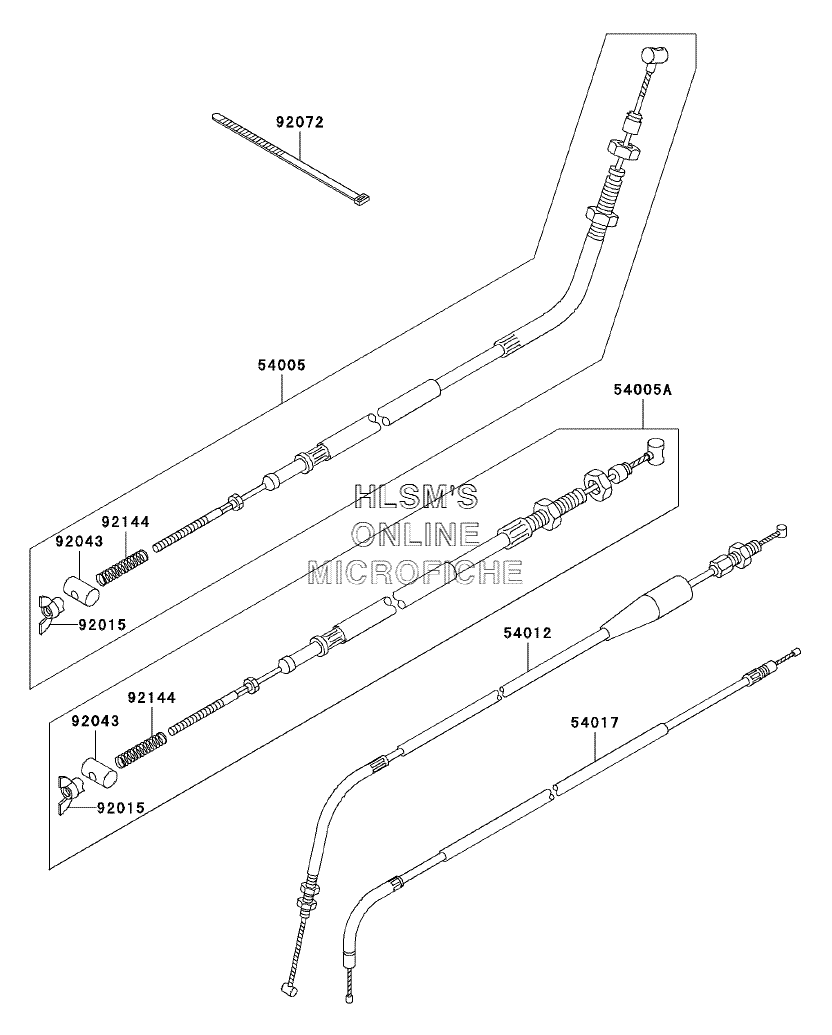

CABLES для Kawasaki Bayou 300 (KLF300-B16) - 2003 года выпуска`
-
№АртикулНазвание
-
5400554005-1157 CABLE-BRAKE, REAR (LEFT)CABLE-BRAKE, REAR (LEFT)
-
54005A54005-1158 CABLE-BRAKE, REAR (RIGHT)CABLE-BRAKE, REAR (RIGHT)
-
5401254012-1362 CABLE-THROTTLECABLE-THROTTLE
-
5401754017-1111 CABLE-STARTERCABLE-STARTER
-
9201592015-4004 NUT, WING, 6MMNUT, WING, 6MM
-
9204392043-1392 PIN, 12X20PIN, 12X20
-
9207292072-1239 BAND, L=188BAND, L=188
-
9214492144-1269 SPRING, BRAKE CABLESPRING, BRAKE CABLE
