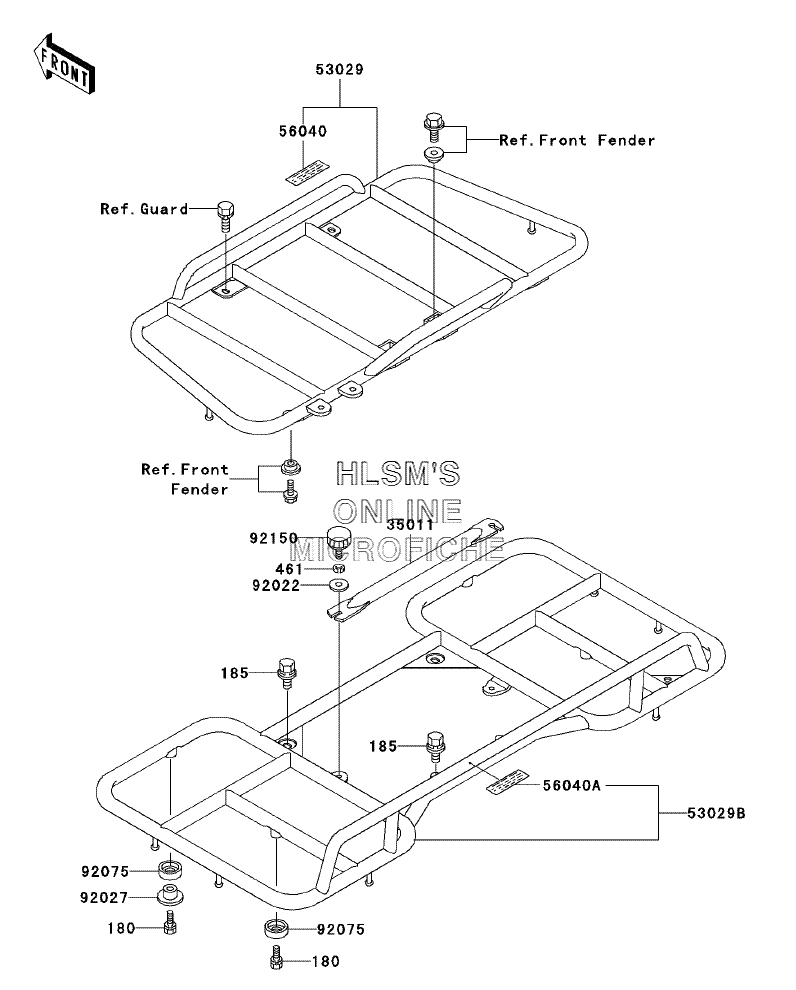

CARRIER(S) для Kawasaki Bayou 300 (KLF300-B16) - 2003 года выпуска
-
№АртикулНазвание
-
180180D0618 BOLT-UPSET-WSBOLT-UPSET-WS
-
185185C0816 BOLT-UPSET-WSP-SMALLBOLT-UPSET-WSP-SMALL
-
461461K0600 WASHER-SPRING, 6MM (BLACK)WASHER-SPRING, 6MM (BLACK)
-
3501135011-1834-1U STAY, REAR CARRIER (GRAY)STAY, REAR CARRIER (GRAY)
-
5302953029-1180-1U CARRIER, FRONT GRAYCARRIER, FRONT GRAY
-
53029B53029-1184-1U CARRIER, REAR GRAYCARRIER, REAR GRAY
-
5604056040-1259 LABEL-WARNING, MAXIMUM LOADLABEL-WARNING, MAXIMUM LOAD
-
56040A56040-1260 LABEL-WARNING, MAXIMUM LOADLABEL-WARNING, MAXIMUM LOAD
-
9202292022-1346 WASHER, 6.5X20X1.6, BLACKWASHER, 6.5X20X1.6, BLACK
-
9202792027-1906 COLLARCOLLAR
-
9207592075-1763 DAMPERDAMPER
-
9215092150-1067 BOLT, 6MMBOLT, 6MM
