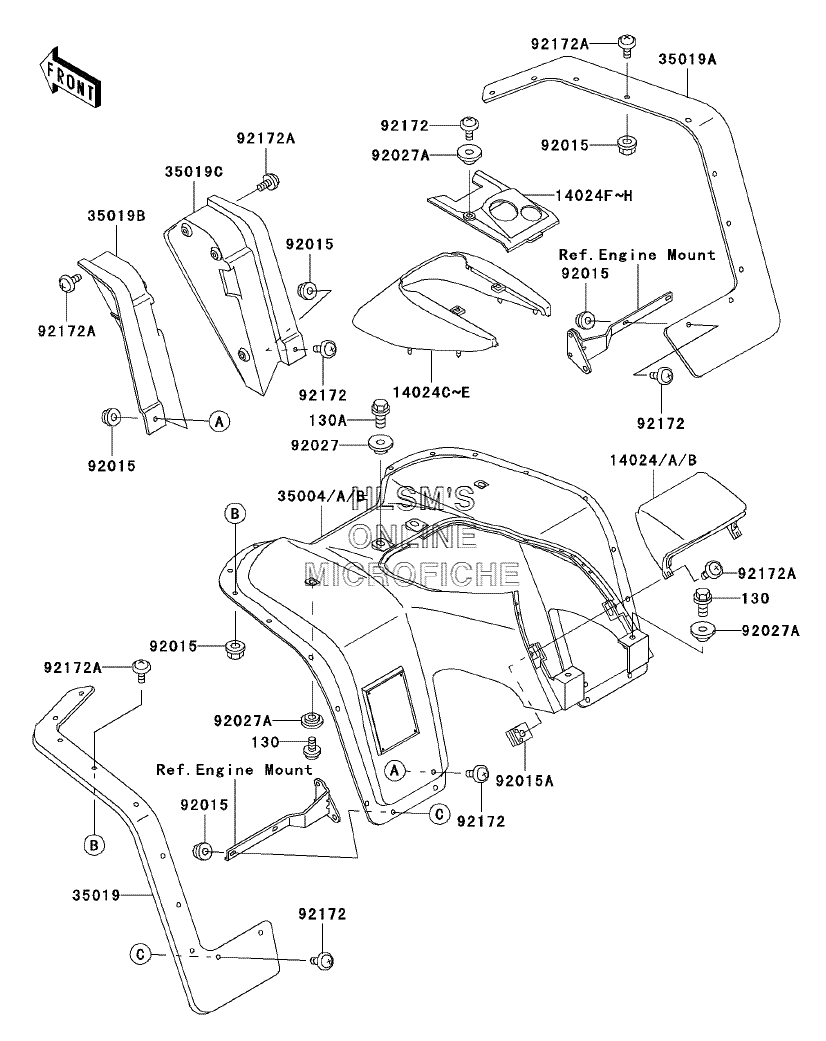

FENDER - FRONT для Kawasaki Bayou 300 (KLF300-B16) - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130C0614 BOLT-FLANGED, 6X14
    BOLT-FLANGED, 6X14
  • 130A
    130C0820 BOLT-FLANGED, 8X20
    BOLT-FLANGED, 8X20
  • 14024
    14024-1093-260 COVER, FRONT FENDER, REAR (A.RED)
    COVER, FRONT FENDER, REAR (A.RED)
  • 14024A
    14024-1093-6A COVER, FRONT FENDER, REAR (H.GREEN)
    COVER, FRONT FENDER, REAR (H.GREEN)
  • 14024C
    14024-1544-260 COVER, FRONT FENDER, FRONT (A.RED)
    COVER, FRONT FENDER, FRONT (A.RED)
  • 14024D
    14024-1544-6A COVER, FRONT FENDER, FRONT (H.GREEN)
    COVER, FRONT FENDER, FRONT (H.GREEN)
  • 14024F
    14024-1545-260 COVER, FUEL TANK (A.RED)
    COVER, FUEL TANK (A.RED)
  • 14024G
    14024-1545-6A COVER, FUEL TANK (H.GREEN)
    COVER, FUEL TANK (H.GREEN)
  • 35004
    35004-1382-260 FENDER-FRONT (A.RED)
    FENDER-FRONT (A.RED)
  • 35004A
    35004-1382-6A FENDER-FRONT (H.GREEN)
    FENDER-FRONT (H.GREEN)
  • 35019
    35019-1146 FLAP, FRONT (LEFT)
    FLAP, FRONT (LEFT)
  • 35019A
    35019-1147 FLAP, FRONT (RIGHT)
    FLAP, FRONT (RIGHT)
  • 35019B
    35019-1208 FLAP, FRONT INSIDE (LEFT)
    FLAP, FRONT INSIDE (LEFT)
  • 35019C
    35019-1209 FLAP, FRONT INSIDE (RIGHT)
    FLAP, FRONT INSIDE (RIGHT)
  • 92015
    92015-1675 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92015A
    92015-1678 NUT, CLAMP, 6MM
    NUT, CLAMP, 6MM
  • 92027
    92027-1909 COLLAR, L=5.6
    COLLAR, L=5.6
  • 92027A
    92027-1964 COLLAR, L=4.7
    COLLAR, L=4.7
  • 92172
    92172-0002 SCREW, 6X18
    SCREW, 6X18
  • 92172A
    92172-0004 SCREW, 6X14
    SCREW, 6X14
