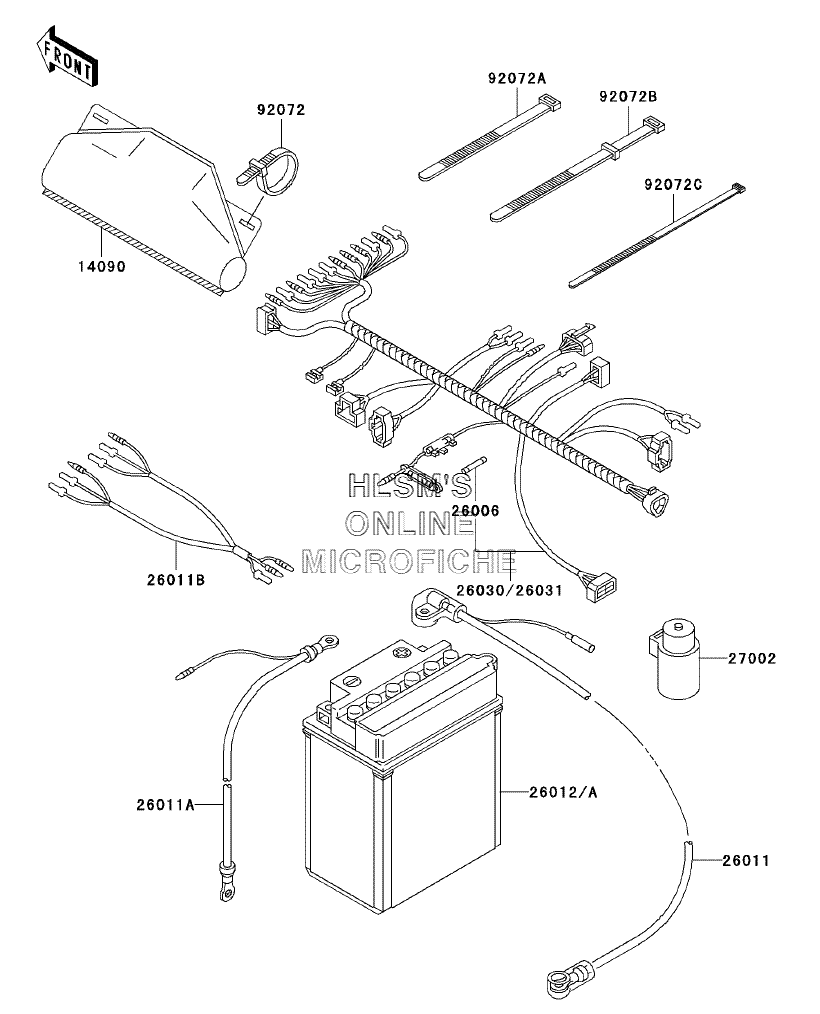

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Bayou 300 (KLF300-B16) - 2003 года выпуска`
-
№АртикулНазвание
-
1409014090-1611 COVER, COUPLERCOVER, COUPLER
-
2600626006-1059 FUSE, 30A, L=30FUSE, 30A, L=30
-
2601126011-1545 WIRE-LEAD, BATTERY (+)WIRE-LEAD, BATTERY (+)
-
26011A26011-1559 WIRE-LEAD, BATTERY (-)WIRE-LEAD, BATTERY (-)
-
26011B26011-1605 WIRE-LEAD, HEAD LAMPWIRE-LEAD, HEAD LAMP
-
26012A26012-1388 BATTERY, YB14A-A2, 12V 14AHBATTERY, YB14A-A2, 12V 14AH
-
2603026030-1803 HARNESS, MAINHARNESS, MAIN
-
2700227002-1095 RELAY-ASSYRELAY-ASSY
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-031 BAND, L=149BAND, L=149
-
92072B92072-056 BAND, L=186BAND, L=186
-
92072C92072-1239 BAND, L=188BAND, L=188
