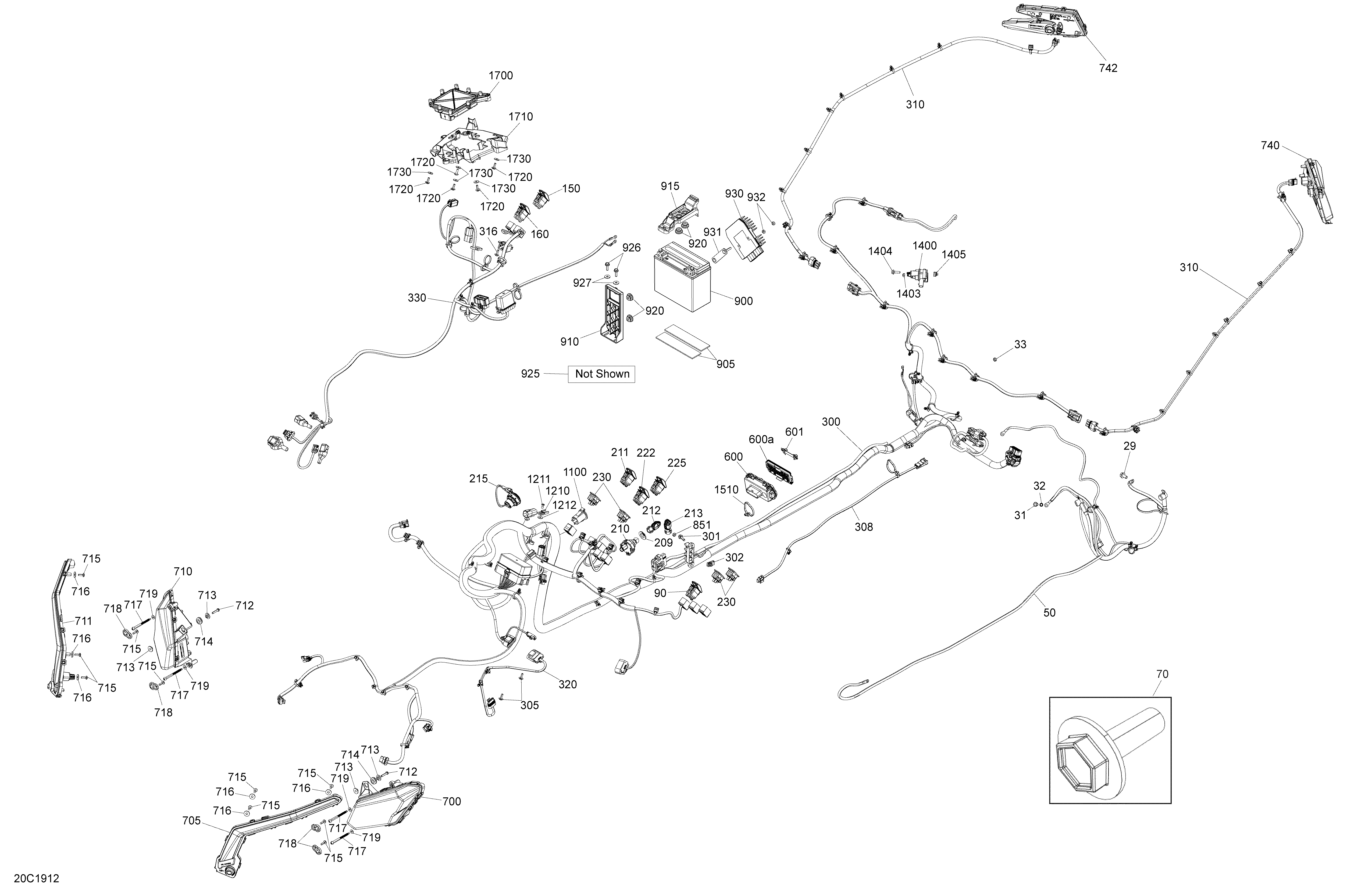

10- Electrical - Packages XRS & XDC для BRP 003 - Maverick Turbo R - International - 2019
-
№АртикулНазвание
-
29207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
31207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50710006022 Starter Wiring HarnessStarter Wiring Harness
-
60710006246 Wiring Harness JunctionWiring Harness Junction
-
70250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
90710004492 Light SwitchLight Switch
-
150710006040 Differntial SwitchDifferntial Switch
-
160710006068 Diffrrential Mode SwitchDiffrrential Mode Switch
-
209278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
210515178225 DESS Switch, RFIDDESS Switch, RFID
-
211710001781 Switch DPSSwitch DPS
-
212710004964 Grey Key RFIDGrey Key RFID
-
213710005232 Green Key RFIDGreen Key RFID
-
215710005213 Start-Stop ButtonStart-Stop Button
-
222710005909 Driving Mode SwitchDriving Mode Switch
-
225710002053 Switch, Over rideSwitch, Over ride
-
230710001999 Plug CarlingPlug Carling
-
300710006253 Main Wiring Harness. Includes 300 to 300aMain Wiring Harness. Includes 300 to 300a
-
301207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
302250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
305250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
310710006424 Rear Wiring HarnessRear Wiring Harness
-
316250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
320710005291 Cable Throttle PedalCable Throttle Pedal
-
330710006201 Front Differential Wiring HarnessFront Differential Wiring Harness
-
600710006334 SpeedometerSpeedometer
-
600a415129349 LensLens
-
601415129355 Speedometer ButtonSpeedometer Button
-
700710004658 LH Low Beam Ass'yLH Low Beam Ass'y
-
705710004994 LH Signature BeamLH Signature Beam
-
710710004659 RH Low Beam Ass'yRH Low Beam Ass'y
-
711710004995 RH Signature BeamRH Signature Beam
-
712241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
713710004749 Shoulder BushingShoulder Bushing
-
714293720053 GrommetGrommet
-
715250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
716234062670 Flat Washer, StainlessFlat Washer, Stainless
-
717710005837 Ajustment ScrewAjustment Screw
-
718710005097 Adjustment GuideAdjustment Guide
-
719293300192 O-RingO-Ring
-
740710004743 LH Tail LightLH Tail Light
-
742710004744 RH Tail LightRH Tail Light
-
851232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905293830126 Rubber PadRubber Pad
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
925250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
927234062410 Flat Washer 6 mmFlat Washer 6 mm
-
930710005842 VOLTAGE REGULATORVOLTAGE REGULATOR
-
931710005782 BracketBracket
-
932232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
935710006471 Battery Cable CapBattery Cable Cap
-
1100710005374 12V Power Outlet12V Power Outlet
-
1210270000141 ClipClip
-
1211390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
1212391301600 WasherWasher
-
1400278003012 Starter RelayStarter Relay
-
1403232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1404207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1405250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1700710006479 Front Drive ModuleFront Drive Module
-
1710710005807 FDM SupportFDM Support
-
1720250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
1730250200025 Washer M5Washer M5
