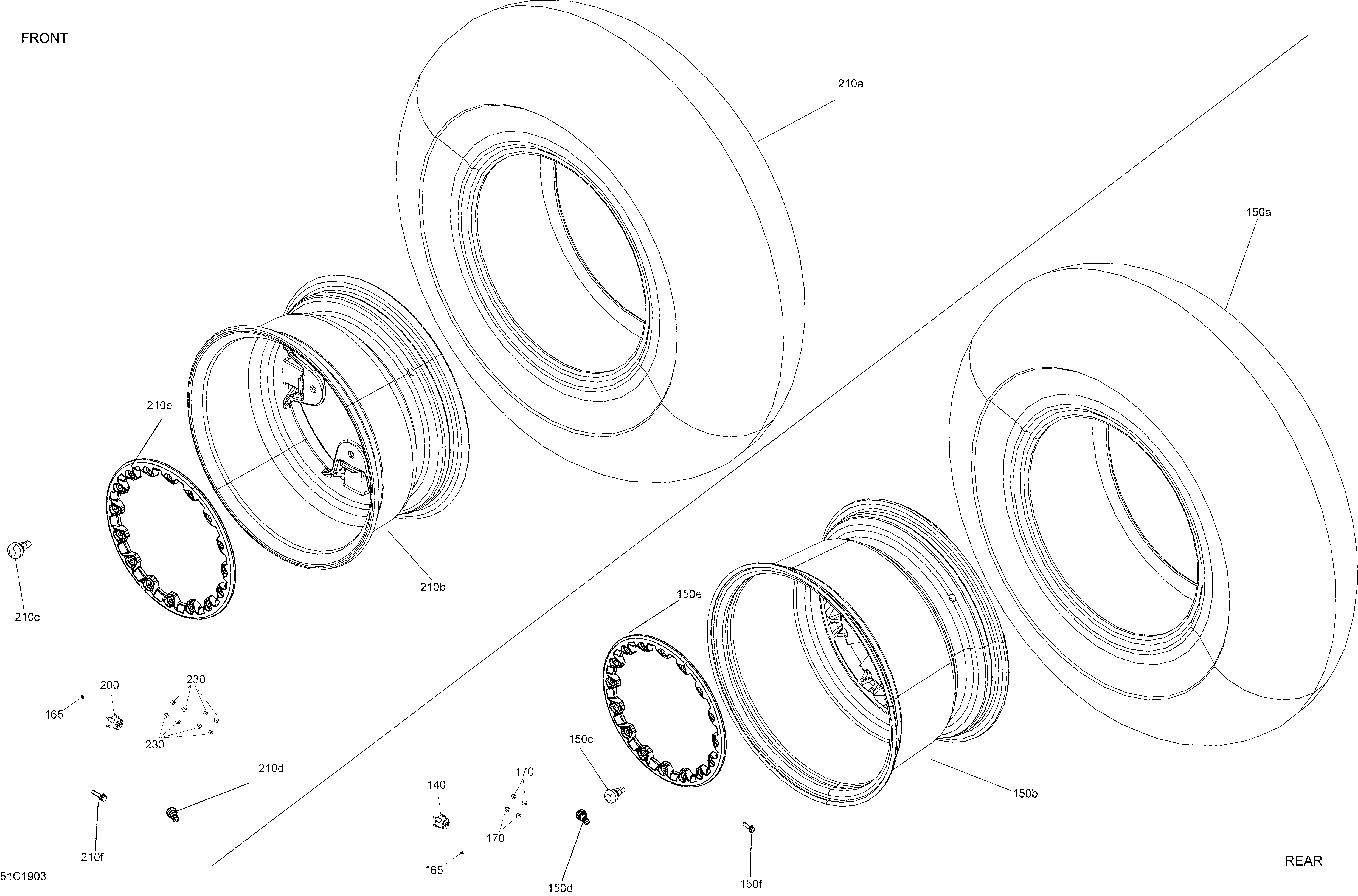

07- Wheels And Tires - XRS - Hyper Silver для BRP 003 - Maverick Turbo R - International - 2019
-
№АртикулНазвание
-
165293000110 Valve CapValve Cap
-
200705401841 Wheel CapWheel Cap
-
210a705402082 Tire Maxxis 30X10X14Tire Maxxis 30X10X14
-
210b705402357 Liquid Gold, 14'' RimLiquid Gold, 14'' Rim
-
210c293450360 InsertInsert
-
210d705400193 Rim Valve With CapRim Valve With Cap
-
210e705402358 Can-Am Red, Bead LockCan-Am Red, Bead Lock
-
210f250000893 Screw Flanger M8 X 25Screw Flanger M8 X 25
-
230250100196 Black Wheel Nut M12 X 1.50Black Wheel Nut M12 X 1.50
-
140705401841 Wheel CapWheel Cap
-
150a705402082 Tire Maxxis 30X10X14Tire Maxxis 30X10X14
-
150b705402357 Liquid Gold, 14'' RimLiquid Gold, 14'' Rim
-
150c293450360 InsertInsert
-
150d705400193 Rim Valve With CapRim Valve With Cap
-
150e705402358 Can-Am Red, Bead LockCan-Am Red, Bead Lock
-
150f250000893 Screw Flanger M8 X 25Screw Flanger M8 X 25
-
170250100196 Black Wheel Nut M12 X 1.50Black Wheel Nut M12 X 1.50
