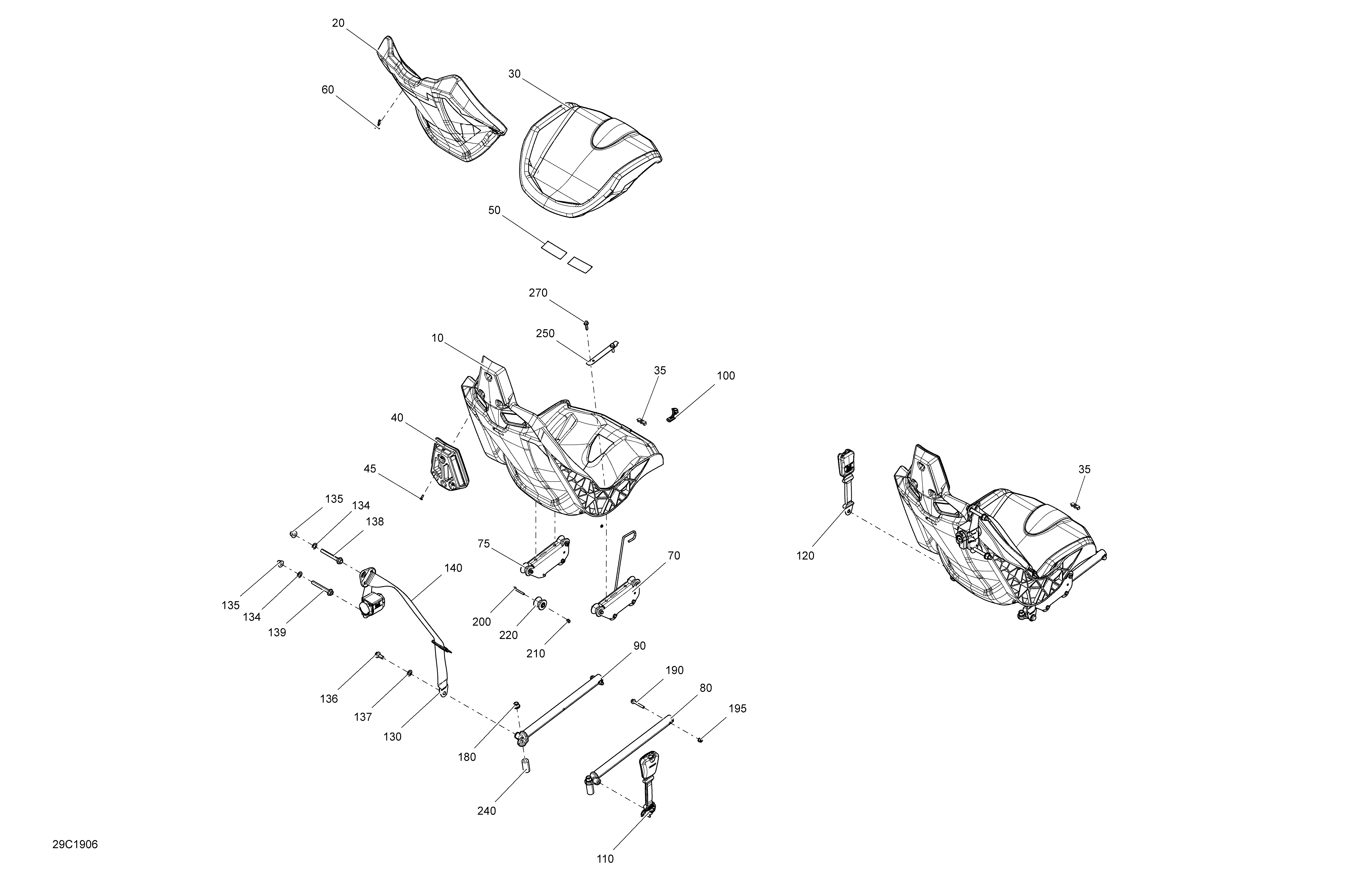

09- Seat - Turbo R для BRP 003 - Maverick Turbo R - International - 2019

  • №
    Артикул
    Название
  • 10
    708002065 Seat Shell
    Seat Shell
  • 20
    708002121 Backrest Ass'y. Package STD
    Backrest Ass'y. Package STD
  • 20
    708002674 Backrest. Package XMR
    Backrest. Package XMR
  • 20
    708002676 Backrest. Except Packages STD, XMR, XRS & Hyper Silver
    Backrest. Except Packages STD, XMR, XRS & Hyper Silver
  • 20
    708002874 Backrest Ass'y. Package XRS & Hyper Silver
    Backrest Ass'y. Package XRS & Hyper Silver
  • 30
    708002124 Cushion Ass'y. Package STD
    Cushion Ass'y. Package STD
  • 30
    708002382 Cushion Ass'y. Package XRS & Hyper Silver
    Cushion Ass'y. Package XRS & Hyper Silver
  • 30
    708002672 Seat Base Ass'y. Package XMR
    Seat Base Ass'y. Package XMR
  • 30
    708002678 Seat Base Ass'y. Except Packages STD, XMR, XRS & Hyper Silver
    Seat Base Ass'y. Except Packages STD, XMR, XRS & Hyper Silver
  • 35
    708002670 Stopper
    Stopper
  • 40
    708002131 Headrest
    Headrest
  • 45
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 50
    708002535 Velcro Tape
    Velcro Tape
  • 60
    708002533 Button Head Tie Rap
    Button Head Tie Rap
  • 70
    703500997 Trolley
    Trolley
  • 75
    708002298 Trolley
    Trolley
  • 80
    708002725 Painted Rail
    Painted Rail
  • 90
    708002724 Painted Rail
    Painted Rail
  • 100
    708002655 Handle
    Handle
  • 110
    708002714 Driver Buckle. Except Packages XRS & XRC
    Driver Buckle. Except Packages XRS & XRC
  • 120
    708002385 Passenger Buckle. Except Packages XRS & XRC
    Passenger Buckle. Except Packages XRS & XRC
  • 130
    708002654 Safety Belt Passenger. Except Packages XRS & XRC
    Safety Belt Passenger. Except Packages XRS & XRC
  • 130
    708002918 Safety Belt 4 Points. Package XRC. Includes 130 to 130a
    Safety Belt 4 Points. Package XRC. Includes 130 to 130a
  • 130a
    708002825 RH Shoulder Pad. Package XRC
    RH Shoulder Pad. Package XRC
  • 130
    708002918 Safety Belt 4 Points. Package XRS. Includes 130 to 130a
    Safety Belt 4 Points. Package XRS. Includes 130 to 130a
  • 130a
    708002825 RH Shoulder Pad. Package XRS
    RH Shoulder Pad. Package XRS
  • 134
    250200102 Flat Washer M12. Except Packages XRS & XRC
    Flat Washer M12. Except Packages XRS & XRC
  • 135
    233221416 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 136
    708002504 Safety Belt screw
    Safety Belt screw
  • 137
    708000891 Position Washer
    Position Washer
  • 138
    250000896 Hex. Flanged Screw M12 X 97.5. Except Packages XRS & XRC
    Hex. Flanged Screw M12 X 97.5. Except Packages XRS & XRC
  • 139
    250000876 Hex. Flanged Screw M12 X 95. Except Packages XRS & XRC
    Hex. Flanged Screw M12 X 95. Except Packages XRS & XRC
  • 140
    708002811 Safety Belt Driver Side. Except Packages XRS & XRC
    Safety Belt Driver Side. Except Packages XRS & XRC
  • 140
    708002917 Safety Belt 4 Points. Package XRC. Includes 140 to 140a
    Safety Belt 4 Points. Package XRC. Includes 140 to 140a
  • 140a
    708002824 LH Shoulder Pad. Package XRC
    LH Shoulder Pad. Package XRC
  • 140
    708002917 Safety Belt 4 Points. Package XRS. Includes 140 to 140a
    Safety Belt 4 Points. Package XRS. Includes 140 to 140a
  • 140a
    708002824 LH Shoulder Pad. Package XRS
    LH Shoulder Pad. Package XRS
  • 180
    233221416 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 190
    207685554 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 195
    233281464 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 200
    207665054 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 210
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 220
    708002134 Wheel
    Wheel
  • 240
    708002299 Rear Bushing
    Rear Bushing
  • 250
    708002480 Plate
    Plate
  • 270
    207583044 Hex. Flanged Screw M8 X 30, Scotch Grip
    Hex. Flanged Screw M8 X 30, Scotch Grip
