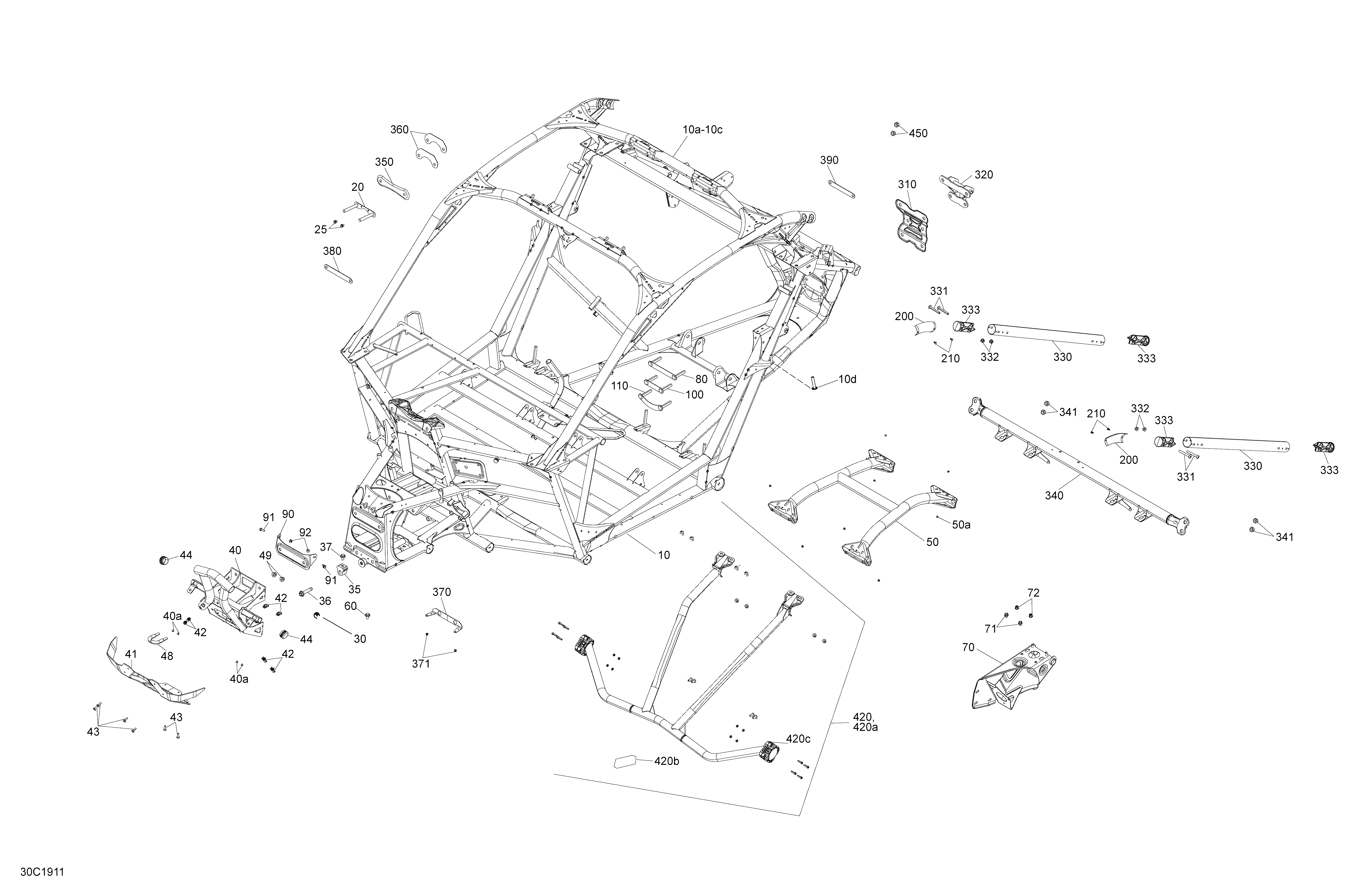

09- Frame - Turbo R для BRP 003 - Maverick Turbo R - International - 2019

  • №
    Артикул
    Название
  • 10>10c
    715005695 Black Frame Kit. Includes 10 to 10c
    Black Frame Kit. Includes 10 to 10c
  • 10a>10a3
    715005713 Front Black Cage Kit. Includes 10a to 10a3
    Front Black Cage Kit. Includes 10a to 10a3
  • 10>10c
    715005709 Yellow Frame Kit. Includes 10 to 10c
    Yellow Frame Kit. Includes 10 to 10c
  • 10a>10a3
    715005719 Front Yellow Cage Kit. Includes 10a to 10a3
    Front Yellow Cage Kit. Includes 10a to 10a3
  • 10>10c
    715005697 Hyper Silver Frame Kit. Includes 10 to 10c
    Hyper Silver Frame Kit. Includes 10 to 10c
  • 10a>10a3
    715005715 Front Hyper Silver Cage Kit. Includes 10a to 10a3
    Front Hyper Silver Cage Kit. Includes 10a to 10a3
  • 10>10c
    715005699 Blue Frame Kit. Includes 10 to 10c
    Blue Frame Kit. Includes 10 to 10c
  • 10a>10a3
    715005717 Front Blue Cage Kit. Includes 10a to 10a3
    Front Blue Cage Kit. Includes 10a to 10a3
  • 10a1
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 10a2
    207523036 Hex. Flanged Screw S.Grip M12 X 30
    Hex. Flanged Screw S.Grip M12 X 30
  • 10a3
    233221414 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 10b
    233701400 Hexagonal Nut
    Hexagonal Nut
  • 10c
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 10d
    250000913 Weld Pin 8mm X 40mm
    Weld Pin 8mm X 40mm
  • 20
    705207424 E-Coat Front Plate
    E-Coat Front Plate
  • 25
    207561044 Flanged Screw M6 X 10, Scotch Grip
    Flanged Screw M6 X 10, Scotch Grip
  • 30
    250100199 Insert Half Hex Body M6 x 1.0
    Insert Half Hex Body M6 x 1.0
  • 35
    705206992 Bumper Link. Packages XMR & XRC
    Bumper Link. Packages XMR & XRC
  • 36
    250000987 Screw-Hex.Flange DIN.6921 M12X1.75. Packages XMR & XRC
    Screw-Hex.Flange DIN.6921 M12X1.75. Packages XMR & XRC
  • 37
    250000060 Flanged Screw M10 X 16, Scotch Grip. Packages XMR & XRC
    Flanged Screw M10 X 16, Scotch Grip. Packages XMR & XRC
  • 40
    705205746 Black, Front Bumper. Packages XDS, STD & XRS. Includes 40 to 40a
    Black, Front Bumper. Packages XDS, STD & XRS. Includes 40 to 40a
  • 40
    705207305 Front Bumper. Hyper Silver Hood. Includes 40 to 40a
    Front Bumper. Hyper Silver Hood. Includes 40 to 40a
  • 40
    705206869 Sunburst Yellow, Front Bumper. Package XMR. Includes 40 to 40a
    Sunburst Yellow, Front Bumper. Package XMR. Includes 40 to 40a
  • 40a
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 41
    705206871 Front Master Plate. Packages XMR & XRC
    Front Master Plate. Packages XMR & XRC
  • 42
    250000957 Extruded Panel Nut M6. Packages XMR & XRC
    Extruded Panel Nut M6. Packages XMR & XRC
  • 43
    250000722 Torx Screw M6 X 20. Packages XMR & XRC
    Torx Screw M6 X 20. Packages XMR & XRC
  • 44
    705202455 Cap. Packages XMR & XRC
    Cap. Packages XMR & XRC
  • 48
    705206983 U-Clamp. Packages XMR & XRC
    U-Clamp. Packages XMR & XRC
  • 49
    233201436 Flanged Elastic Nut M10. Packages XMR & XRC
    Flanged Elastic Nut M10. Packages XMR & XRC
  • 50
    705206774 Added Cage. Black. Includes 50 to 50a
    Added Cage. Black. Includes 50 to 50a
  • 50
    705207307 Added Cage. Hyper Silver. Includes 50 to 50a
    Added Cage. Hyper Silver. Includes 50 to 50a
  • 50
    705206721 Added Cage. SunBurst Yellow. Includes 50 to 50a
    Added Cage. SunBurst Yellow. Includes 50 to 50a
  • 50a
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 60
    233221466 Elastic Flange Nut M12. Package XMR
    Elastic Flange Nut M12. Package XMR
  • 70
    705206924 DPS Support
    DPS Support
  • 71
    207581244 Hex. Flanged Screw M8 X 12, Scotch Grip
    Hex. Flanged Screw M8 X 12, Scotch Grip
  • 72
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 80
    705206852 Rear Upper Plate
    Rear Upper Plate
  • 90
    705206877 Stifner Plate
    Stifner Plate
  • 91
    207661654 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 92
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 100
    705206853 Front Plate
    Front Plate
  • 110
    705206854 Rear Plate
    Rear Plate
  • 200
    705205926 Black, LH Link Plate. Black
    Black, LH Link Plate. Black
  • 200
    705206651 Link Plate. Hyper Silver
    Link Plate. Hyper Silver
  • 200
    705207308 Link Plate. SunBurst Yellow
    Link Plate. SunBurst Yellow
  • 210
    293150102 Rivet 3/16''
    Rivet 3/16''
  • 310
    705205750 Rear Plate
    Rear Plate
  • 320
    715004450 Black, Rear Attachement Hook. Packages XMR & XRC
    Black, Rear Attachement Hook. Packages XMR & XRC
  • 330
    705205751 Black, Rear Mount. Black
    Black, Rear Mount. Black
  • 330
    705206649 Rear C-Member. Hyper Silver
    Rear C-Member. Hyper Silver
  • 330
    705207382 Rear C-Member. SunBurst Yellow
    Rear C-Member. SunBurst Yellow
  • 331
    250000901 Torx Truss M8 X 65
    Torx Truss M8 X 65
  • 332
    250100025 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 333
    705205634 Sleeve
    Sleeve
  • 340
    705205268 Belt Bar
    Belt Bar
  • 341
    232521416 Elastic Flanged Stop Nut M12
    Elastic Flanged Stop Nut M12
  • 350
    705207425 Upper Arm Link
    Upper Arm Link
  • 360
    705205295 Lower Arm Link
    Lower Arm Link
  • 365
    705207438 Front Plate. Package STD & XRS
    Front Plate. Package STD & XRS
  • 370
    706203122 Support
    Support
  • 371
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 380
    705206069 Front Upper Plate
    Front Upper Plate
  • 390
    705206511 Rear Upper Plate. Package STD & XRS
    Rear Upper Plate. Package STD & XRS
  • 420
    715002889 Black Front Intrusion Bar. Package XRC. Includes 420 to 420c
    Black Front Intrusion Bar. Package XRC. Includes 420 to 420c
  • 420a
    715003531 Common Parts Kit. Package XRC. Includes 420a to 420b
    Common Parts Kit. Package XRC. Includes 420a to 420b
  • 420b
    704904566 CAN-AM Decal. Package XRC
    CAN-AM Decal. Package XRC
  • 420c
    705205709 Black, Clamp. Package XRC
    Black, Clamp. Package XRC
  • 450
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
