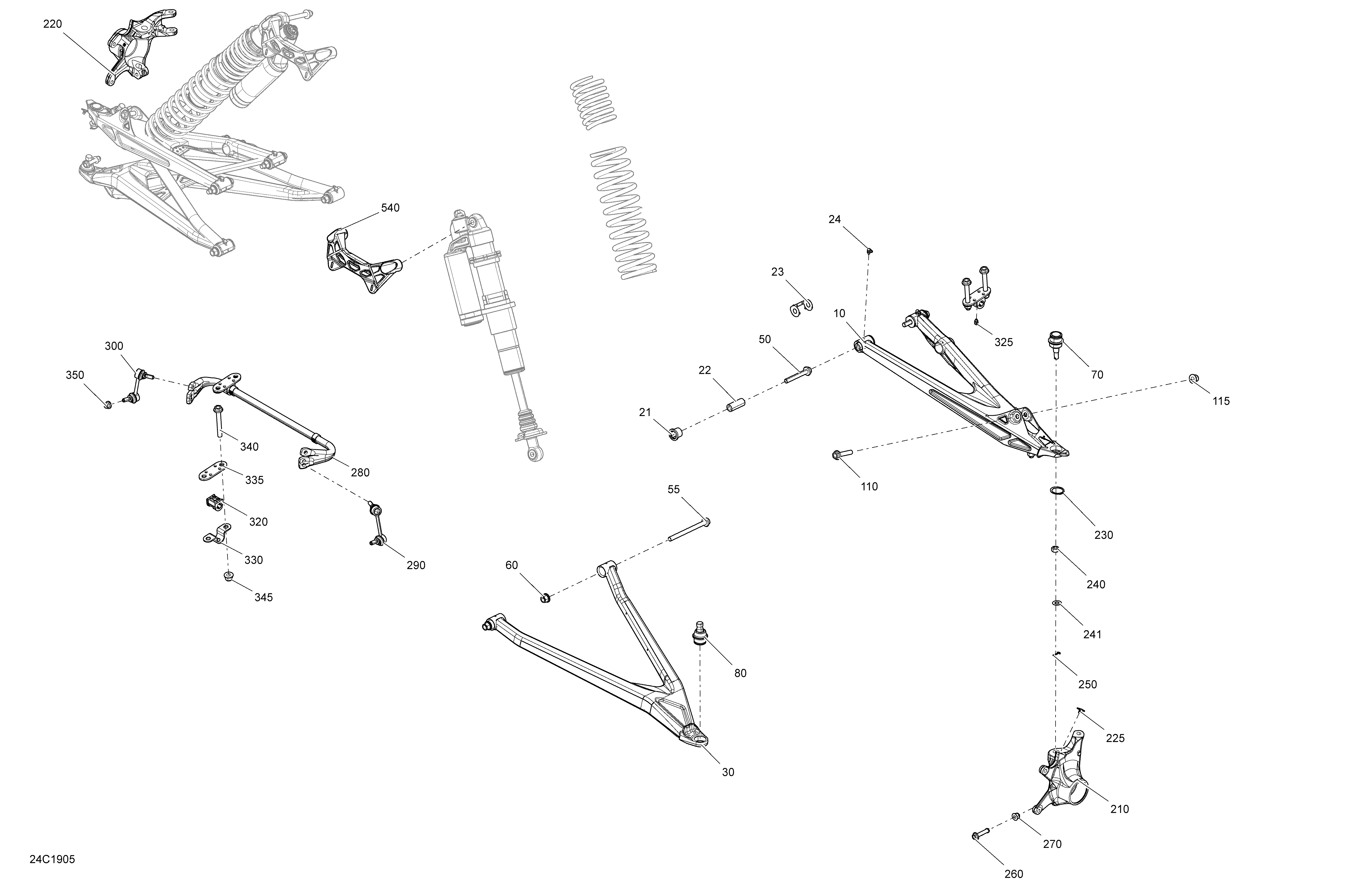

07- Front Suspension - Turbo R - XMR для BRP 003 - Maverick Turbo R - International - 2019

  • №
    Артикул
    Название
  • 10
    703501054 Sunburst Yellow, LH Upper Suspension Arm
    Sunburst Yellow, LH Upper Suspension Arm
  • 10
    703501057 Sunburst Yellow, RH Upper Suspension Arm
    Sunburst Yellow, RH Upper Suspension Arm
  • 21
    706201659 Cushion
    Cushion
  • 22
    706202257 Interior Bushing
    Interior Bushing
  • 23
    706202300 Wear Plate
    Wear Plate
  • 24
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 30
    706203100 Yellow, LH Suspension Arm
    Yellow, LH Suspension Arm
  • 30
    706203101 Yellow, RH Suspension Arm
    Yellow, RH Suspension Arm
  • 50
    250000859 Screw Flange M12 X 85
    Screw Flange M12 X 85
  • 55
    250000861 Screw Flange M12 X 145
    Screw Flange M12 X 145
  • 60
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 70
    706203084 Ball Joint
    Ball Joint
  • 80
    706202045 Ball Joint
    Ball Joint
  • 110
    250000857 Screw Flange M12 X 60
    Screw Flange M12 X 60
  • 115
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 210
    706202759 LH Knuckle
    LH Knuckle
  • 220
    706202760 RH Knuckle
    RH Knuckle
  • 225
    706202502 Wear Plate
    Wear Plate
  • 230
    293370035 Circlip
    Circlip
  • 240
    250100099 Nut M12
    Nut M12
  • 241
    250200086 Flat Washer
    Flat Washer
  • 250
    211400017 Cotter Pin
    Cotter Pin
  • 260
    207605044 Hex. Flanged Screw M10 X 50
    Hex. Flanged Screw M10 X 50
  • 270
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 280
    706203639 Stabilizer Bar Ass'y
    Stabilizer Bar Ass'y
  • 290
    706203611 LH Stabilizer Bar Link
    LH Stabilizer Bar Link
  • 300
    706203612 RH Stabilizer Bar Link
    RH Stabilizer Bar Link
  • 320
    706202849 Bushing
    Bushing
  • 325
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 330
    706202460 Clamp
    Clamp
  • 335
    706202551 Plate Support
    Plate Support
  • 340
    250000876 Hex. Flanged Screw M12 X 95
    Hex. Flanged Screw M12 X 95
  • 345
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 350
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 540
    706203127 Link
    Link
