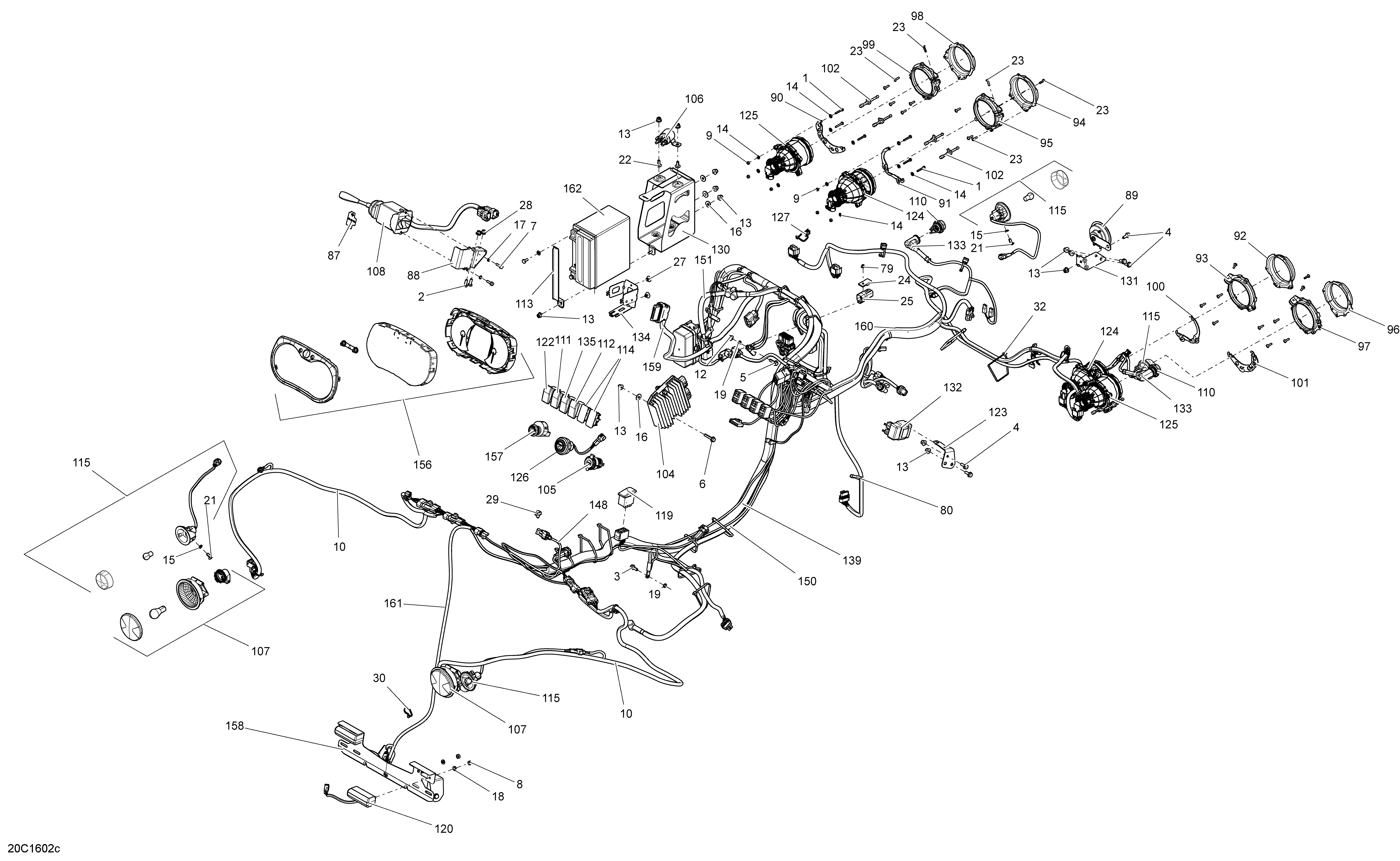

10- Electrical System - XDS-XRS для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
2207361644 Hex. Screw M6 X 16, Scotch Grip. Europe ModelHex. Screw M6 X 16, Scotch Grip. Europe Model
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207661644 Hex. Flanged Screw M6 X 16. Europe ModelHex. Flanged Screw M6 X 16. Europe Model
-
5207662044 Hex. Flanged Screw M6 X 20. Except MAX ModelHex. Flanged Screw M6 X 20. Except MAX Model
-
6207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
7210251650 Hex. Forming Screw M5 X 16. Europe ModelHex. Forming Screw M5 X 16. Europe Model
-
8232061600 Hex. Nut M6Hex. Nut M6
-
9232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
10710004685 Rear Harness. Except Europe ModelRear Harness. Except Europe Model
-
10710004686 Rear Harness. Europe ModelRear Harness. Europe Model
-
11232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
12233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14234051410 Flat Washer M5Flat Washer M5
-
15234061410 Flat Washer 6 mm. Europe ModelFlat Washer 6 mm. Europe Model
-
16234062410 Flat Washer 6 mm. Except MAX ModelFlat Washer 6 mm. Except MAX Model
-
16234062670 Flat Washer, StainlessFlat Washer, Stainless
-
17234151401 Lock Washer 5 mm. Europe ModelLock Washer 5 mm. Europe Model
-
18234161601 Lock Washer Helical M6Lock Washer Helical M6
-
19234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
20250000048 Panel Nut M6 X 1.0. MAX ModelPanel Nut M6 X 1.0. MAX Model
-
21250000439 Torx Truss Screw M6 X 14. Europe ModelTorx Truss Screw M6 X 14. Europe Model
-
22250000717 Torx Head Screw M6 X 16. Except MAX ModelTorx Head Screw M6 X 16. Except MAX Model
-
23250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
24270000141 ClipClip
-
25278002704 Diagnostic ConnectorDiagnostic Connector
-
26278003012 Starter Relay. MAX ModelStarter Relay. MAX Model
-
27293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
28293450274 Insert. Europe ModelInsert. Europe Model
-
29293730018 Mount DartMount Dart
-
30293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
32293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750009 Tie-Rap 173 mm. MAX ModelTie-Rap 173 mm. MAX Model
-
79390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
80414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
86414227300 Clip. Europe ModelClip. Europe Model
-
87704902614 Flasher Decal. Europe ModelFlasher Decal. Europe Model
-
88709400810 Flasher Arm Support. Europe ModelFlasher Arm Support. Europe Model
-
89710000983 Horn. Europe ModelHorn. Europe Model
-
90710001036 LH High Light SupportLH High Light Support
-
91710001037 LH Low Light SupportLH Low Light Support
-
92710001081 RH Low Front HousingRH Low Front Housing
-
93710001082 RH Low Rear HousingRH Low Rear Housing
-
94710001083 LH Low Front HousingLH Low Front Housing
-
95710001084 LH Low Rear HousingLH Low Rear Housing
-
96710001085 RH High Front HousingRH High Front Housing
-
97710001086 RH High Rear HousingRH High Rear Housing
-
98710001087 LH High Front HousingLH High Front Housing
-
99710001088 LH High Rear HousingLH High Rear Housing
-
100710001094 RH Low Light SupportRH Low Light Support
-
101710001115 RH High Light SupportRH High Light Support
-
102710001147 Setting ScrewSetting Screw
-
104710001191 Voltage RegulatorVoltage Regulator
-
105710001248 Outlet DCOutlet DC
-
106710001364 Starter Relay. Except MAX ModelStarter Relay. Except MAX Model
-
107710001645 Tail LightTail Light
-
107a520000758 BulbBulb
-
108710001721 Turn Signal. Europe ModelTurn Signal. Europe Model
-
109710001725 Hi/Low Switch. Except Europe ModelHi/Low Switch. Except Europe Model
-
110710001726 Day Light. Europe ModelDay Light. Europe Model
-
111710001737 SwitchSwitch
-
112710001781 Switch DPS. Package XDS-DPS, XDSXRSSwitch DPS. Package XDS-DPS, XDSXRS
-
113710001916 Battery HolderBattery Holder
-
114710001999 Plug CarlingPlug Carling
-
115710002964 Flasher. Europe ModelFlasher. Europe Model
-
119710002053 Switch, Over RideSwitch, Over Ride
-
120710002055 License Light. Europe ModelLicense Light. Europe Model
-
120a219800128 BulbBulb
-
122710002076 Switch. Europe ModelSwitch. Europe Model
-
123710002408 Support. Europe ModelSupport. Europe Model
-
124710002524 Low Beam Ass'yLow Beam Ass'y
-
124a415129249 Halogen BulbHalogen Bulb
-
125710002525 High Beam Ass'yHigh Beam Ass'y
-
125a415129249 Halogen BulbHalogen Bulb
-
126710002594 Engine START ButtonEngine START Button
-
127710002896 Tie-Rap Clip. Europe ModelTie-Rap Clip. Europe Model
-
130710003129 Battery Support. Except MAX ModelBattery Support. Except MAX Model
-
131710003170 Support. Europe ModelSupport. Europe Model
-
132710003239 Flasher Unit. Europe ModelFlasher Unit. Europe Model
-
133710003269 Cap ProtectorCap Protector
-
134710003335 Fuse HolderFuse Holder
-
135710003541 Switch PPS SportSwitch PPS Sport
-
136710003582 Cap. MAX ModelCap. MAX Model
-
137710003602 Battery Rubber Pad. MAX ModelBattery Rubber Pad. MAX Model
-
139710005094 Harness Ass'y. Engine 1000 Except MAX ModelHarness Ass'y. Engine 1000 Except MAX Model
-
139710005094 Harness Ass'y. Engine 1000T Except MAX ModelHarness Ass'y. Engine 1000T Except MAX Model
-
148710004349 Harness Ass'y. Engine 1000THarness Ass'y. Engine 1000T
-
150710004383 Positive Cable. Except MAX ModelPositive Cable. Except MAX Model
-
151710004920 Positive Cable. MAX ModelPositive Cable. MAX Model
-
151710004384 Positive Cable. Package STD, DPSPositive Cable. Package STD, DPS
-
151710004878 Positive Cable. Except MAX Model, Except EuropePositive Cable. Except MAX Model, Except Europe
-
153710004390 Positive Cable. MAX ModelPositive Cable. MAX Model
-
154710004393 Positive Cable. MAX ModelPositive Cable. MAX Model
-
156710004547 Multifunction SpeedometerMultifunction Speedometer
-
157710003847 Ignition Switch. Except Europe ModelIgnition Switch. Except Europe Model
-
157710004570 Ignition Switch. Europe ModelIgnition Switch. Europe Model
-
158710004573 Light Support. Europe ModelLight Support. Europe Model
-
159710004578 Harness Ass'y. MAX Model Engine 1000Harness Ass'y. MAX Model Engine 1000
-
159710004578 Harness Ass'y. Engine 1000T MAX ModelHarness Ass'y. Engine 1000T MAX Model
-
160710004346 Harness Ass'y. Europe ModelHarness Ass'y. Europe Model
-
161710004687 Harness Ass'y. Europe ModelHarness Ass'y. Europe Model
-
162410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
