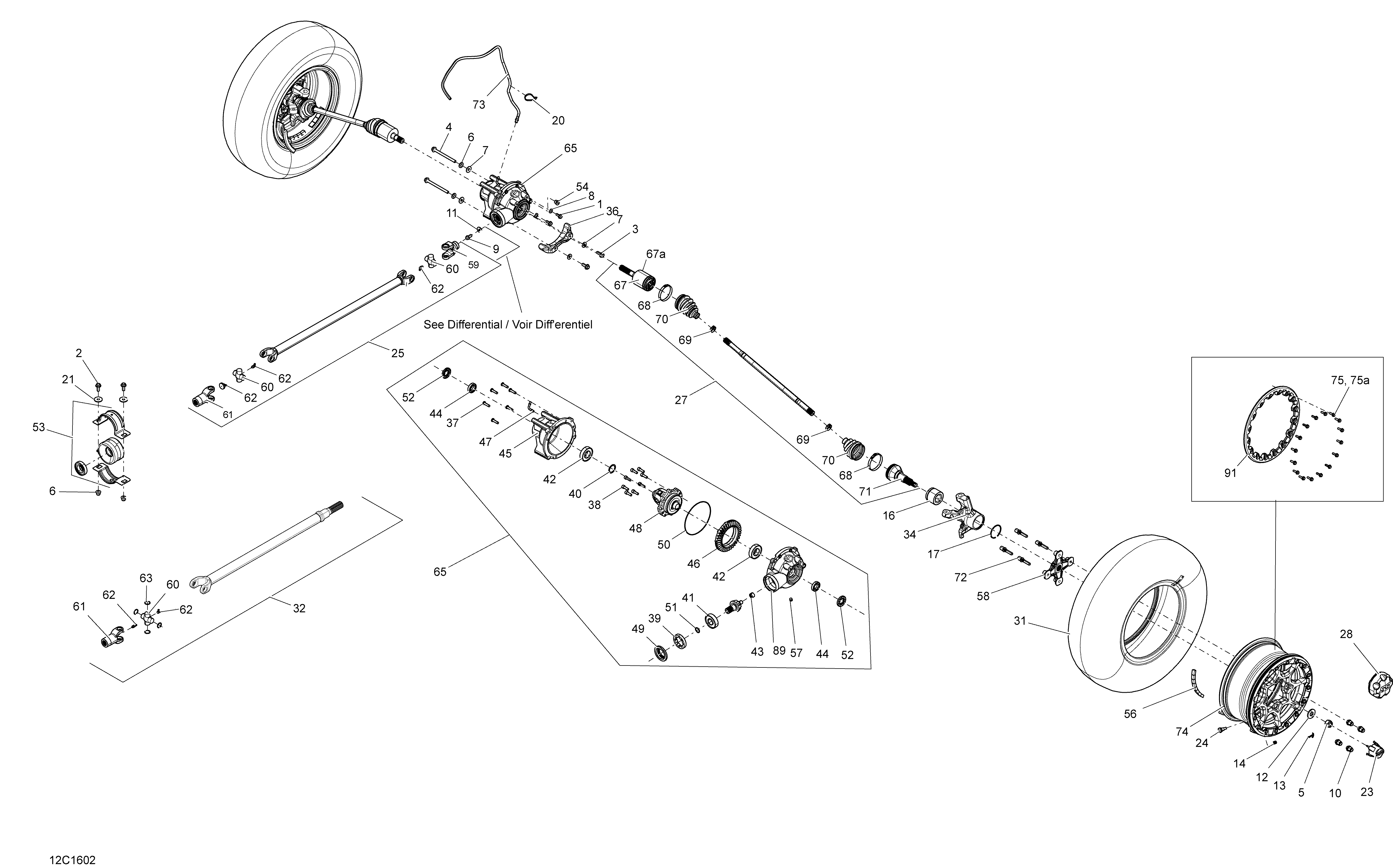

07- Drive System, Front для BRP Maverick - Maverick MAX - 2016

№

Артикул

Название
1

207582044 Hex. Flanged Screw M8 X 20, Scotch Grip

Hex. Flanged Screw M8 X 20, Scotch Grip
2

207602544 Hex. Flanged Screw M10 X 25. MAX Model

Hex. Flanged Screw M10 X 25. MAX Model
3

207602546 Hex. Flanged Screw M10 X 25

Hex. Flanged Screw M10 X 25
4

230602546 Hex. Flanged Screw M10 X 125

Hex. Flanged Screw M10 X 125
5

250100047 Hex. Castellated Nut M18

Hex. Castellated Nut M18
6

233201414 Hex. Flanged Elastic Nut M10. MAX Model

Hex. Flanged Elastic Nut M10. MAX Model
7

234201474 Conical Spring Washer 10 mm

Conical Spring Washer 10 mm
8

234281474 Conical Spring Washer M8

Conical Spring Washer M8
9

250000847 Hex. Flanged Screw M10 X 20

Hex. Flanged Screw M10 X 20
10

250100100 Black Wheel Nut M10 X 1.25

Black Wheel Nut M10 X 1.25
11

250200014 Flat Washer M10

Flat Washer M10
12

250200049 Spring Washer

Spring Washer
13

250400071 Cotter Pin

Cotter Pin
14

293000110 Valve Cap

Valve Cap
15

293250246 O-Ring

O-Ring
16

293350040 Cone Bearing

Cone Bearing
17

293370019 Circlip

Circlip
20

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
21

503032900 Washer. MAX Model

Washer. MAX Model
22

705400780 Wear Sleeve. Except Package XMR

Wear Sleeve. Except Package XMR
23

705400928 Wheel Cap. Except Package XMR, XDSSTD

Wheel Cap. Except Package XMR, XDSSTD
23

705401541 Wheel Cap. Package XDSSTD

Wheel Cap. Package XDSSTD
24

705400193 Rim Valve With Cap

Rim Valve With Cap
25

703500909 Drive Axle Ass'y

Drive Axle Ass'y
27

705401235 LH Constant-Speed Universal Joint. Package STD - DPS - XDSXRS

LH Constant-Speed Universal Joint. Package STD - DPS - XDSXRS
27

705401236 RH Constant-Speed Universal Joint. Package STD - DPS - XDSXRS

RH Constant-Speed Universal Joint. Package STD - DPS - XDSXRS
27

705401235 LH Constant-Speed Universal Joint. Package XDS - XDSDPS, XDSSTD

LH Constant-Speed Universal Joint. Package XDS - XDSDPS, XDSSTD
27

705401236 RH Constant-Speed Universal Joint. Package XDS - XDSDPS, XDSSTD

RH Constant-Speed Universal Joint. Package XDS - XDSDPS, XDSSTD
27

705401368 LH Constant-Speed Universal Joint. Package XC - XXC

LH Constant-Speed Universal Joint. Package XC - XXC
27

705401367 RH Constant-Speed Universal Joint. Package XC - XXC

RH Constant-Speed Universal Joint. Package XC - XXC
27

705401807 LH Constant-Speed Universal Joint. Package XMR

LH Constant-Speed Universal Joint. Package XMR
27

705401808 RH Constant-Speed Universal Joint. Package XMR

RH Constant-Speed Universal Joint. Package XMR
27a

705400036 Wear Ring

Wear Ring
28

705401318 Wheel Cap. Package XMR

Wheel Cap. Package XMR
31

705401385 Front Tire Maxxis 27X9X12. Package STD Except Europe

Front Tire Maxxis 27X9X12. Package STD Except Europe
31

705401385 Front Tire Maxxis 27X9X12. Package DPS Except Europe

Front Tire Maxxis 27X9X12. Package DPS Except Europe
31

705401385 Front Tire Maxxis 27X9X12. Package XC - XXC Except Europe

Front Tire Maxxis 27X9X12. Package XC - XXC Except Europe
31

705401046 Front Tire. Package Maverick XDS Europe

Front Tire. Package Maverick XDS Europe
31

705401386 Front Tire. Europe Model Except P-XDS

Front Tire. Europe Model Except P-XDS
31

705401501 Front Tire. Package XMR

Front Tire. Package XMR
31

705401592 Front Tire. Package XDSDPS, XDSSTD, XDSXRS

Front Tire. Package XDSDPS, XDSSTD, XDSXRS
32

705401495 Drive Axle Ass'y. MAX Model

Drive Axle Ass'y. MAX Model
33

705401548 LH Front Knuckle

LH Front Knuckle
34

705401549 RH Front Knuckle

RH Front Knuckle
36

705401600 Support

Support
37

705401601 Screw

Screw
38

705401602 Screw

Screw
39

705401603 Nut

Nut
40

705401604 Shim

Shim
41

705401605 Ball Bearing

Ball Bearing
42

705401606 Ball Bearing

Ball Bearing
43

705401607 Needle Bearing

Needle Bearing
44

705401608 Ball Bearing

Ball Bearing
45

705401610 Front Cover

Front Cover
46

705401612 Gear 36 Teeth

Gear 36 Teeth
47

705401613 Vent Valve

Vent Valve
48

705401506 Differential. Except Package STD - XDS

Differential. Except Package STD - XDS
48

705401614 Differential. Package STD - XDS

Differential. Package STD - XDS
49

705401615 Oil Seal

Oil Seal
50

705401616 Seal

Seal
51

705401617 O'Ring

O'Ring
52

705401618 Gasket

Gasket
53

705401646 Ball Bearing. MAX Model

Ball Bearing. MAX Model
54

705500504 Fill Level Plug

Fill Level Plug
55

705500506 Copper Washer

Copper Washer
56

705501385 1/2 OZ Weight

1/2 OZ Weight
57

705501885 Drain Plug

Drain Plug
58

705501900 Wheel Hub

Wheel Hub
59

715900116 Fixed Yoke Joint

Fixed Yoke Joint
60

703500814 Unit Pack Kit

Unit Pack Kit
60

715900183 U-Joint

U-Joint
61

715900231 Yoke Joint

Yoke Joint
62

703500813 Grease Fitting

Grease Fitting
62

715900483 Cover

Cover
62

703500815 Grease Fitting. MAX Model

Grease Fitting. MAX Model
63

715900117 Snap Ring

Snap Ring
65

703500899 Front Differential Ass'y. Package STD - XDS

Front Differential Ass'y. Package STD - XDS
65

703500900 Front Differential Ass'y. Except Package STD - XDS

Front Differential Ass'y. Except Package STD - XDS
66

705401791 Pinion 10 Teeth

Pinion 10 Teeth
67

705401348 RH Plunging Joint

RH Plunging Joint
67

705401350 LH Plunging Joint

LH Plunging Joint
68

715900260 Oetiker Clamp, Large. Package XMR

Oetiker Clamp, Large. Package XMR
68

715900282 Oetiker Clamp, Large. Except Package XMR

Oetiker Clamp, Large. Except Package XMR
69

715900261 Oetiker Clamp, Small. Package XMR

Oetiker Clamp, Small. Package XMR
69

715900283 Oetiker Clamp, Small. Except Package XMR

Oetiker Clamp, Small. Except Package XMR
70

705401345 Boot Kit, Wheel Side. Except Package XMR

Boot Kit, Wheel Side. Except Package XMR
70

705401354 Boot Kit, Wheel Side. Package XMR

Boot Kit, Wheel Side. Package XMR
70

705401346 Boot Kit, Differential Side. Except Package XMR

Boot Kit, Differential Side. Except Package XMR
70

705401355 Boot Kit, Differential Side. Package XMR

Boot Kit, Differential Side. Package XMR
71

705401344 CV Joint. Except Package XMR

CV Joint. Except Package XMR
71

705401407 CV Joint. Package XMR

CV Joint. Package XMR
72

250300051 Wheel Stud

Wheel Stud
73

415080200 Hose, Polyurethane

Hose, Polyurethane
74

705401417 Black Front Rim. Package STD

Black Front Rim. Package STD
74

705401417 Black Front Rim. Package DPS

Black Front Rim. Package DPS
74

705401417 Black Front Rim. Package XDS - XC

Black Front Rim. Package XDS - XC
74

705401552 Matte Black Rim. Package XMR

Matte Black Rim. Package XMR
74

705401594 Black Front Rim. Package XDSDPS - XDSXRS

Black Front Rim. Package XDSDPS - XDSXRS
74

705401678 Black Front Rim. Package XXC

Black Front Rim. Package XXC
74

705401564 Black Front Rim. Package XDSSTD

Black Front Rim. Package XDSSTD
75

250000787 Hex. Flanged Screw M6 X 25. Package XXC

Hex. Flanged Screw M6 X 25. Package XXC
75

250000787 Hex. Flanged Screw M6 X 25. Package XDSDPS

Hex. Flanged Screw M6 X 25. Package XDSDPS
90

705400193 Rim Valve With Cap

Rim Valve With Cap
91

705401586 Manta Green- Painted Reinforcement Disk. Package XDSDPS Black Carbon

Manta Green- Painted Reinforcement Disk. Package XDSDPS Black Carbon
91

705401586 Manta Green- Painted Reinforcement Disk. Package XDSDPS Quarry Gray

Manta Green- Painted Reinforcement Disk. Package XDSDPS Quarry Gray
91

705401586 Manta Green- Painted Reinforcement Disk. Package XDSDPS Black

Manta Green- Painted Reinforcement Disk. Package XDSDPS Black
91

705401695 Blue Painted Reinforcement Disk. Package XXC Quarry Gray

Blue Painted Reinforcement Disk. Package XXC Quarry Gray
91

705401702 Blue Painted Reinforcement Disk. Package XDSDPS Black

Blue Painted Reinforcement Disk. Package XDSDPS Black
91

705401702 Blue Painted Reinforcement Disk. Package XDSDPS Silver

Blue Painted Reinforcement Disk. Package XDSDPS Silver
91

705401816 Red Painted Reinforcement Disk. Package XXC White

Red Painted Reinforcement Disk. Package XXC White
91

705401837 Red Painted Reinforcement Disk. Package XDSXRS Black Carbon

Red Painted Reinforcement Disk. Package XDSXRS Black Carbon
75a

293450317 Insert. Package XXC

Insert. Package XXC
75a

293450317 Insert. Package XDSDPS

Insert. Package XDSDPS
67a

705401349 Circlip Joint

Circlip Joint
48a

705401769 Shim

Shim
49a

705401770 Shim

Shim
