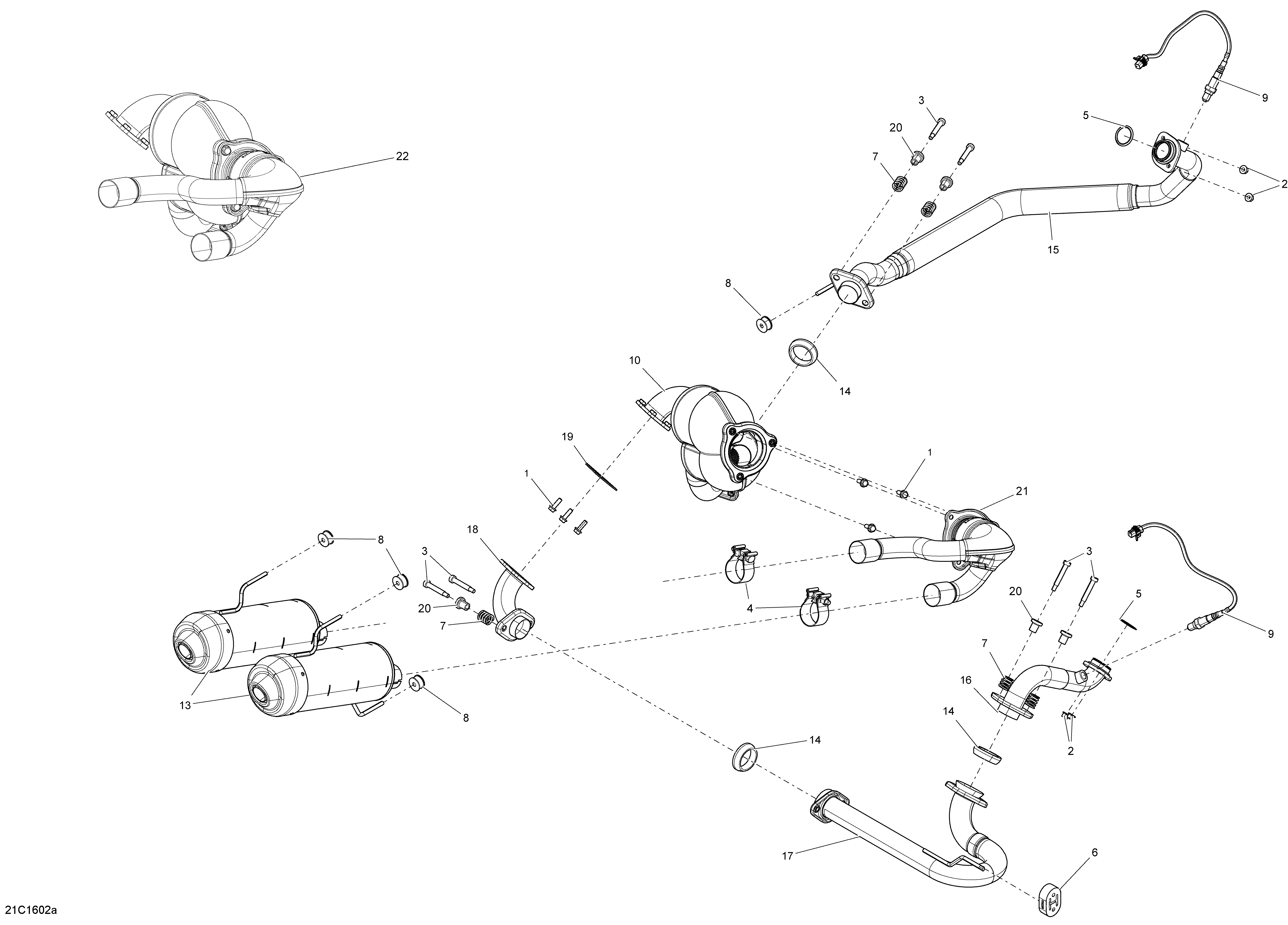

01- Exhaust System для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3250000658 Socket Head Screw M10 X 50Socket Head Screw M10 X 50
-
4293650231 Gear ClampGear Clamp
-
5707600317 GasketGasket
-
6707600638 Rubber BumperRubber Bumper
-
7707600682 SpringSpring
-
8707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
9707600872 Oxygen SensorOxygen Sensor
-
13707601038 MufflerMuffler
-
14707601128 SealSeal
-
15707601210 Front Head PipeFront Head Pipe
-
16707601213 Rear Head PipeRear Head Pipe
-
17707601214 Head PipeHead Pipe
-
18707601232 Head PipeHead Pipe
-
19707601244 SealSeal
-
20707601254 BushingBushing
-
22707601611 Resonator Shell. Europe ModelResonator Shell. Europe Model
-
22707601760 Resonator Shell. Except Europe ModelResonator Shell. Except Europe Model
