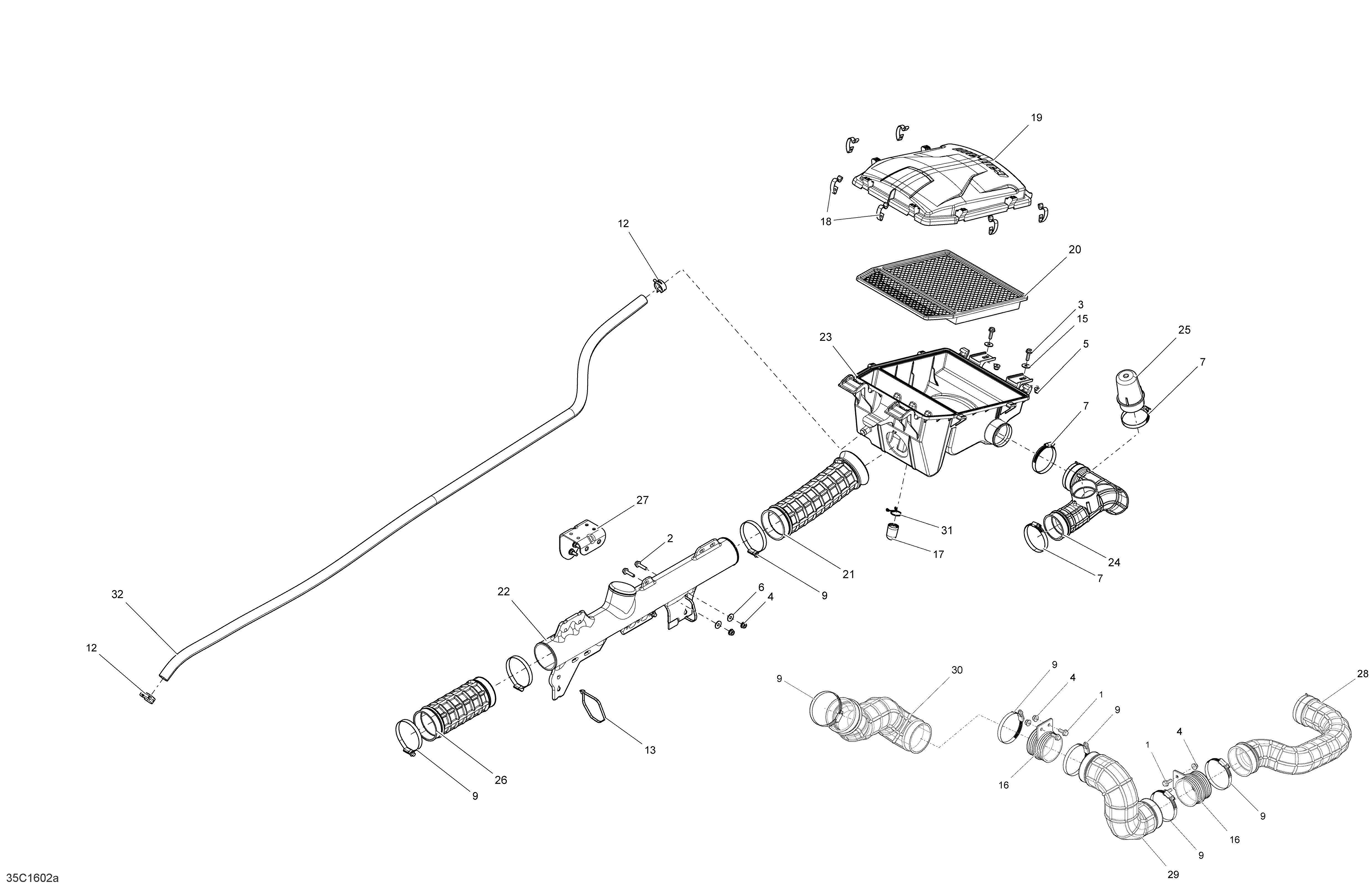

02- Air Intake для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. XMR ModelHex. Flanged Screw M6 X 16, Scotch Grip. XMR Model
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch Grip. MAX ModelHex. Flanged Screw M6 X 25, Scotch Grip. MAX Model
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233061414 Hex. Flanged Nut M6. XMR-MAX ModelHex. Flanged Nut M6. XMR-MAX Model
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234062410 Flat Washer 6 mmFlat Washer 6 mm
-
7293650079 Norma ClampNorma Clamp
-
9293650091 Norma ClampNorma Clamp
-
12293650213 Norma Spring ClampNorma Spring Clamp
-
13293750008 Tie-Rap 350 mm. MAX ModelTie-Rap 350 mm. MAX Model
-
15250200082 Flat WasherFlat Washer
-
16707001383 Adaptor. XMR ModelAdaptor. XMR Model
-
17707800080 Drain TubeDrain Tube
-
18707800249 Cover BracketCover Bracket
-
19707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
20707800327 Air FilterAir Filter
-
21707800329 Intake AdaptorIntake Adaptor
-
22707800515 Intake Adaptor. MAX ModelIntake Adaptor. MAX Model
-
23707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
24707800532 Intake Adaptor. Except Model XMRIntake Adaptor. Except Model XMR
-
25707800533 Intake Adaptor Tank. Except Model XMRIntake Adaptor Tank. Except Model XMR
-
26707800541 Intake Adaptor. MAX ModelIntake Adaptor. MAX Model
-
27707800560 Rear Support. MAX ModelRear Support. MAX Model
-
28707800576 Intake Adaptor. XMR ModelIntake Adaptor. XMR Model
-
29707800577 Air Intake. XMR ModelAir Intake. XMR Model
-
30707800578 Air Intake. XMR ModelAir Intake. XMR Model
-
31293650091 Norma ClampNorma Clamp
-
32707800411 Hose 15.88 mmHose 15.88 mm
-
32707800411 Hose 15.88 mm. MAX ModelHose 15.88 mm. MAX Model
