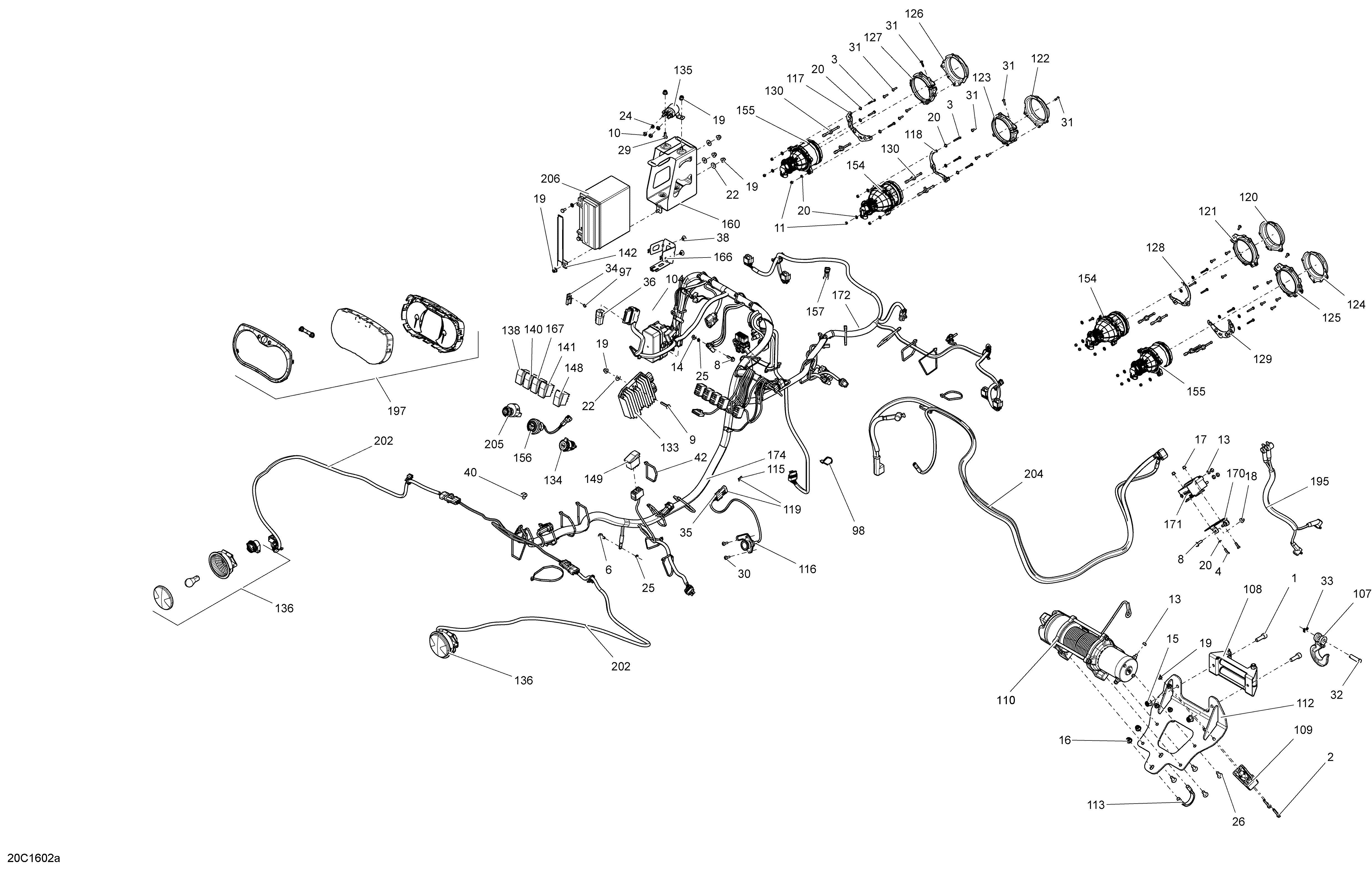

10- Electrical System - Except XDS-XRS для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30. Package XMRSocket Screw M10 x 30. Package XMR
-
2207064044 Hex. Screw M6 X 40. Package XMRHex. Screw M6 X 40. Package XMR
-
3207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
4207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
6207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
7207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
10232061600 Hex. Nut M6Hex. Nut M6
-
11232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
12232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
13232561434 Elastic Stop Nut M6. Package XMRElastic Stop Nut M6. Package XMR
-
14233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
15233201414 Hex. Flanged Elastic Nut M10. Package XMRHex. Flanged Elastic Nut M10. Package XMR
-
16233201464 Hex. Elast. Flanged Nut M10. Package XMRHex. Elast. Flanged Nut M10. Package XMR
-
17233251494 Elastic Flanged Nut M5. Package XMRElastic Flanged Nut M5. Package XMR
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
20234051410 Flat Washer M5Flat Washer M5
-
22234062410 Flat Washer 6 mm. Except MAX ModelFlat Washer 6 mm. Except MAX Model
-
22234062670 Flat Washer, StainlessFlat Washer, Stainless
-
24234161601 Lock Washer Helical M6Lock Washer Helical M6
-
25234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
26235382046 Torx Screw M8 X 20, Scotch Grip. Package XMRTorx Screw M8 X 20, Scotch Grip. Package XMR
-
27250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
29250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
30250000720 Torx Screw K50 X 16. Package XMRTorx Screw K50 X 16. Package XMR
-
31250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
32250400021 Clevis Pin. Package XMRClevis Pin. Package XMR
-
33250400022 Cotter Pin. Package XMRCotter Pin. Package XMR
-
34270000141 ClipClip
-
35278000281 Female Terminal Housing, 3 Circuits. Package XMRFemale Terminal Housing, 3 Circuits. Package XMR
-
36278002704 Diagnostic ConnectorDiagnostic Connector
-
37278003012 Starter Relay. MAX ModelStarter Relay. MAX Model
-
38293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
40293730018 Mount DartMount Dart
-
41293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
42293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
96293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
97390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
98414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
105704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
107705002329 Hook. Package XMRHook. Package XMR
-
108715001119 Winch Cable Guide. Package XMRWinch Cable Guide. Package XMR
-
109705006999 Clamp. Package XMRClamp. Package XMR
-
110705008547 Winch. Package XMRWinch. Package XMR
-
112715001699 Winch Support. Package XMRWinch Support. Package XMR
-
113705203504 U-Bolt M10. Package XMRU-Bolt M10. Package XMR
-
115710000992 Clip. Package XMRClip. Package XMR
-
116710001023 Winch Connector. Package XMRWinch Connector. Package XMR
-
117710001036 LH High Light SupportLH High Light Support
-
118710001037 LH Low Light SupportLH Low Light Support
-
119710001059 Connector Ass'y. Package XMRConnector Ass'y. Package XMR
-
120710001081 RH Low Front HousingRH Low Front Housing
-
121710001082 RH Low Rear HousingRH Low Rear Housing
-
122710001083 LH Low Front HousingLH Low Front Housing
-
123710001084 LH Low Rear HousingLH Low Rear Housing
-
124710001085 RH High Front HousingRH High Front Housing
-
125710001086 RH High Rear HousingRH High Rear Housing
-
126710001087 LH High Front HousingLH High Front Housing
-
127710001088 LH High Rear HousingLH High Rear Housing
-
128710001094 RH Low Light SupportRH Low Light Support
-
129710001115 RH High Light SupportRH High Light Support
-
130710001147 Setting ScrewSetting Screw
-
132710001183 Trim Ring Ass'y. Package STD-DPSTrim Ring Ass'y. Package STD-DPS
-
133710001191 Voltage RegulatorVoltage Regulator
-
134710001248 Outlet DCOutlet DC
-
135710001364 Starter Relay. Except MAX ModelStarter Relay. Except MAX Model
-
136710001645 Tail LightTail Light
-
136a520000758 BulbBulb
-
138710001725 Hi/Low SwitchHi/Low Switch
-
140710001737 SwitchSwitch
-
141710001781 Switch DPS. Package XMR-XXC - XCSwitch DPS. Package XMR-XXC - XC
-
142710001916 Battery HolderBattery Holder
-
143710001999 Plug Carling. Package STD-DPS-XXCPlug Carling. Package STD-DPS-XXC
-
148710002052 Switch. Package XMRSwitch. Package XMR
-
149710002053 Switch, Over RideSwitch, Over Ride
-
154710002524 Low Beam Ass'y. Package XXCLow Beam Ass'y. Package XXC
-
154a415129249 Halogen Bulb. Package XXCHalogen Bulb. Package XXC
-
155710002525 High Beam Ass'yHigh Beam Ass'y
-
155a415129249 Halogen BulbHalogen Bulb
-
156710002594 Engine START ButtonEngine START Button
-
160710003129 Battery Support. Except MAX ModelBattery Support. Except MAX Model
-
166710003335 Fuse HolderFuse Holder
-
167710003541 Switch PPS SportSwitch PPS Sport
-
168710003582 Cap. MAX ModelCap. MAX Model
-
169710003602 Battery Rubber Pad. MAX ModelBattery Rubber Pad. MAX Model
-
170710004119 Solenoids Support. Package XMRSolenoids Support. Package XMR
-
171710004142 Winch Solenoid. Package XMRWinch Solenoid. Package XMR
-
174710005094 Harness Ass'y. Except MAX ModelHarness Ass'y. Except MAX Model
-
192710004384 Positive Cable. Package STD Except MAX ModelPositive Cable. Package STD Except MAX Model
-
194710004383 Positive Cable. Except MAX ModelPositive Cable. Except MAX Model
-
194710004390 Positive Cable. MAX ModelPositive Cable. MAX Model
-
195710004392 Winch Cable. Package XMRWinch Cable. Package XMR
-
196710005024 Multifunction Speedometer. Package STD-DPS - XCMultifunction Speedometer. Package STD-DPS - XC
-
197710004547 Multifunction Speedometer. Package XMR-XXCMultifunction Speedometer. Package XMR-XXC
-
197a415129348 Gauge Ring. Package XMR-XXCGauge Ring. Package XMR-XXC
-
197b415129349 Lens. Package XMR-XXCLens. Package XMR-XXC
-
197c415129355 Speedometer Button. Package XMR-XXCSpeedometer Button. Package XMR-XXC
-
198710004578 Harness Ass'y. MAX ModelHarness Ass'y. MAX Model
-
202710004685 Rear HarnessRear Harness
-
204710004876 Winch Cable (-/+). Package XMRWinch Cable (-/+). Package XMR
-
205710003847 Ignition SwitchIgnition Switch
-
206410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
209710004393 Positive Cable. MAX ModelPositive Cable. MAX Model
-
209710004878 Positive Cable. Package DPS Except MAX ModelPositive Cable. Package DPS Except MAX Model
-
209710004920 Positive Cable. Package DPS MAX ModelPositive Cable. Package DPS MAX Model
-
209710004878 Positive Cable. Package XC - XXCPositive Cable. Package XC - XXC
-
210715900265 Button. Package STD-DPSButton. Package STD-DPS
