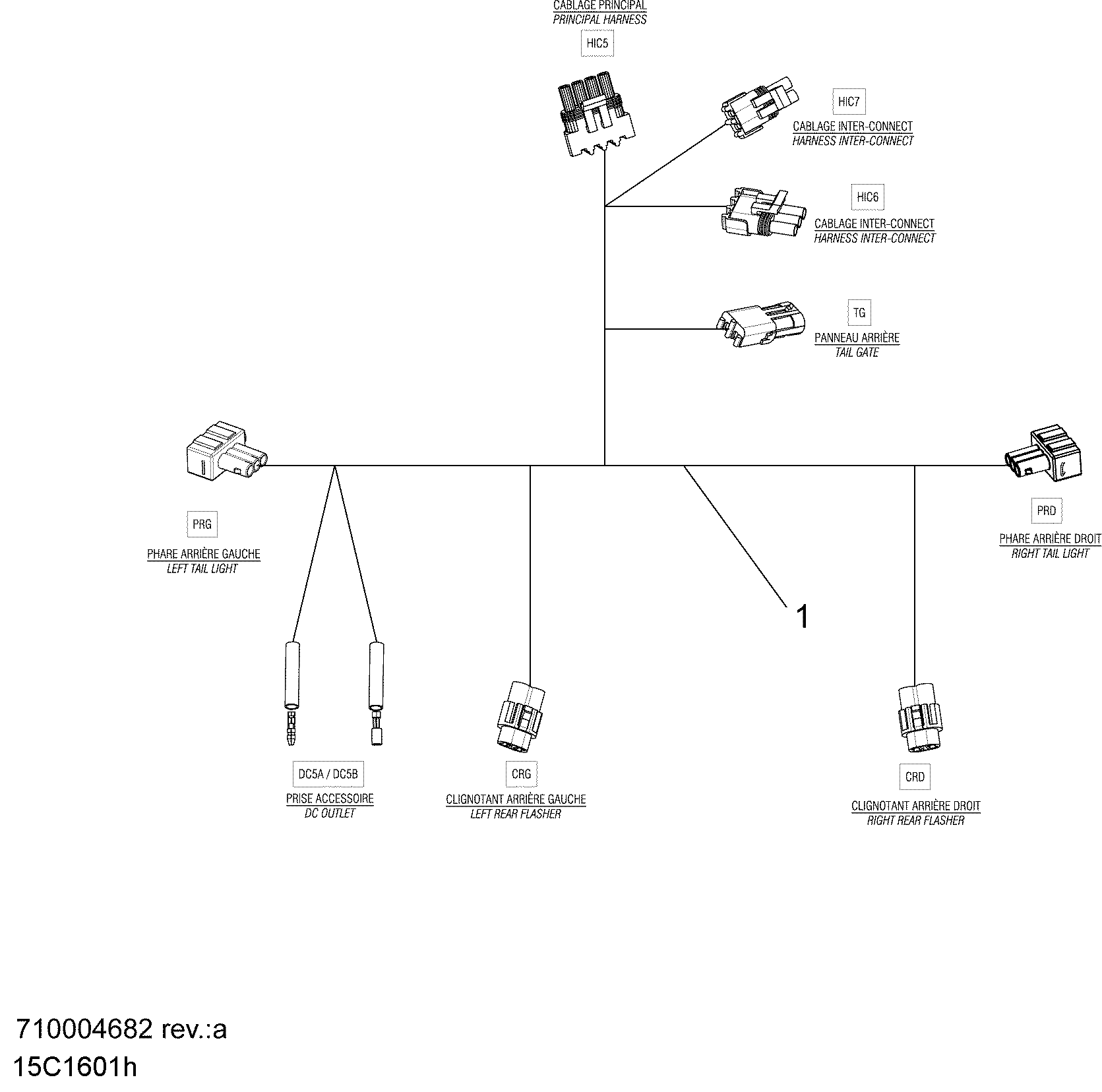

10- Rear Harness - Europe для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1710004682 Rear HarnessRear Harness
-
CRD409012300 SealSeal
-
CRD409012100 Female TerminalFemale Terminal
-
CRG409012300 SealSeal
-
CRG409012100 Female TerminalFemale Terminal
-
DC5A278001008 Insulated SheathInsulated Sheath
-
DC5A278002261 Female TerminalFemale Terminal
-
DC5B293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DC5B278001007 Insulated SheathInsulated Sheath
-
DC5B710000421 Female TerminalFemale Terminal
-
HIC5278000395 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HIC5278001065 Wire SealWire Seal
-
HIC5278000223 Female TerminalFemale Terminal
-
HIC6278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
HIC6278001065 Wire SealWire Seal
-
HIC6278000223 Female TerminalFemale Terminal
-
HIC7278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
HIC7278000218 Wire SealWire Seal
-
HIC7409007300 Female TerminalFemale Terminal
-
PRD710003167 Connector, 3 PositionsConnector, 3 Positions
-
PRD415128501 SealSeal
-
PRD278000998 Female TerminalFemale Terminal
-
PRG710003167 Connector, 3 PositionsConnector, 3 Positions
-
PRG415128501 SealSeal
-
PRG278000998 Female TerminalFemale Terminal
-
TG710002249 ClipClip
-
TG278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
TG278001065 Wire SealWire Seal
-
TG278000222 Male TerminalMale Terminal
