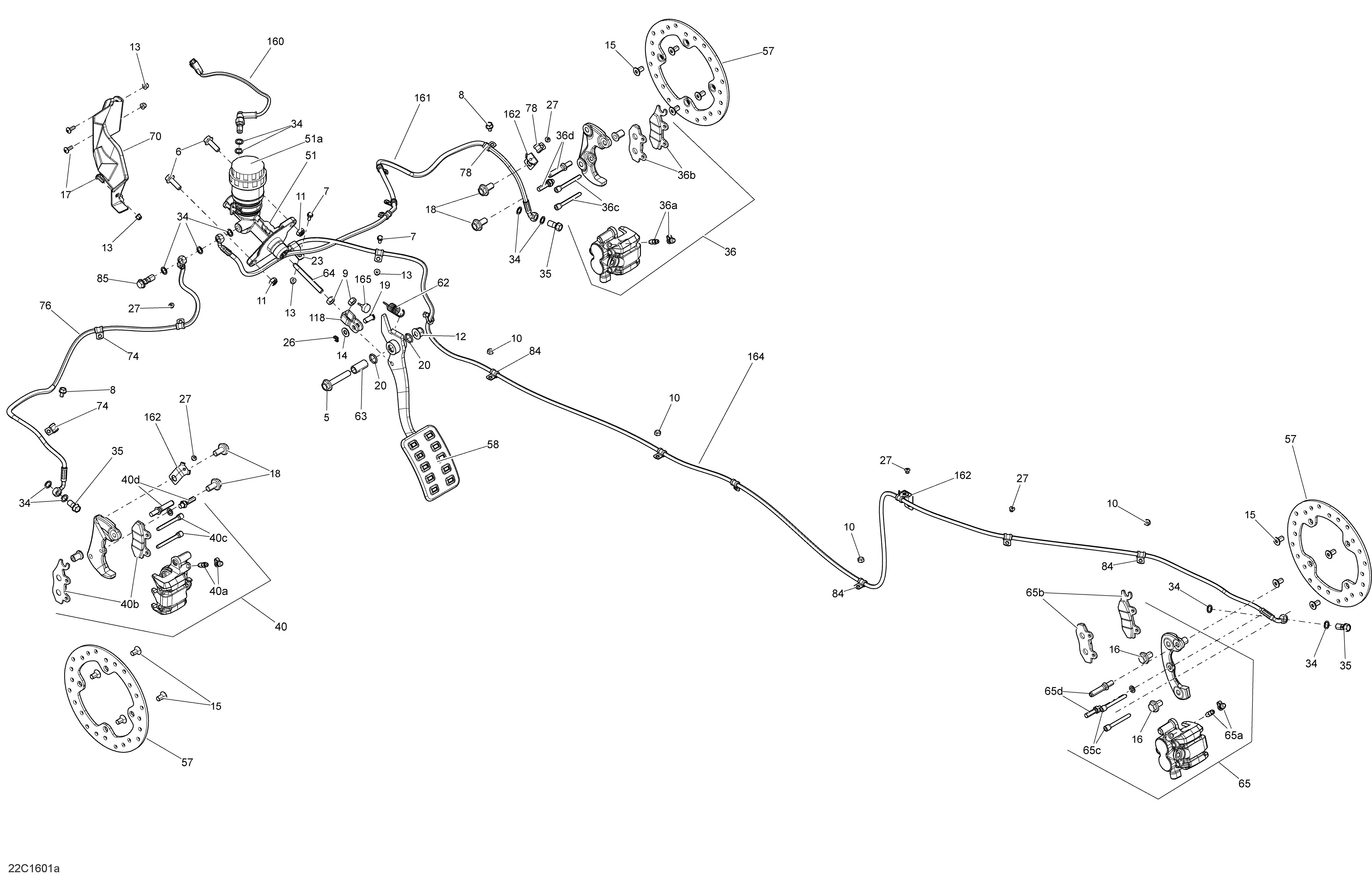

06- Brakes для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
5207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
6207682534 Hex. Flanged ScrewHex. Flanged Screw
-
7210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
8210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
9232081414 Hex. Nut M8Hex. Nut M8
-
10232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
11232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
12233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
13233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
14234081430 Flat Washer M8Flat Washer M8
-
15235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
16250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
17250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
18250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
19250400058 PinPin
-
20293300144 O-RingO-Ring
-
23293650220 ClampClamp
-
26371800700 Cotter PinCotter Pin
-
27390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34705600310 Copper WasherCopper Washer
-
35705600609 Banjo BoltBanjo Bolt
-
36705600678 RH CaliperRH Caliper
-
36a705600080 Bleeding ScrewBleeding Screw
-
36b715500336 Brake Pad KitBrake Pad Kit
-
36c715500337 Pin SetPin Set
-
36d715500383 Spring Boot Bolt KitSpring Boot Bolt Kit
-
40705600679 LH CaliperLH Caliper
-
40a705600080 Bleeding ScrewBleeding Screw
-
40b715500335 Brake Pad KitBrake Pad Kit
-
40c715500337 Pin SetPin Set
-
40d715500383 Spring Boot Bolt KitSpring Boot Bolt Kit
-
51705601505 Master Cylinder Ass'yMaster Cylinder Ass'y
-
51a715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
57705600684 Brake DiscBrake Disc
-
57705600999 Disc Brake. XTP-PackageDisc Brake. XTP-Package
-
58705600724 Brake PedalBrake Pedal
-
62705600792 Brake Pedal SpringBrake Pedal Spring
-
63705600815 Inner SpacerInner Spacer
-
64705600833 Master Cylinder RodMaster Cylinder Rod
-
65705600872 Rear CaliperRear Caliper
-
65a705600080 Bleeding ScrewBleeding Screw
-
65b715500336 Brake Pad KitBrake Pad Kit
-
65c715500337 Pin SetPin Set
-
65d715500383 Spring Boot Bolt KitSpring Boot Bolt Kit
-
70705600917 LH Front DeflectorLH Front Deflector
-
74715900250 Hose ClipHose Clip
-
76705600943 LH Front HoseLH Front Hose
-
78715900250 Hose ClipHose Clip
-
84715900250 Hose ClipHose Clip
-
85705600958 Banjo BoltBanjo Bolt
-
118705601142 YokeYoke
-
160705601250 Brake SwitchBrake Switch
-
161705601265 RH Front HoseRH Front Hose
-
162705601337 BracketBracket
-
164705601391 Rear Flexible Hose Ass'yRear Flexible Hose Ass'y
-
165708000759 Rubber StopperRubber Stopper
