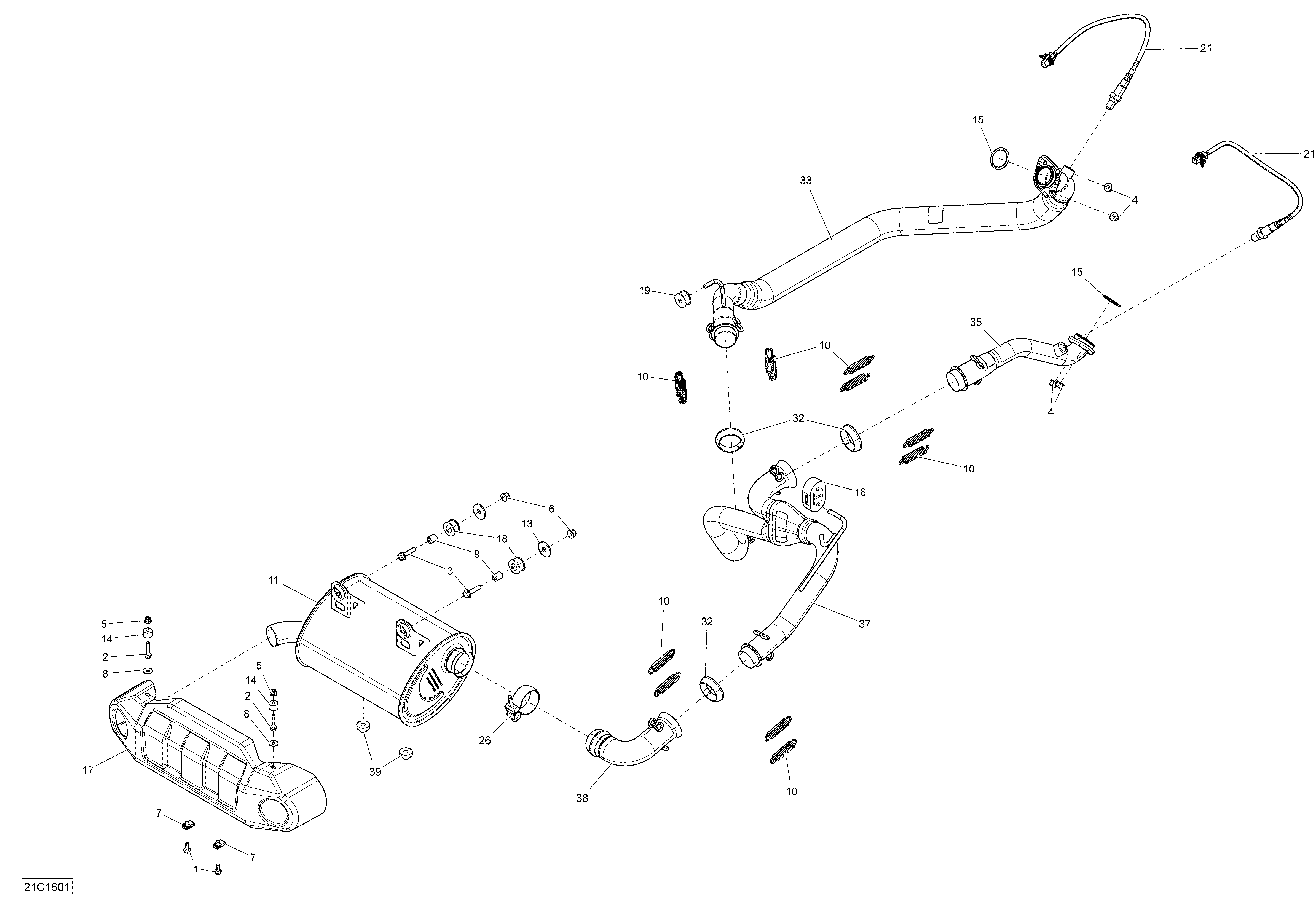

01- Exhaust System для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
3207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
4233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
8250200082 Flat WasherFlat Washer
-
9293900106 BushingBushing
-
10415107100 Spring. Except Europe ModelSpring. Except Europe Model
-
10415107100 Spring. Europe ModelSpring. Europe Model
-
11707601492 Muffler Ass'y. Except Europe ModelMuffler Ass'y. Except Europe Model
-
11707600753 Muffler Ass'y. Europe ModelMuffler Ass'y. Europe Model
-
13503032900 WasherWasher
-
14707000882 BushingBushing
-
15707600317 GasketGasket
-
16707600638 Rubber BumperRubber Bumper
-
17707600675 DeflectorDeflector
-
18707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
19707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
21707600872 Oxygen Sensor. Except Europe ModelOxygen Sensor. Except Europe Model
-
26707600980 Exhaust Clamp. Except Europe ModelExhaust Clamp. Except Europe Model
-
32707601033 Exhaust GasketExhaust Gasket
-
33707601204 Front Head Pipe. Engine 1000 (Except Europe Model)Front Head Pipe. Engine 1000 (Except Europe Model)
-
33707601203 Front Head Pipe. Engine 800 (Except Europe Model)Front Head Pipe. Engine 800 (Except Europe Model)
-
33707601015 Front Head Pipe. Engine 800 Europe ModelFront Head Pipe. Engine 800 Europe Model
-
33707601013 Front Head Pipe. Engine 1000 Europe ModelFront Head Pipe. Engine 1000 Europe Model
-
35707601205 Rear Head Pipe. Engine 800 (Except Europe Model)Rear Head Pipe. Engine 800 (Except Europe Model)
-
35707601018 Rear Head Pipe. Engine 800 Europe ModelRear Head Pipe. Engine 800 Europe Model
-
35707601206 Rear Head Pipe. Engine 1000 (Except Europe Model)Rear Head Pipe. Engine 1000 (Except Europe Model)
-
35707601016 Rear Head Pipe. Engine 1000 Europe ModelRear Head Pipe. Engine 1000 Europe Model
-
37707601207 Link Head Pipe. Except Europe ModelLink Head Pipe. Except Europe Model
-
37707601020 Link Head Pipe. Europe ModelLink Head Pipe. Europe Model
-
38707601327 Link Head Pipe. Except Europe ModelLink Head Pipe. Except Europe Model
-
39709200285 GrommetGrommet
