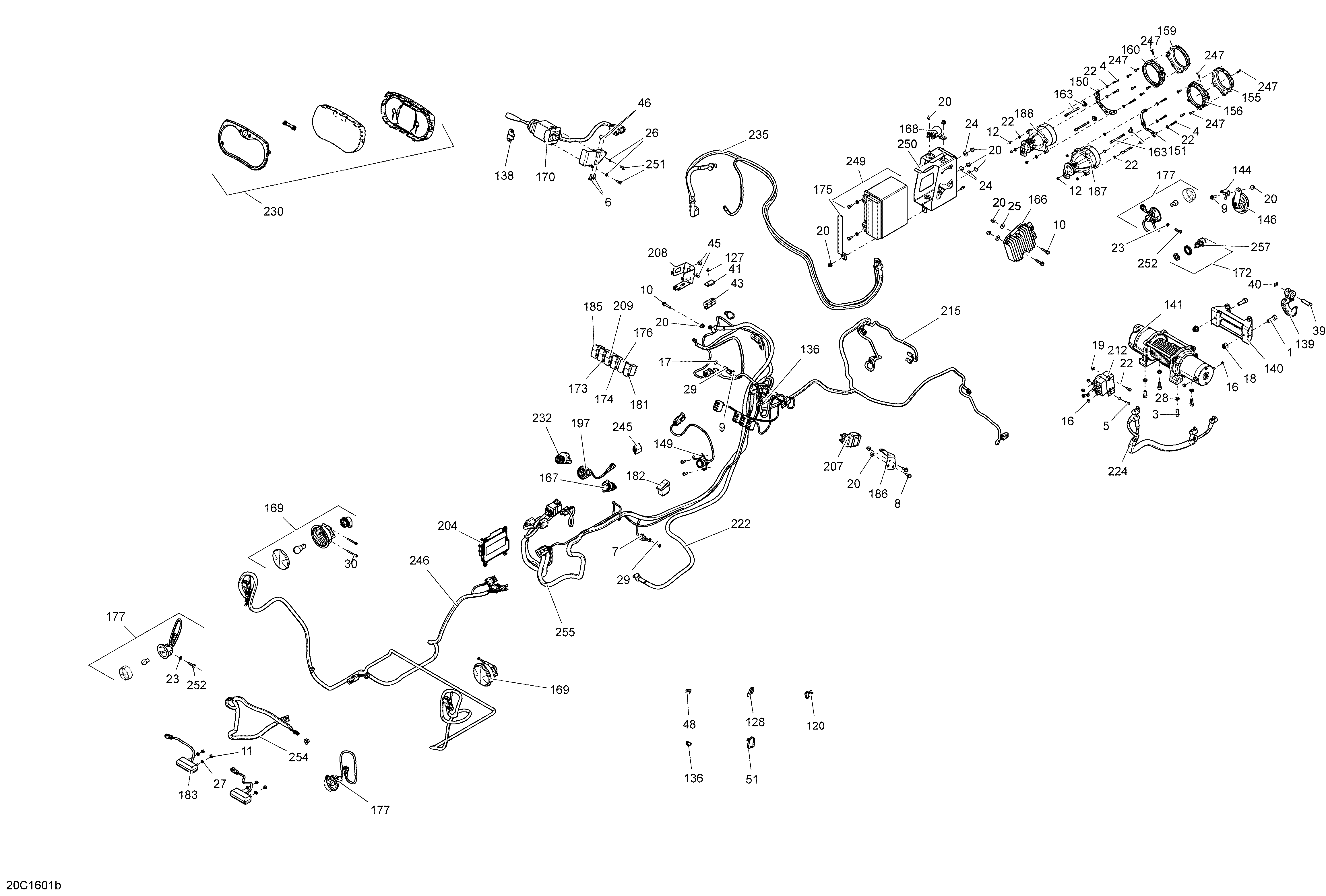

10- Electrical System - XT-XTP для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
3205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
4207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
5207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
6207361644 Hex. Screw M6 X 16, Scotch Grip. Europe ModelHex. Screw M6 X 16, Scotch Grip. Europe Model
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661644 Hex. Flanged Screw M6 X 16. Europe ModelHex. Flanged Screw M6 X 16. Europe Model
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
11232061600 Hex. Nut M6Hex. Nut M6
-
12232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
15232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
16232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
17233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
18233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
19233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22234051410 Flat Washer M5Flat Washer M5
-
23234061410 Flat Washer 6 mm. Europe ModelFlat Washer 6 mm. Europe Model
-
24234062410 Flat Washer 6 mm. Except MAX ModelFlat Washer 6 mm. Except MAX Model
-
25234062670 Flat Washer, StainlessFlat Washer, Stainless
-
26234151401 Lock Washer 5 mm. Europe ModelLock Washer 5 mm. Europe Model
-
27234161601 Lock Washer Helical M6Lock Washer Helical M6
-
28234181401 Lock Washer 8 mmLock Washer 8 mm
-
29234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
30241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
31250000048 Panel Nut M6 X 1.0. MAX ModelPanel Nut M6 X 1.0. MAX Model
-
33250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
39250400021 Clevis PinClevis Pin
-
40250400022 Cotter PinCotter Pin
-
41270000141 ClipClip
-
42278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
43278002704 Diagnostic ConnectorDiagnostic Connector
-
44278003012 Starter Relay. MAX ModelStarter Relay. MAX Model
-
45293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
46293450274 Insert. Europe ModelInsert. Europe Model
-
47293730018 Mount Dart. MAX ModelMount Dart. MAX Model
-
48293730040 Mount DartMount Dart
-
51293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
120293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
127390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
128414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
136414227300 ClipClip
-
138704902614 Flasher Decal. Europe ModelFlasher Decal. Europe Model
-
139705002329 HookHook
-
140715001119 Winch Cable GuideWinch Cable Guide
-
141705008547 WinchWinch
-
144709200284 Support. Europe ModelSupport. Europe Model
-
145709400810 Flasher Arm Support. Europe ModelFlasher Arm Support. Europe Model
-
146710000983 Horn. Europe ModelHorn. Europe Model
-
147710000992 ClipClip
-
149710001023 Winch ConnectorWinch Connector
-
150710001036 LH High Light SupportLH High Light Support
-
151710001037 LH Low Light SupportLH Low Light Support
-
152710001059 Connector Ass'yConnector Ass'y
-
153710001081 RH Low Front HousingRH Low Front Housing
-
154710001082 RH Low Rear HousingRH Low Rear Housing
-
155710001083 LH Low Front HousingLH Low Front Housing
-
156710001084 LH Low Rear HousingLH Low Rear Housing
-
157710001085 RH High Front HousingRH High Front Housing
-
158710001086 RH High Rear HousingRH High Rear Housing
-
159710001087 LH High Front HousingLH High Front Housing
-
160710001088 LH High Rear HousingLH High Rear Housing
-
161710001094 RH Low Light SupportRH Low Light Support
-
162710001115 RH High Light SupportRH High Light Support
-
163710001147 Setting ScrewSetting Screw
-
166710001191 Voltage RegulatorVoltage Regulator
-
167710001248 Outlet DCOutlet DC
-
168710001364 Starter Relay. Except MAX ModelStarter Relay. Except MAX Model
-
169710001645 Tail LightTail Light
-
169a520000758 BulbBulb
-
170710001721 Turn Signal. Europe ModelTurn Signal. Europe Model
-
171710001725 Hi/Low Switch. Except Europe ModelHi/Low Switch. Except Europe Model
-
172710001726 Day Light. Europe ModelDay Light. Europe Model
-
173710001737 SwitchSwitch
-
174710001781 Switch DPSSwitch DPS
-
175710001916 Battery HolderBattery Holder
-
176710001999 Plug CarlingPlug Carling
-
177710002964 Flasher. Europe ModelFlasher. Europe Model
-
181710002052 SwitchSwitch
-
182710002053 Switch, Over RideSwitch, Over Ride
-
183710002055 License Light. Europe ModelLicense Light. Europe Model
-
183a219800128 Bulb. Europe ModelBulb. Europe Model
-
185710002076 Switch. Europe ModelSwitch. Europe Model
-
186710002408 Support. Europe ModelSupport. Europe Model
-
187710002524 Low Beam Ass'yLow Beam Ass'y
-
187a415129249 Halogen BulbHalogen Bulb
-
188710002525 High Beam Ass'yHigh Beam Ass'y
-
188a415129249 Halogen BulbHalogen Bulb
-
197710002594 Engine START ButtonEngine START Button
-
207710003239 Flasher Unit. Europe ModelFlasher Unit. Europe Model
-
208710003335 Fuse HolderFuse Holder
-
209710003541 Switch PPS SportSwitch PPS Sport
-
210710003582 Cap. MAX ModelCap. MAX Model
-
211710003602 Battery Rubber Pad. MAX ModelBattery Rubber Pad. MAX Model
-
212710004142 Winch SolenoidWinch Solenoid
-
215710004579 Harness-Assy.. Except MAX ModelHarness-Assy.. Except MAX Model
-
215710004580 Harness-Assy.. MAX ModelHarness-Assy.. MAX Model
-
215710004336 Harness-Assy.. Europe ModelHarness-Assy.. Europe Model
-
222710004383 Cable-Positive. Except MAX ModelCable-Positive. Except MAX Model
-
223710004918 Negative Cable. MAX Model Package XTNegative Cable. MAX Model Package XT
-
224710004387 Winch CablesWinch Cables
-
225710004390 Cable-Positive. MAX ModelCable-Positive. MAX Model
-
230710004546 Speedometer. Package XT, HunterSpeedometer. Package XT, Hunter
-
230710004546 Speedometer. Package XTPSpeedometer. Package XTP
-
232710003847 Ignition Switch. Except Europe ModelIgnition Switch. Except Europe Model
-
232710004570 Ignition Switch. Europe ModelIgnition Switch. Europe Model
-
235710004576 Cable Neg Pos. Package XT, Hunter Except MAX ModelCable Neg Pos. Package XT, Hunter Except MAX Model
-
235710004918 Cable Neg Pos. MAX Model Package XTCable Neg Pos. MAX Model Package XT
-
235710004576 Cable Neg Pos. Package XTPCable Neg Pos. Package XTP
-
246710004681 Rear Harness. Except Europe ModelRear Harness. Except Europe Model
-
246710004682 Rear Harness. Europe ModelRear Harness. Europe Model
-
247250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
248250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
249410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
250710003129 Battery Support. Except MAX ModelBattery Support. Except MAX Model
-
251210251650 Screw-Forming Hex.Hd.Fl.Bzn M5 X 16. Europe ModelScrew-Forming Hex.Hd.Fl.Bzn M5 X 16. Europe Model
-
252250000758 Torx-Truss M/S M6 X 25. Europe ModelTorx-Truss M/S M6 X 25. Europe Model
-
254710004683 Rear Harness. Europe ModelRear Harness. Europe Model
-
257710003269 Cap Protector. Europe ModelCap Protector. Europe Model
