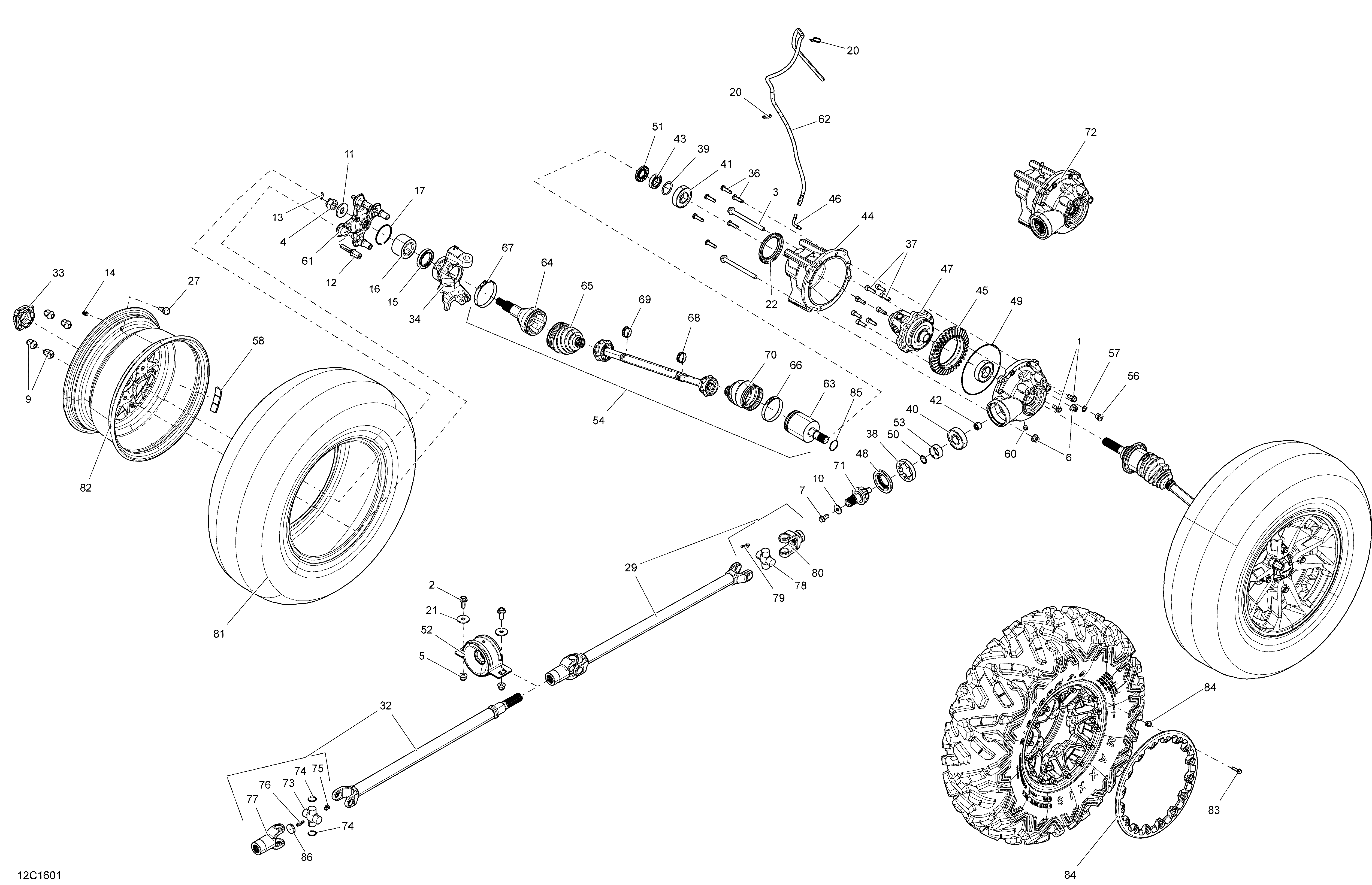

07- Drive System, Front для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
2207602544 Hex. Flanged Screw M10 X 25. MAX ModelHex. Flanged Screw M10 X 25. MAX Model
-
3230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
4250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
5233201414 Hex. Flanged Elastic Nut M10. MAX ModelHex. Flanged Elastic Nut M10. MAX Model
-
6233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
7250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
9250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
9250100082 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
9250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
10250200014 Flat Washer M10Flat Washer M10
-
11250200049 Spring WasherSpring Washer
-
12705400791 Wheel Stud. Commander Model Except Package XTPWheel Stud. Commander Model Except Package XTP
-
12250300051 Wheel Stud. MAX Model - Commander Model Package XTPWheel Stud. MAX Model - Commander Model Package XTP
-
13250400071 Cotter PinCotter Pin
-
14293000110 Valve CapValve Cap
-
15293250246 O-RingO-Ring
-
16293350040 Cone BearingCone Bearing
-
17293370019 CirclipCirclip
-
20293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
21503032900 Washer. MAX ModelWasher. MAX Model
-
22705400780 Wear SleeveWear Sleeve
-
27705400193 Rim Valve With CapRim Valve With Cap
-
29705401239 Axle Drive Ass'yAxle Drive Ass'y
-
32705401495 Drive Axle Ass'y. MAX ModelDrive Axle Ass'y. MAX Model
-
33705400921 Wheel Cap. Package STDWheel Cap. Package STD
-
33705400928 Wheel Cap. Package XTPWheel Cap. Package XTP
-
33705401541 Wheel Cap. Package DPS, XT, Hunter, LTDWheel Cap. Package DPS, XT, Hunter, LTD
-
34705401548 LH Front KnuckleLH Front Knuckle
-
34705401549 RH Front KnuckleRH Front Knuckle
-
36705401601 ScrewScrew
-
37705401602 ScrewScrew
-
38705401603 NutNut
-
39705401604 ShimShim
-
40705401605 Ball BearingBall Bearing
-
41705401606 Ball BearingBall Bearing
-
42705401607 Needle BearingNeedle Bearing
-
43705401608 Ball BearingBall Bearing
-
44705401610 Front CoverFront Cover
-
45705401612 Gear 36 TeethGear 36 Teeth
-
46705401613 Vent ValveVent Valve
-
47705401614 DifferentialDifferential
-
48705401615 Oil SealOil Seal
-
49705401616 SealSeal
-
50705401617 O'RingO'Ring
-
51705401618 GasketGasket
-
52705401646 Ball Bearing. MAX ModelBall Bearing. MAX Model
-
53705400036 Wear RingWear Ring
-
54705401654 RH Half ShaftRH Half Shaft
-
54705401653 LH Half ShaftLH Half Shaft
-
56705500504 Fill Level PlugFill Level Plug
-
57705500506 Copper WasherCopper Washer
-
58705501385 1/2 OZ Weight1/2 OZ Weight
-
60705501885 Drain PlugDrain Plug
-
61705401314 Wheel Hub. Commander Model Except Package XTPWheel Hub. Commander Model Except Package XTP
-
61705501900 Wheel Hub. MAX Model - Commander Model Package XTPWheel Hub. MAX Model - Commander Model Package XTP
-
62415080200 Hose, PolyurethaneHose, Polyurethane
-
63705401348 RH Plunging JointRH Plunging Joint
-
64705401344 CV JointCV Joint
-
65705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
66715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
67715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
68715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
69715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
70705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
71705401791 Pinion 10 TeethPinion 10 Teeth
-
72703500899 Front Differential Ass'y. Package STDFront Differential Ass'y. Package STD
-
72703500900 Front Differential Ass'y. Except Package STDFront Differential Ass'y. Except Package STD
-
73715900183 U-Joint. MAX ModelU-Joint. MAX Model
-
74715900117 Snap Ring. MAX ModelSnap Ring. MAX Model
-
75703500813 Grease Fitting. MAX ModelGrease Fitting. MAX Model
-
76703500815 Grease Fitting. MAX ModelGrease Fitting. MAX Model
-
77715900231 Yoke Joint. MAX Model, Cover 715900483Yoke Joint. MAX Model, Cover 715900483
-
78703500814 Unit Pack KitUnit Pack Kit
-
79703500815 Grease FittingGrease Fitting
-
80715900116 Fixed Yoke JointFixed Yoke Joint
-
81705400781 Front Tire. Package STDFront Tire. Package STD
-
81705401377 Front Tire. Package DPS (Except Europe)Front Tire. Package DPS (Except Europe)
-
81705401377 Front Tire. Package XT (Except Europe)Front Tire. Package XT (Except Europe)
-
81705401377 Front Tire. Package LTDFront Tire. Package LTD
-
81705401377 Front Tire. Package HunterFront Tire. Package Hunter
-
81705401385 Front Tire Maxxis 27X9X12. Package XTPFront Tire Maxxis 27X9X12. Package XTP
-
81705400961 Front Tire. EuropeFront Tire. Europe
-
82705401217 Black Front Rim. Package STDBlack Front Rim. Package STD
-
82705401559 Silver Front Rim. Package DPSSilver Front Rim. Package DPS
-
82705401559 Silver Front Rim. Package XT YellowSilver Front Rim. Package XT Yellow
-
82705401559 Silver Front Rim. Package XT WhiteSilver Front Rim. Package XT White
-
82705401564 Black Front Rim. Package XT CamoBlack Front Rim. Package XT Camo
-
82705401564 Black Front Rim. Package XT Brushed AluminiumBlack Front Rim. Package XT Brushed Aluminium
-
82705401564 Black Front Rim. Package XT BlackBlack Front Rim. Package XT Black
-
82705401678 Black Front Rim. Package XTPBlack Front Rim. Package XTP
-
82705401564 Black Front Rim. Package HunterBlack Front Rim. Package Hunter
-
82705401563 Black Front Rim. Package LTDBlack Front Rim. Package LTD
-
83250000787 Hex. Flanged Screw M6 X 25. Package XTPHex. Flanged Screw M6 X 25. Package XTP
-
84293450317 Insert. Package XTPInsert. Package XTP
-
85705401349 Circlip JointCirclip Joint
-
86715900187 CoverCover
