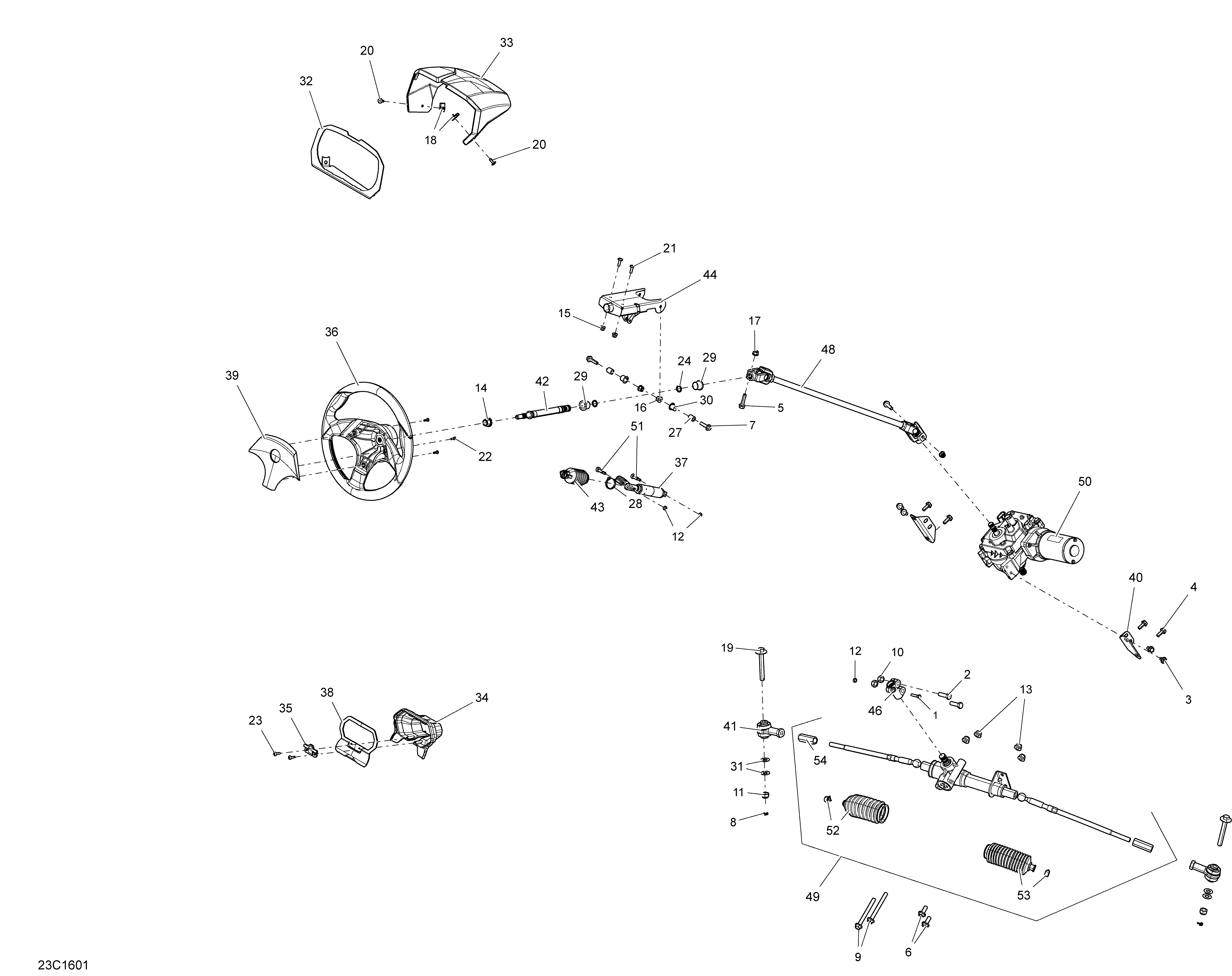

07- Steering для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1207063044 Hex. Screw M6 X 30. Except Package STDHex. Screw M6 X 30. Except Package STD
-
2207103586 Hex. Screw M10 X 35. Except Package STDHex. Screw M10 X 35. Except Package STD
-
3207581644 Hex. Flanged Screw M8 X 16, Scotch Grip. Except Package STDHex. Flanged Screw M8 X 16, Scotch Grip. Except Package STD
-
4207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Except Package STDHex. Flanged Screw M8 X 20, Scotch Grip. Except Package STD
-
5207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
6207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
7207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
8211400017 Cotter PinCotter Pin
-
9230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
10232500416 Elastic Stop Nut M10. Except Package STDElastic Stop Nut M10. Except Package STD
-
11232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
12232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
13233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
14233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
18250000048 Panel Nut M6 X 1.0. Package XT - LTD - XTP - HunterPanel Nut M6 X 1.0. Package XT - LTD - XTP - Hunter
-
19250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
20250000721 Torx Screw. Package XT - LTD - XTP - HunterTorx Screw. Package XT - LTD - XTP - Hunter
-
21250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
22250000723 Phillips Screw K40 X 16. Package STD - DPSPhillips Screw K40 X 16. Package STD - DPS
-
23250000760 Torx Screw Truss Head PT.K50 X 20. Package STD - DPSTorx Screw Truss Head PT.K50 X 20. Package STD - DPS
-
24293300144 O-RingO-Ring
-
27293900106 BushingBushing
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29415108000 CushionCushion
-
30705600799 BushingBushing
-
31250200086 Flat WasherFlat Washer
-
32707900013 Cluster Support. Package XT - LTD - XTP - HunterCluster Support. Package XT - LTD - XTP - Hunter
-
33707900124 Upper Cluster Cover. Package XT - LTD - XTP - HunterUpper Cluster Cover. Package XT - LTD - XTP - Hunter
-
34709400514 Speedometer Cover. Package STD - DPSSpeedometer Cover. Package STD - DPS
-
35709400573 Latch Indicator Cover. Package STD - DPSLatch Indicator Cover. Package STD - DPS
-
36709400650 Steering Wheel. Package STD - DPSSteering Wheel. Package STD - DPS
-
36715001134 Steering Wheel Kit. Package XT - LTD - XTP - HunterSteering Wheel Kit. Package XT - LTD - XTP - Hunter
-
37709400656 Adjustment CylinderAdjustment Cylinder
-
38709400760 Cluster Support. Package STD - DPSCluster Support. Package STD - DPS
-
39709400780 Steering Center. Package STD - DPSSteering Center. Package STD - DPS
-
40709401128 RH DPS Support. Except Package STDRH DPS Support. Except Package STD
-
40709401485 LH DPS Support. Except Package STDLH DPS Support. Except Package STD
-
41709401134 Ball JointBall Joint
-
42709401167 Steering ShaftSteering Shaft
-
43709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
44709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
-
46709401494 Machined Coupling. Except Package STDMachined Coupling. Except Package STD
-
48709401498 Steering Shaft Ass'y. Package STDSteering Shaft Ass'y. Package STD
-
48709401499 Steering Shaft Ass'y. Except Package STDSteering Shaft Ass'y. Except Package STD
-
49709401500 Rack And Pinion SteeringRack And Pinion Steering
-
50709401606 Dynamic Power Steering. Model With DPSDynamic Power Steering. Model With DPS
-
51250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
52715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
53715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
54715900237 Nut Tie Rod EndNut Tie Rod End
