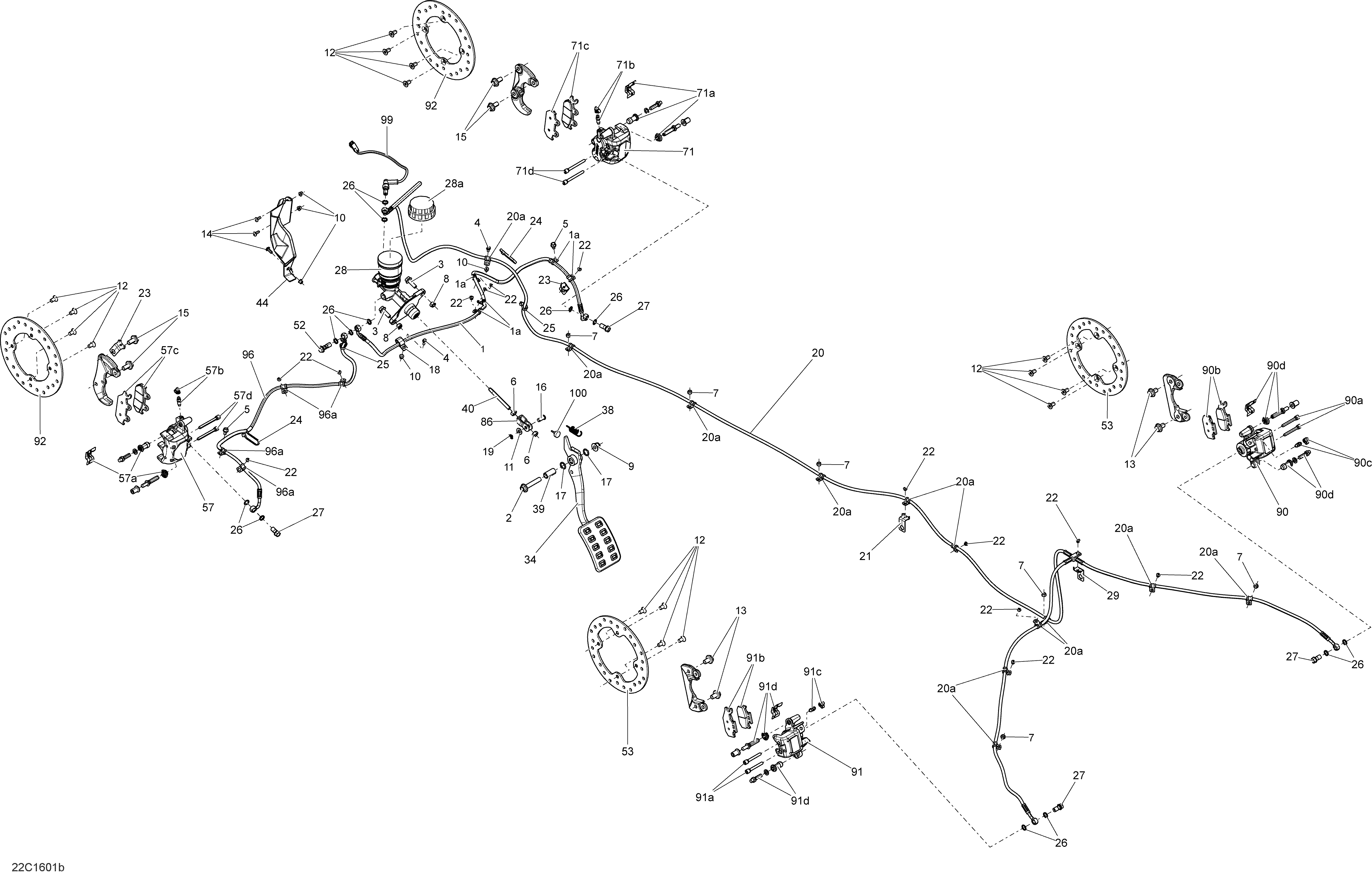

06- Brakes - MAX для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1705601195 RH Front Flexible Hose Ass'y. Includes 1 to 1aRH Front Flexible Hose Ass'y. Includes 1 to 1a
-
1a715900250 Hose ClipHose Clip
-
2207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
3207682534 Hex. Flanged ScrewHex. Flanged Screw
-
4210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
5210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
6232081414 Hex. Nut M8Hex. Nut M8
-
7232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
8232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
9233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
10233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
11234081430 Flat Washer M8Flat Washer M8
-
12235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
13250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
14250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
15250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
16250400058 PinPin
-
17293300144 O-RingO-Ring
-
18293650220 ClampClamp
-
19371800700 Cotter PinCotter Pin
-
20705601173 Rear Flexible Hose Ass'y. Includes 20 to 20aRear Flexible Hose Ass'y. Includes 20 to 20a
-
20a715900250 Hose ClipHose Clip
-
21705601337 BracketBracket
-
22390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
23705601337 BracketBracket
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26705600310 Copper WasherCopper Washer
-
27705600609 Banjo BoltBanjo Bolt
-
28705601505 Master Cylinder Ass'y. Includes 28 to 28aMaster Cylinder Ass'y. Includes 28 to 28a
-
28a715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
29705601337 BracketBracket
-
34705600724 Brake PedalBrake Pedal
-
38705600792 Brake Pedal SpringBrake Pedal Spring
-
39705600815 Inner SpacerInner Spacer
-
40705600833 Master Cylinder RodMaster Cylinder Rod
-
44705600917 LH Front DeflectorLH Front Deflector
-
52705600958 Banjo BoltBanjo Bolt
-
53705600999 Disc BrakeDisc Brake
-
57705601128 LH Caliper Ass'y. Includes 57 to 57dLH Caliper Ass'y. Includes 57 to 57d
-
57a705601148 Boot And Spring KitBoot And Spring Kit
-
57b705600080 Bleeding ScrewBleeding Screw
-
57c705601149 LH Brake Pad KitLH Brake Pad Kit
-
57d705601151 Hanger Pin KitHanger Pin Kit
-
71705601129 RH Caliper Ass'y. Includes 71 to 71dRH Caliper Ass'y. Includes 71 to 71d
-
71a705601148 Boot And Spring KitBoot And Spring Kit
-
71b705600080 Bleeding ScrewBleeding Screw
-
71c705601150 RH Brake Pad KitRH Brake Pad Kit
-
71d705601151 Hanger Pin KitHanger Pin Kit
-
86705601142 YokeYoke
-
90705601174 RH Rear Caliper Ass'y. Includes 90 to 90dRH Rear Caliper Ass'y. Includes 90 to 90d
-
90A705600081 Pin SetPin Set
-
90b705601147 RH Brake Pad KitRH Brake Pad Kit
-
90c705600080 Bleeding ScrewBleeding Screw
-
90d715500384 Spring, Protector And Bolt KitSpring, Protector And Bolt Kit
-
91705601175 LH Rear Caliper Ass'y. Includes 91 to 91dLH Rear Caliper Ass'y. Includes 91 to 91d
-
91A705600081 Pin SetPin Set
-
91b705600398 LH Brake Pad KitLH Brake Pad Kit
-
91c705600080 Bleeding ScrewBleeding Screw
-
91d715500384 Spring, Protector And Bolt KitSpring, Protector And Bolt Kit
-
92705601178 Dics BrakeDics Brake
-
96705601194 LH Front Hose. Includes 96 to 96aLH Front Hose. Includes 96 to 96a
-
96a715900250 Hose ClipHose Clip
-
99705601250 Brake SwitchBrake Switch
-
100708000759 Rubber StopperRubber Stopper
