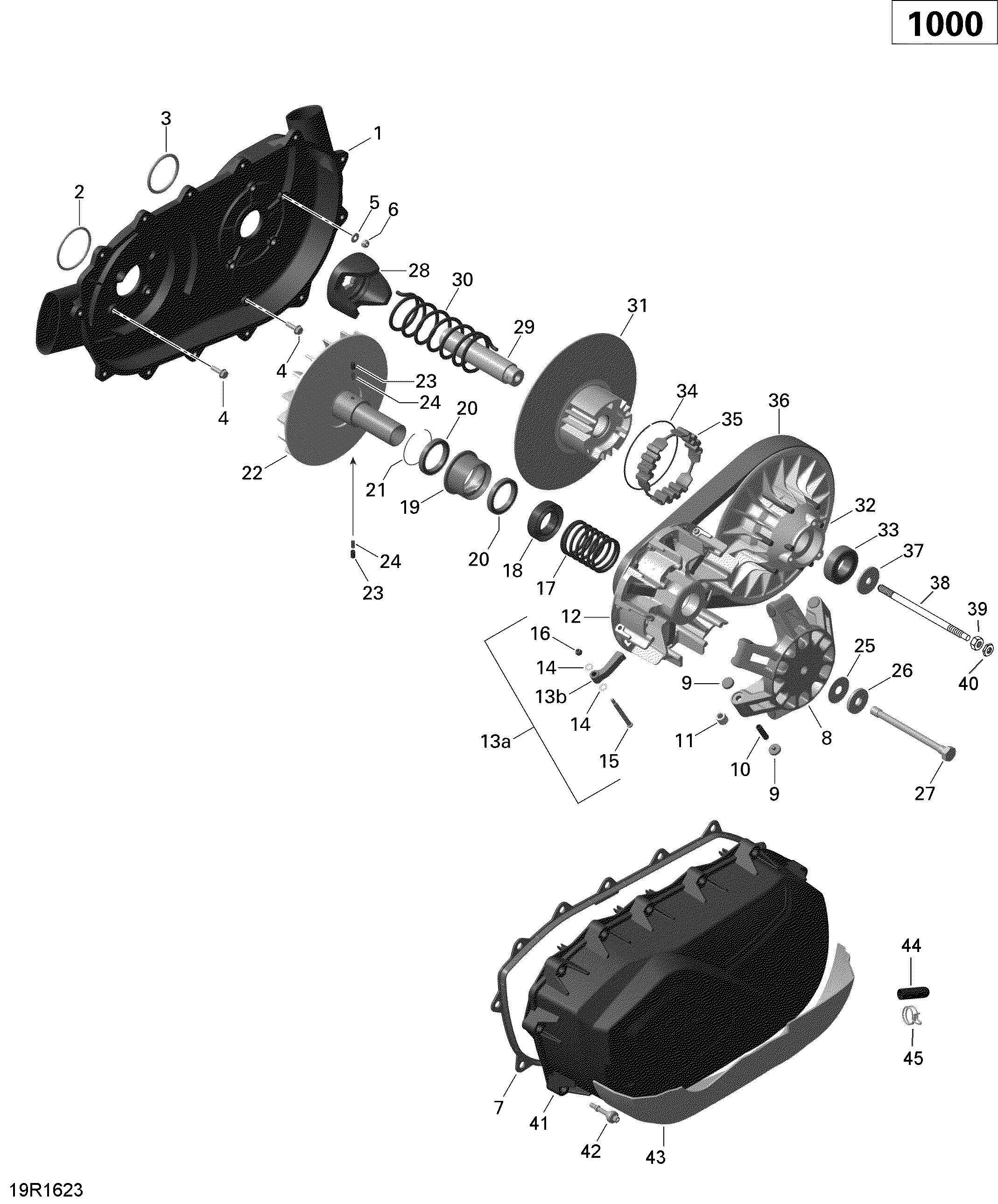

05- Transmission - 1000 EFI для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1420611409 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5224061121 Flat WasherFlat Washer
-
6232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
7420430126 GasketGasket
-
8420280522 Governor Cup Ass'y. Includes 8 to 11Governor Cup Ass'y. Includes 8 to 11
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10417223257 Roller AxleRoller Axle
-
11417223767 RollerRoller
-
12420280467 Outher HaftOuther Haft
-
13a420248496 Centrifugal Lever Kit. Includes 13a to 16Centrifugal Lever Kit. Includes 13a to 16
-
17420238615 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
18420627577 Spring SeatSpring Seat
-
19420257195 Drive Pulley ClutchDrive Pulley Clutch
-
20420632377 Ball BearingBall Bearing
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25420627920 Thrust WasherThrust Washer
-
26420627765 Spring WasherSpring Washer
-
27420641855 Hex. Screw M12 X 135. Except MAX ModelHex. Screw M12 X 135. Except MAX Model
-
27420641859 Hex. Screw M12 X 135. MAX ModelHex. Screw M12 X 135. MAX Model
-
28420280472 CamCam
-
29420220914 Driven Pulley ShaftDriven Pulley Shaft
-
30420638040 Compression SpringCompression Spring
-
31420280499 Inner Half Ass'yInner Half Ass'y
-
32420280178 Outer Half Pulley Ass'y. Includes 32 to 35Outer Half Pulley Ass'y. Includes 32 to 35
-
33420932421 Ball BearingBall Bearing
-
34420245910 Retaining RingRetaining Ring
-
35420660124 Torque GearTorque Gear
-
36715000302 V-BeltV-Belt
-
37420627590 Thrust WasherThrust Washer
-
38420441900 Stud Screw M10 X 136Stud Screw M10 X 136
-
39420242097 Hex. Nut M10. Includes 41Hex. Nut M10. Includes 41
-
40420242402 Hex. Nut M10Hex. Nut M10
-
41420611395 Variator Cover. Except MAX ModelVariator Cover. Except MAX Model
-
41420612318 Variator Cover. MAX ModelVariator Cover. MAX Model
-
42420440567 Hex. Screw M6 X 30.5Hex. Screw M6 X 30.5
-
43420975050 Heat Protection MatHeat Protection Mat
-
46420612472 Variator Cover Ass'y. Except MAX ModelVariator Cover Ass'y. Except MAX Model
