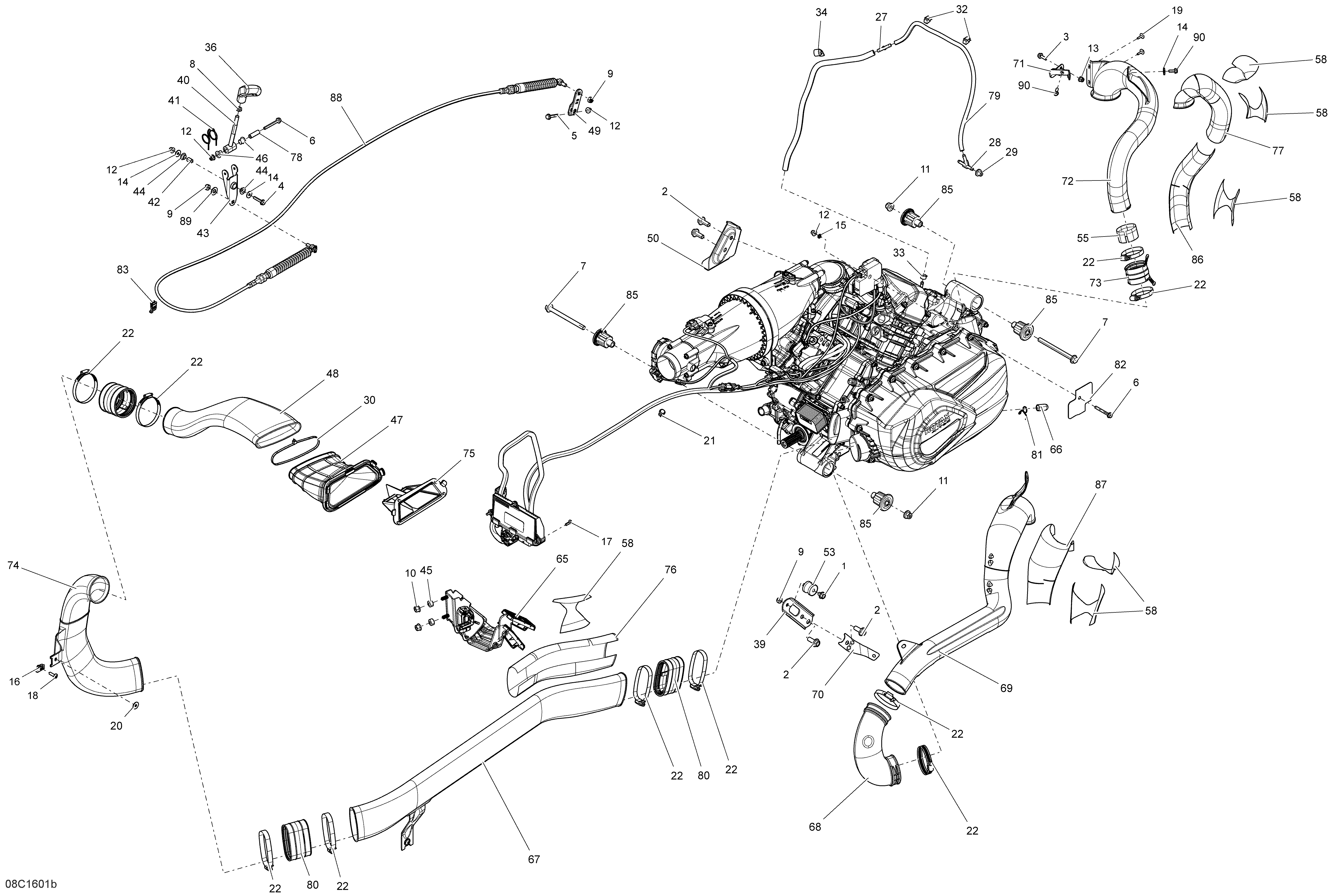

01- Engine and Engine Support - MAX для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
5207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
6207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
6207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
7230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
8232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
9232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
9232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
11233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14234062410 Flat Washer 6 mmFlat Washer 6 mm
-
14234062410 Flat Washer 6 mmFlat Washer 6 mm
-
15234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
18250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
18250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
19250000725 Screw M4 X 16Screw M4 X 16
-
20250200082 Flat WasherFlat Washer
-
20250200082 Flat WasherFlat Washer
-
21293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
22293650091 Norma ClampNorma Clamp
-
22293650091 Norma ClampNorma Clamp
-
22293650091 Norma ClampNorma Clamp
-
22293650118 Norma Gear ClampNorma Gear Clamp
-
22293650118 Norma Gear ClampNorma Gear Clamp
-
27293710039 Straight FittingStraight Fitting
-
28293710059 Y-FittingY-Fitting
-
29293720029 GrommetGrommet
-
30293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32414227300 ClipClip
-
33414415200 Spring ClampSpring Clamp
-
34518321570 Open ClampOpen Clamp
-
36707000284 Lever HandleLever Handle
-
39707000707 Upper Engine BracketUpper Engine Bracket
-
41707000750 Lever Arm SpringLever Arm Spring
-
42707000801 BushingBushing
-
43707000828 Lower Lever ArmLower Lever Arm
-
44707000847 Flanged BushingFlanged Bushing
-
45707000848 BushingBushing
-
46707000869 Flanged BushingFlanged Bushing
-
47707000908 AdaptorAdaptor
-
48707000909 Primary Air IntakePrimary Air Intake
-
49707000911 LeverLever
-
50707000919 Cable Support. Engine 1000Cable Support. Engine 1000
-
50707000921 Cable Support. Engine 800Cable Support. Engine 800
-
53707000949 Rubber IsolatorRubber Isolator
-
55707000988 ReflectorReflector
-
58707000991 Reflective SheetReflective Sheet
-
65707001166 Accelerator PedalAccelerator Pedal
-
66707001185 PlugPlug
-
67707001228 Air InletAir Inlet
-
68707001229 Front AdaptorFront Adaptor
-
69707001230 CVT OutletCVT Outlet
-
70707001231 Front SupportFront Support
-
71707001232 Rear SupportRear Support
-
72707001243 CVT OutletCVT Outlet
-
73707001274 AdaptorAdaptor
-
74707001339 Air InletAir Inlet
-
75707001344 CVT FilterCVT Filter
-
76707001346 ReflectorReflector
-
77707001360 ReflectorReflector
-
78707001376 BushingBushing
-
79415080200 Hose, PolyurethaneHose, Polyurethane
-
79415080200 Hose, PolyurethaneHose, Polyurethane
-
80707001467 Flexible AdaptorFlexible Adaptor
-
80707001467 Flexible AdaptorFlexible Adaptor
-
80707001467 Flexible AdaptorFlexible Adaptor
-
81707800506 Retainer ClipRetainer Clip
-
82710000073 Insulator PadInsulator Pad
-
83710002899 Clip Tie-RapClip Tie-Rap
-
85707001170 Anti Vibration BufferAnti Vibration Buffer
-
86707001284 ReflectorReflector
-
87707001286 ReflectorReflector
-
88707001283 Shifting CableShifting Cable
-
89234001410 Flat Washer 10 mmFlat Washer 10 mm
-
90210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
